Description

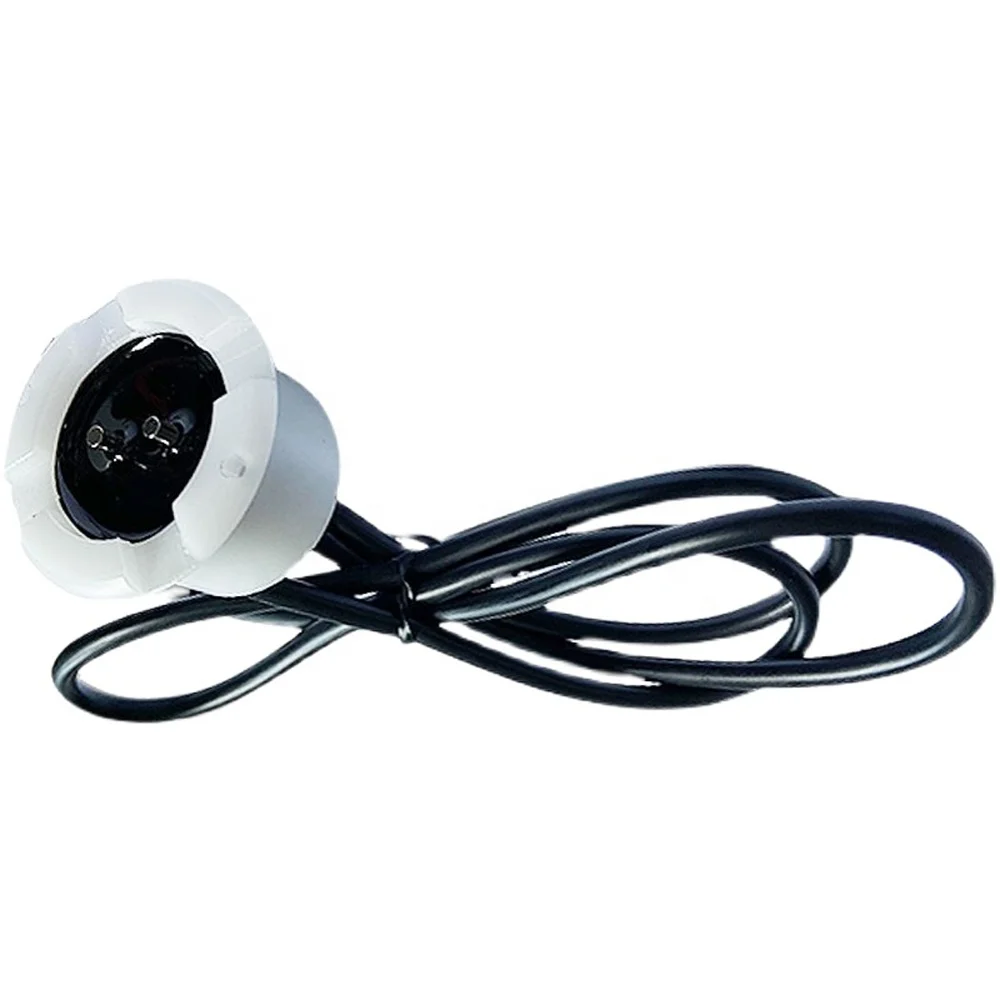

Relay Output Water Leakage Detection Sensor Underground Water Leak Detector Water Pipe Leak Detector Probe
Product Description
Water immersion sensor water level sensor electronic switch alarm base station computer room flooding leaking water sensor liquid level gauge Wired Water Leakage Detector Water Leakage Alarm Normally open normally closed output High and low water level alarm
Specification
item
value
Model Number
Water Immersion Probe
Working voltage
DC 7 to 24V
Relay output
1A Relay NC/NO
Working temperature
-20C to 60C
Working Humdity
100%RH
Size
48*48*30mm
Cable length
1.5m
Static Power consumption
0.008W
Alarm power consumption
MAX 0.2W at 18V
False alarm rate
100PPM
Wires diagram
Red wire: Power+ Black wire: Power- Green line: normally open signal output Blue line: signal common Yellow line: normally closed signal output
