Product Description

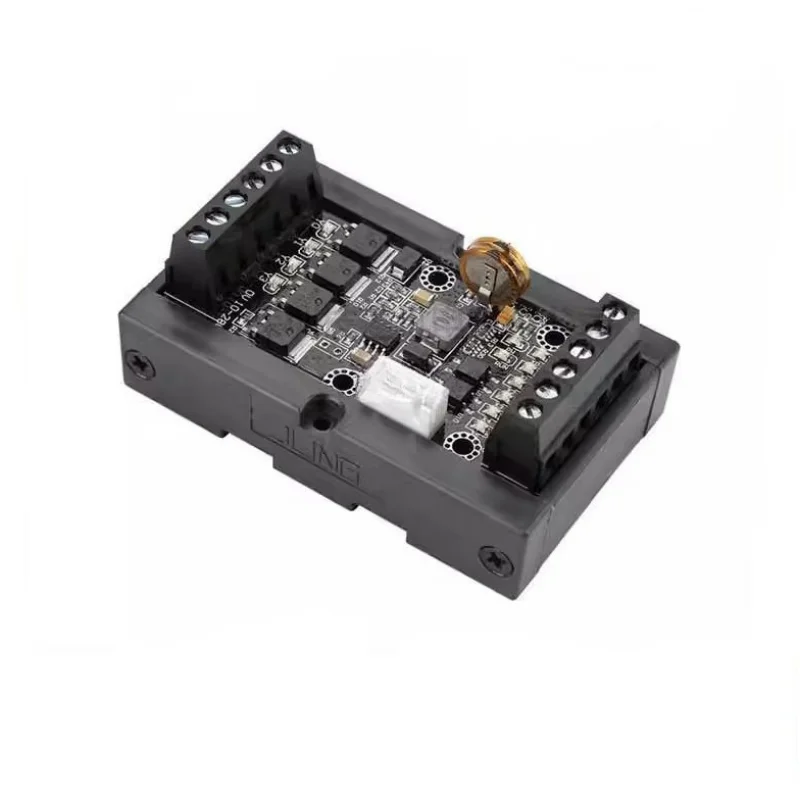

Relay Module PLC Industrial Control Board FX1N-10MT FX1N-10MR Programmable Relay Delay Module with Shell
Product Type :JL1N-10MT(bare board)
Output type: transistor output
Power supply :10V-28V
Overall dimensions:
Bare plate 73*3618mm
With housing 77*48*30mm
Mounting hole size :28*22.5mm fixed with 4 M3 screws
Input :X0-X5 Total 6 points
Output :Y0-Y3 total 4 points
The output current is 300mA for a long time
The output load is connected to DC 12/24V
Product Type :JL1N-10MR(bare board)
Output type: Relay output
Power supply :10V-28V
Overall dimensions:
Bare plate 7346 x 18mm
With housing 77*58*32mm
Mounting hole size :38*22.5mm
Secure with 4 M3 screws
Input :X0-X5 Total 6 points
Output :Y0-Y3 total 4 points
The output load can be connected to DC 12/24V, AC 220V
The company's PLC products use imported industrial 32-bit CPU, compatible with F-X1N series, can download, upload, control, monitoring. It can be flexibly used in various industrial automatic control occasions, such as metallurgy, chemical industry, plastics, textile, food, packaging, printing, building materials, woodworking, central air conditioning, environmental protection equipment and single process control devices in the industry of production machinery, industrial production lines, various machine tools of industrialization control equipment.
Tip: Some customers are slow to download the program, we default the length of the download program is 8000 steps, practical
Most clients write programs that don't take more than 2000 steps, so a simple setup in the programming software can increase download speeds by up to four times
The setting method is as follows: Click the + sign in front of the parameter in the engineering sequence data list, the PLC parameter will appear. Double-click the PLC parameter, the parameter setting interface will appear. In the parameter setting interface, the memory capacity can be set from 8000 to 2000.
