Description
Products Description

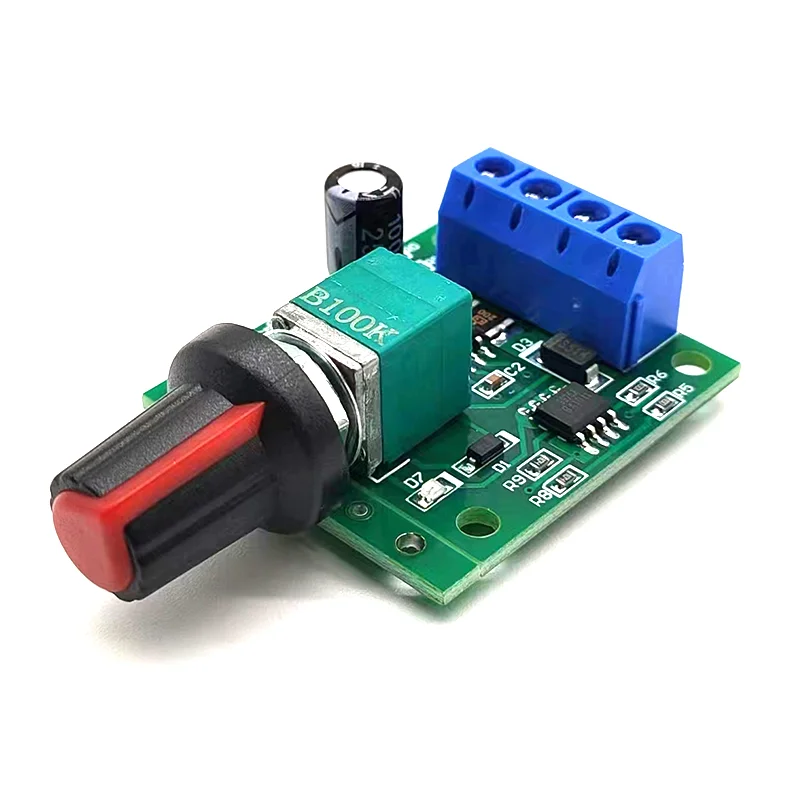

DC 1.8V 3V 5V 6V 12V 2A PWM Motor Speed Controller Low Voltage Motor Speed Control Switch PWM 0-100% Adjustable Drive Module

Features:
This Brand New 1803BK DC Motor Speed Controller allows controlling the direction of a DC the motor using a Pulse-Width-Modulated
(PWM) DC voltage with a Duty Cycle fully the product adjust from 0%-100%.
With a self-recovery fuse 2A and a Power-On LED light.
Enable to provide a continuous current of 2A to your DC motor or other DC load.

Specifications:
Input supply voltage:1.8V-12VDC
The max output power:30W
The max continuous output current :2A
Duty Cycle adjustable: 0%-100%
Size: approx. 32*32*15mm/1.25*1.25*0.59''
Net weight: approx. 15g

Note: DC motor speed regulator DC power supply, do not be directly connected to household 220V AC.

Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.

Package Included:
1PCS x DC Max Output Current 2A Adjustable Voltage 1.8V 3V 5V 6V 12V 2A Low Voltage Motor Speed Controller Board Module
