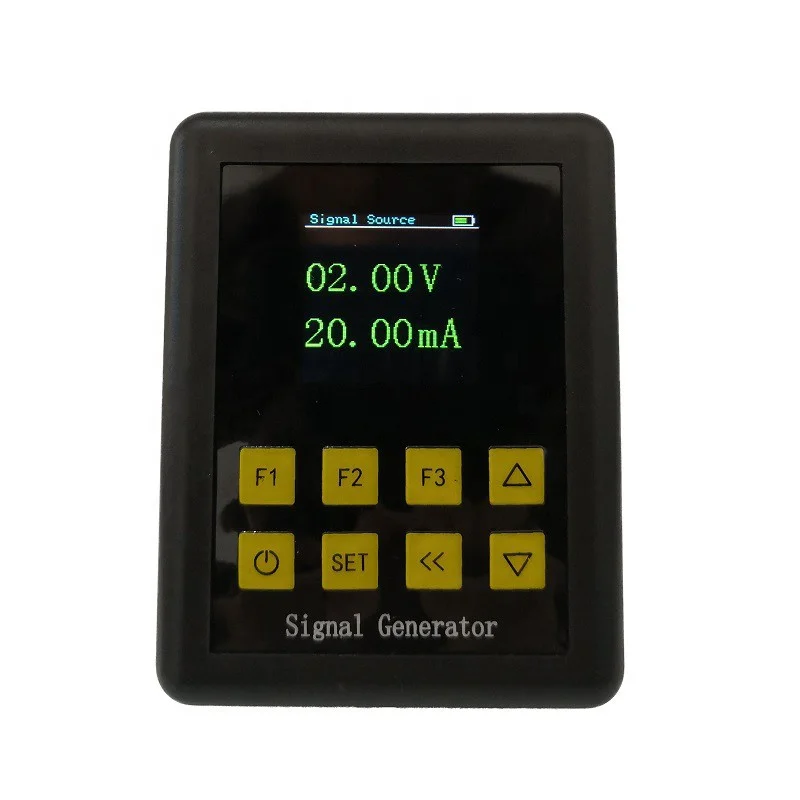

Pulse Signal Generator PWM Rectangular Sine Triangular Wave 2-10V 4 20ma Signal Generator Handheld RF Signal Generator
Product Description
How to set it
Restore factory settings: Turn off the power, press and hold the SET button, while turning on the power, release the SET button after two seconds. PWM mode: Press F1 once to enter, press the SET key to switch and set the voltage, frequency, and duty cycle data in turn (duty cycle can also be adjusted directly without entering the SET mode), press the key << to switch coarse and fine adjustment, press △Adjustable data (long press for fast adjustment), the signal is output in real time during the adjustment process, after adjusting the data, press the SET key to exit, and press the switch to start or stop. Pulse mode PULSE: Press F1 twice to enter, press the SET key to switch in turn to set the voltage, time T0\T1\T2, and the number of pulses, press the key << to switch coarse and fine adjustment, press △ to adjust the data (long press for fast adjustment ), the signal is output in real time during the adjustment process, after adjusting the data, press the SET key to exit, and press the switch to start or pause. Sine wave triangle wave mode: press F2 once to enter the sine wave, press twice to enter the triangle wave, the voltage is adjustable from 1.5-10V, press the SET key to adjust the voltage and frequency, the key << can switch the coarse adjustment and the fine adjustment, and the press △ can adjust the data ( Long press for quick adjustment), after adjusting the data, press the SET key to exit, and press the switch to start or stop. Voltage and current signal source mode: press F3 once to enter, press the SET key to switch and set the voltage and current in turn, and then start to output the signal, press the key << to switch coarse and fine adjustment, press △ to adjust the data (long press for fast adjustment ), the signal is output in real time during the adjustment process, after adjusting the data, press the SET key to exit. (Note: The load cannot be greater than 250R when outputting 0-20mA current source)
Specification
|
item
|
value
|
|
Charging and power supply voltage
|
USB 5V (Built-in battery can work continuously for 8 hours when fully charged, battery capacity is 1000mAh)
|
|
Product functions
|
PWM mode, pulse mode, signal source mode, sine wave mode
|
|
PWM mode
|
voltage, frequency, and duty cycle are all adjustable, with frequency accuracy up to 0.1%; voltage range: 1-24V, frequency range:
1-150KHZ, duty cycle range: 0-100% |
|
Pulse mode
|
initial delay time T0: 0.001-60S, high level time T1: 0.001-60S, low level time T2: 0.001-60S, pulse number P-N:1-99999999
|
|
Signal source mode
|
voltage source 0-10V adjustable, current source 0-20mA adjustable (note: current source load is not more than 250R)
|
|
Sine wave mode
|
adjustable frequency 1-999999HZ, adjustable voltage 1.5-10V (triangular wave is the same)
|
|
Signal load capacity
|
the maximum output current is 20mA (Note: this product is a signal source, and cannot directly drive high-power loads)
|
|
Ambient temperature
|
-10~70℃
|
|
Size
|
92mm in length, 70mm in width and 28mm in height
|
|
Weight
|
105g
|
