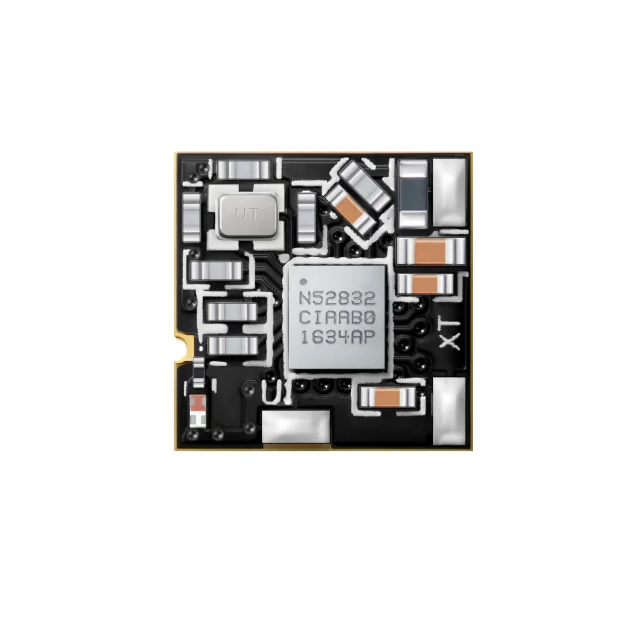

The ultra-low power bluetooth low energy/2.4GHz proprietary multi-protocol modules based on the nRf52832 from Nordic
semiconductor. The module with an ARM® CortexTM M4F 32 bit processor , embedded 2.4GHz transceiver, and integrated antenna,
provide a complete solution with no additional RF design.
Description
Product Description
|
Chipset
|
nRF52832
|
|
Working Frequency
|
BLE/2.4G/Mesh
|
|
Transmit Power
|
4dBm (Maximum)
|
|
Operating Voltage
|
1.7-3.6v
|
|
Operating Temperature
|
-25°C-85°C
|
|
Antenna
|
Built-in PCB Antenna
|
|
Receiving Sensitivity
|
-96dbm (BLE)
|
|
Transmission Distance
|
30m
|
|
Master-Slave Support
|
All Support (No Software by default)
|
|
Module Size
|
9.4*9.3*1.6mm
|
|
Bluetooth Version
|
BLE4.0, BLE4.2,BLE5.0
|
|
Certification
|
FCC/RED
|
Product Feature
|
1
|
System on Module(SOM) base on Nordic nRF52832
|
|
2
|
Bluetooth Low Energy/ANT/2.4GHz Proprietary Multi-protocol support
|
|
3
|
Complete Bluetooth Low Energy stack/profiles solution (Bluetooth 4.x and Higher)
|
|
4
|
ARM Cortex M4F 32 bit processor,512kB flash memory ,64kB RAM
|
|
5
|
11General Purpose I/O ,Configurable mapping Pins ,Simple layout of external application
|
|
6
|
12-bit/200KSPS ADC ,PWM ,SPI Master/Slave(8Mbps)
|
|
7
|
Low power comparator , Temperature sensor,Random Number Generator
|
|
8
|
Two 2-wire Master/Slave (I2 Compatible)Two 2-wire Master/Slave (I2 Compatible)
|
|
9
|
I2S audio interface ,PDM audio interface
|
|
10
|
UART(w/CTS/RTS and DMA)
|
|
11
|
20 channel CPU independent Programmable Peripheral Interconnect(PPI)
|
|
12
|
Quadrature Demodulator(QDEC)
|
|
13
|
128-bit AES HW encryption
|
|
14
|
5×32bit Timer, 3×24bit Real Timer Counters(RTC),Watchdog Timer
|
|
15
|
Internal RC Oscillator 32.768kHz(±250ppm)
|
|
16
|
Over-the-Air(OTA) firmware updates available
|
|
17
|
Ultra small Fingertip-size ,about 9.3mm×9.4mm×1.6mm with Antenna
|
Pin Images
Typical Applications
|
1
|
2.4 GHz Bluetooth low energy systems
|
|
2
|
Proprietary 2.4 GHz systems
|
|
3
|
Sports and leisure equipment
|
|
4
|
Mobile phone accessories
|
|
5
|
Health Care and Medica
|
|
6
|
Consumer Electronics, Game pads
|
|
7
|
Human Interface Devices, Remote control
|
|
8
|
Building environment control / monitoring
|
