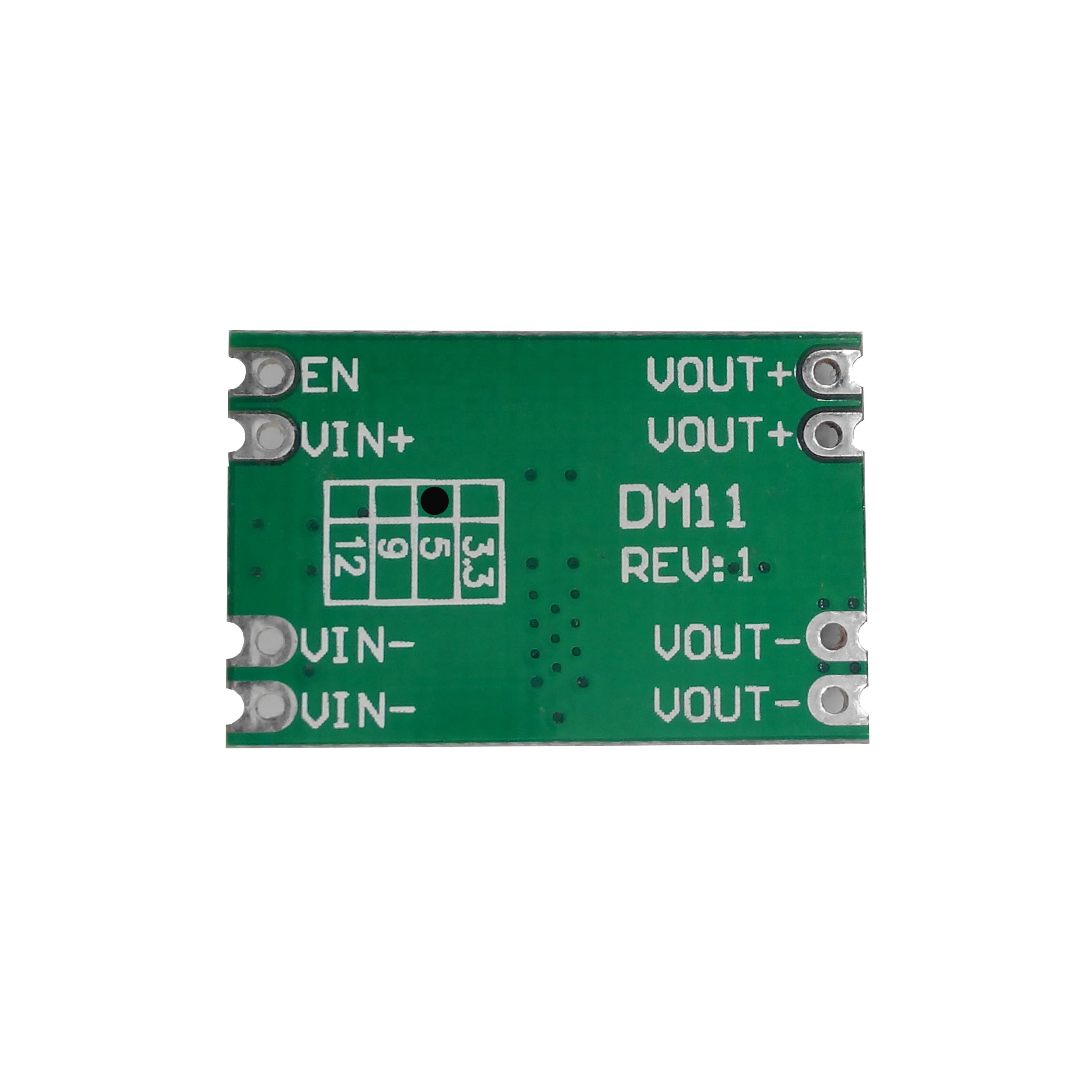

Programmed module 48vdc to 24 volt dc power supply Step Down Converter 36v to 24v dc power supply circuit board--shop.rfid-life.com

power supply circuit board

$4.04
Quantity

Description

Programmed module 48vdc to 24 volt dc power supply 36v to 24v dc power supply circuit board

Description

performance
Input voltage range: 25-55VDC
Output voltage: 24V +/-0.1V
Output current: 1A
Efficiency: 90%
Working frequency: 500KHZ
Standby current: 200uA@8V, 500uA@50V
Module shutdown current consumption: 1uA
Full load ripple: less than 50mV
Full load operating temperature: 65 ° C (max)
Working temperature: -40°C to +85°C
Storage temperature: -55 ° C to +120 ° C
Module size: L25.5*W16.5*H7mm
Module weight: 2.2g
Wiring diagram1 No need to close the module, EN is connected to VIN+, the module is open for a long time.


Wiring diagram 2 Module can be programmed, EN is suspended or grounded, module is closed, power consumption is 1uA; EN is connected to 5-55V, module is open
