Description
Precision Current Type Voltage Transformer ZMPT107 / 101B ZMCT102 / 103/118 Electric Mountable Current Transformers
Product Description
|
Model/item
|
ZMCT118A
|

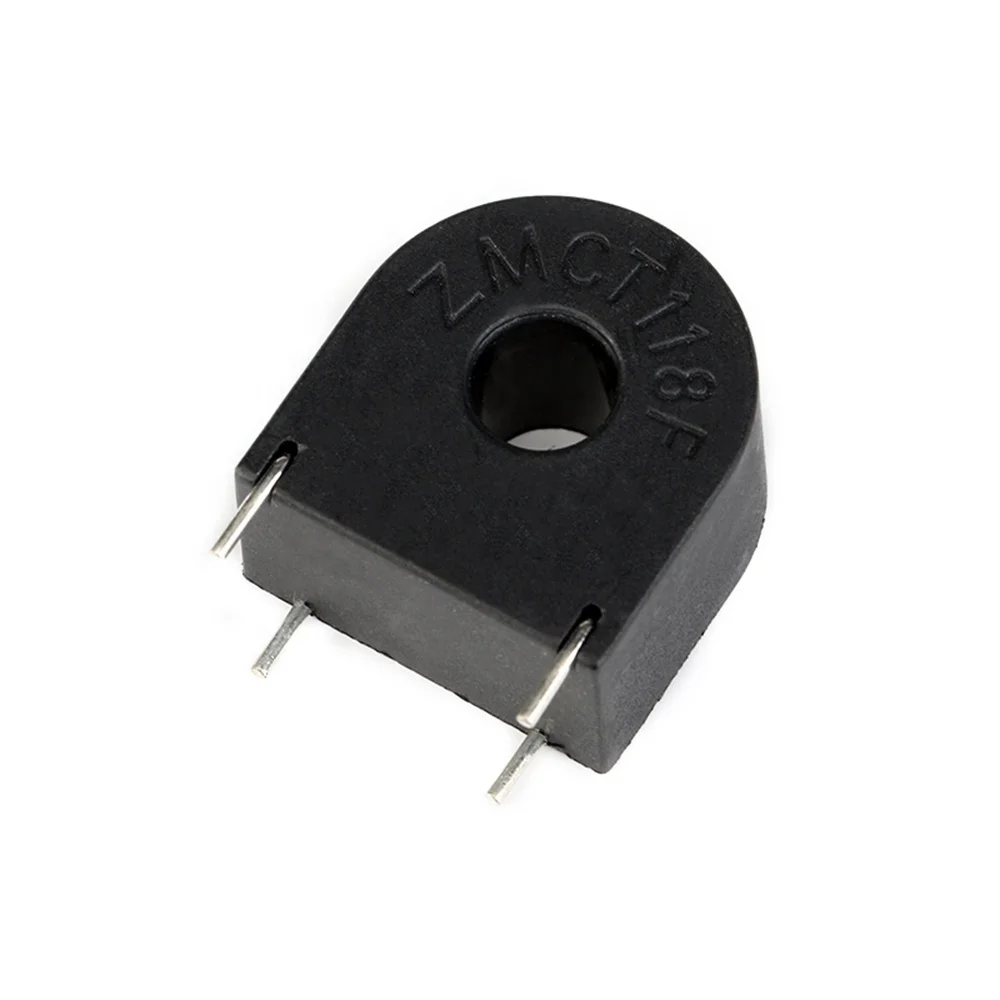

ZMCT118F
|
ZMCT102
|
ZMCT103C
|
ZMPT101B
|
ZMPT107
|
|||||
|
Rated input current
|
5A
|
5A
|
5A
|
5A
|
2mA
|
2mA
|
|||||
|
Rated output current
|
2.5mA
|
5mA
|
2.5mA
|
5mA
|
2mA
|
2mA
|
|||||
|
Transformation ratio
|
2000: 1
|
1000: 1
|
2000：1
|
1000：1
|
1000: 1000
|
1000：1000
|
|||||
|
Phase difference
|
≤15 ’(input is 5A, sampling resistance is 50Ω)
|
No requirement (input is 5A, sampling resistance is 100Ω)
|
≤30 ’(input is 5A, sampling resistance is 50Ω)
|
≤20 ’(input is 2mA, sampling resistance is 100Ω)
|
≤45 '(input is 2mA, sampling resistance is 50Ω)
|
||||||
|
Linear range
|
0 ~ 40A (sampling resistance is 50Ω)
|
0 ~ 30A (sampling resistance is 50Ω)
|
0-20A (sampling resistance is 100Ω)
|
0 ~ 15A (sampling resistance is 50Ω)
|
0 ~ 1000V 0 ~ 10mA (sampling resistance is 100Ω)
|
0 ~ 1000V 0 ~ 10mA (sampling resistance is 50Ω)
|
|||||
|
Linearity
|
≤0.1% (5% points-120% points)
|
≤0.3% (5% points-120% points)
|
≤0.2% (5% point -120% point)
|
≤0.2% (5% point -120% point)
|
≤0.2% (20% point -120% point)
|
≤0.3% (20% point 120% point)
|
|||||
|
Allowable error
|
-0.2% ≤f<+ 0.2% (input is 5A, sampling resistance is 50Ω)
|
-0.3% ≤f<+ 0.3% (input is 5A, sampling resistance is 50Ω)
|
-1% ≤f≤ + 1% (input is 5A, sampling resistance is 100Ω)
|
-0.4% ≤f≤ + 0.4% (input is 5A, sampling resistance is 50Ω)
|
-0.3≤f≤ + 0.2 (input is 2mA, sampling resistance is 100Ω)
|
-0.6% ≤fS + 0% (input is 2mA, sampling resistance is 50Ω)
|
|||||
|
Isolation withstand voltage
|
4500V
|
3000V
|
|||||||||
|
Uses
|
Precision current and power measurement
|
Precision current and power measurement
|
|||||||||
|
Sealing material
|
epoxy
|
||||||||||
|
Installation method
|
Printed board installation (lead length> 3mm)
|
||||||||||
|
Working temperature
|
-40 ℃ + 85 ℃
|
-40℃-+60℃
|
|||||||||
Details Images
