Description

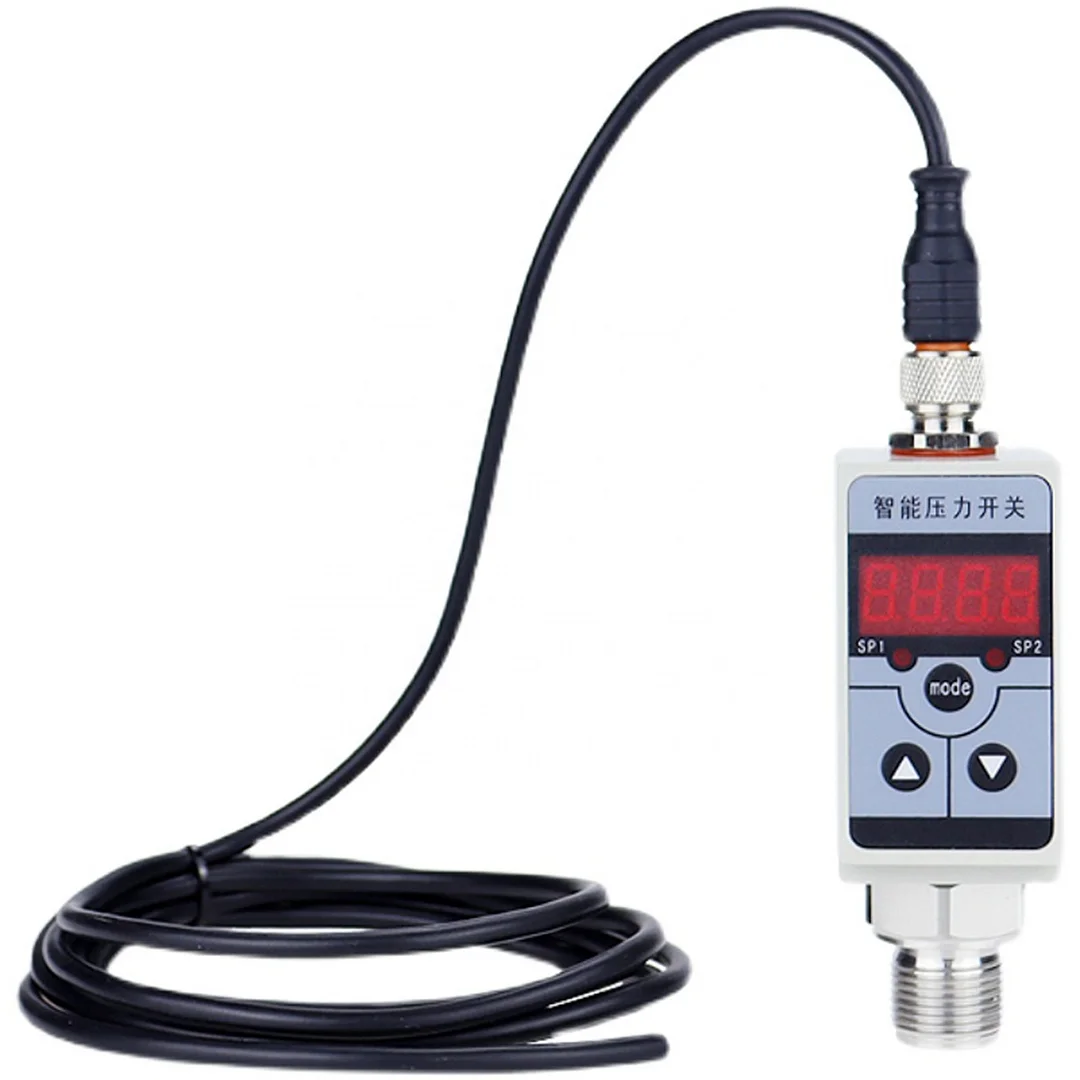

PNP Intelligent Digital Pressure Switch Electronic Hydraulic Gas Oil Water Automatic Pressure Switch Control Controller
Product Description
We have following style can optional, pls contact us
2 way NPN 2 way PNP 2 NPN+4~20MA output 2 channels PNP+4~20MA output
Specification
|
item
|
value
|
|
Product name
|
Intelligent pressure control switch
|
|
Measuring range
|
-100kpa~0~100mpa (optional within the range)
|
|
Output signal
|
NPN/PNP control output can increase 4~20ma
|
|
Installation thread
|
M20*1.5 (default), G1/2, customized
|
|
Power supply
|
12~24V (default)
|
|
Compensation temperature
|
-20~70°C
|
|
Measurement accuracy
|
0.5%FS (default), 0.2%FS, 0.1%FS
|
|
Operating temperature
|
-40~85°℃
|
|
Measuring medium
|
Gas, liquid, water, oil
|
|
Overload pressure
|
150%FS
|
|
Long-term stability
|
±0.2%FS/year
|
Details Images
