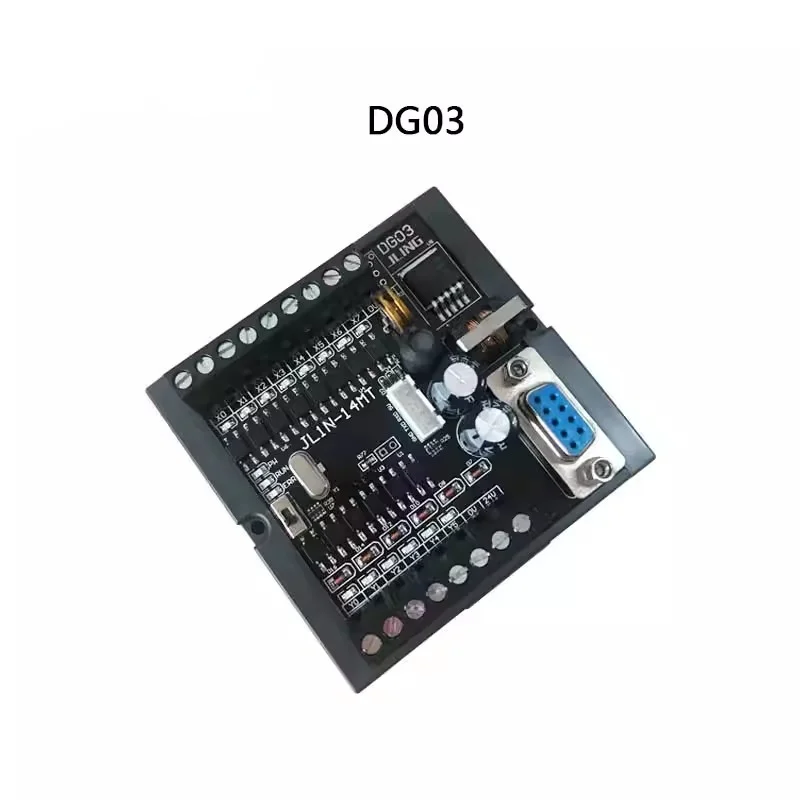

PLC Programmable Logic Controller PLC Regulator DG03 Industrial Control Board Logic Controller
Wide supply voltage 10-28VDC
Dimensions: Length X width X height :66X73X20mm
Note:
When two AD channels are needed, DA can be changed to AD. When D5080 is 1, DA becomes AD. The AD signal is input from the D0UT pin signal
The input range is 0-3.3V, to change to 0-10V, add two resistors (10K.5.1K) to divide the voltage.
In the program to add a statement MOV K1 D5080 can convert DA to AD AD data register D5032
Tip: Some customers are slow to download the program, we default to download the program length of 8000 steps, in fact, most customers write the program will not exceed 2000 steps, so in the GX or WORK2 software set up, you can increase the download speed by 4 times
The setting method is as follows: Click the + sign in front of the parameter in the engineering sequence data list, the PLC parameter will appear. Double-click the PLC parameter, the parameter setting interface will appear. In the parameter setting interface, the memory capacity can be set from 8000 to 2000.
This board is a PLC board, directly using Mitsubishi GX programming software ladder diagram, directly write PLC, can be monitored online
Advantages of using PLC board:
1. Programming is convenient, and customers can learn to program
2. Reusable
3. High stability
4. Easy to expand
Dimensions: Length X width X height :66X73X20mm
Note:
When two AD channels are needed, DA can be changed to AD. When D5080 is 1, DA becomes AD. The AD signal is input from the D0UT pin signal
The input range is 0-3.3V, to change to 0-10V, add two resistors (10K.5.1K) to divide the voltage.
In the program to add a statement MOV K1 D5080 can convert DA to AD AD data register D5032
Tip: Some customers are slow to download the program, we default to download the program length of 8000 steps, in fact, most customers write the program will not exceed 2000 steps, so in the GX or WORK2 software set up, you can increase the download speed by 4 times
The setting method is as follows: Click the + sign in front of the parameter in the engineering sequence data list, the PLC parameter will appear. Double-click the PLC parameter, the parameter setting interface will appear. In the parameter setting interface, the memory capacity can be set from 8000 to 2000.
This board is a PLC board, directly using Mitsubishi GX programming software ladder diagram, directly write PLC, can be monitored online
Advantages of using PLC board:
1. Programming is convenient, and customers can learn to program
2. Reusable
3. High stability
4. Easy to expand
