Description
plc controller potentiometer control 0-5V motor reversing switch PWM DC governor reversible electric motor switch
PWM DC governor PLC 0-5V control 6V 12V 24V reverse switch motor drive module
Speed regulation for potentiometer control 0-5V
PLC control available
Product parameters
| Input voltage | DC6-30V |
| Output voltage | linear under load |
| Output current | 0-6A |

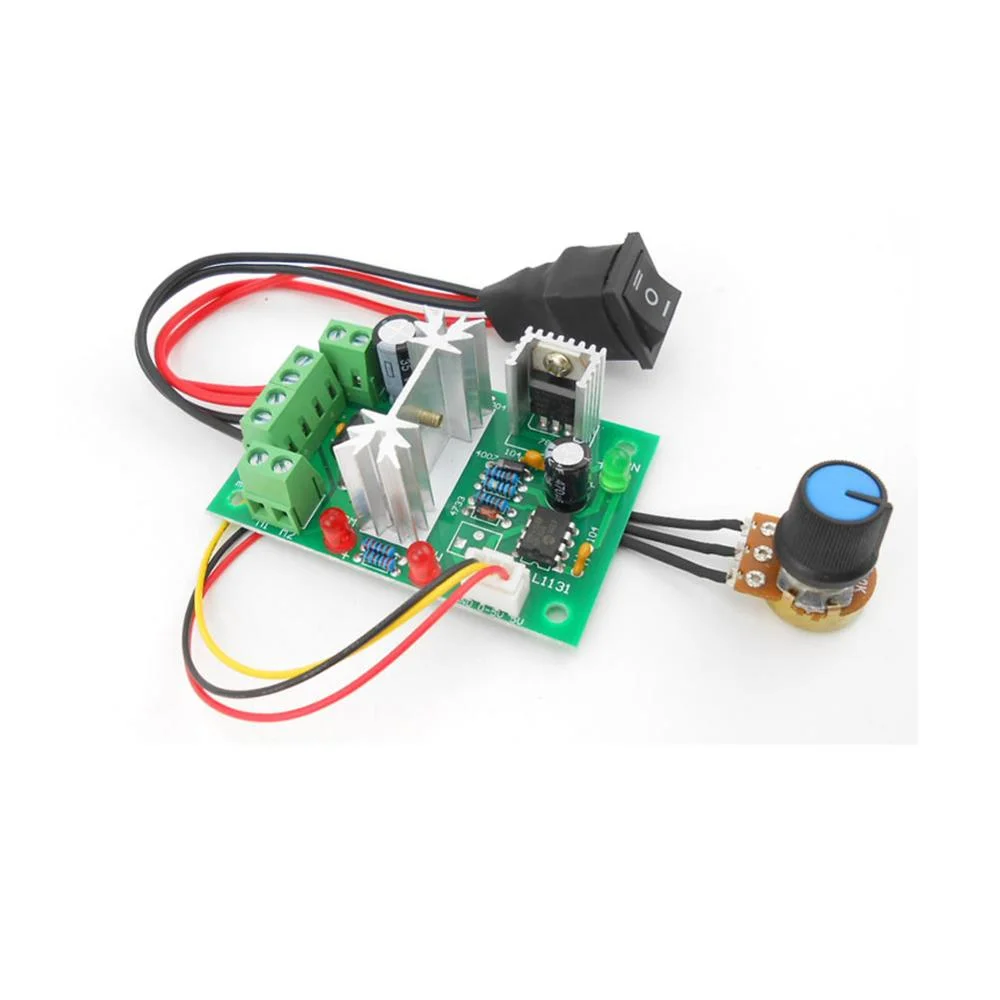

Product Name: 6A-18S
Continuous power: 180W
Speed control type: flow adjustment
Speed control mode: potentiometer (linear)
Speed range: 0 - 100%
Control frequency: 15KHZ
Wiring type: fence terminal block
Knob line length: 20CM
Module size: length * width * height 74MM * 46MM * 28MM
Product net: 66 grams
Motherboard mounting size: length * width 64MM * 36MM
Potentiometer press to open the hole: 7MM
