Description
Product Description

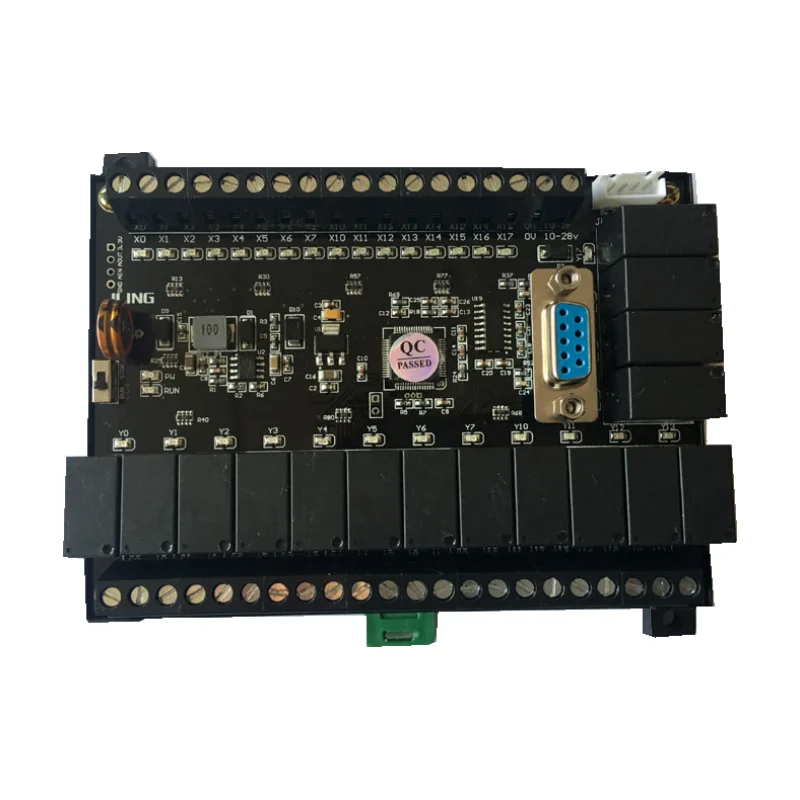

PLC Control Board Programmable Controller Relay Delay Module with Analog FX1N-24MR/24MT DC10-28V Motor Regulator
Product parameter
Product name: Industrial board
Enter points :12
Supply voltage :DC 10~28V
Analog input :1AD
Memory capacity :2000 steps
Connected text screen: Supported
Programming software :Gx Developer and Gx Works2
Product model: FX1N-24MT
Output type: transistor output
Output points: 12 points
Output current: Output for a long time 300mA
Analog output: 1DA
Stepper motor: Supported
Connect touch screen: Supported
Installation method:
4 M3 screws for mounting
Guideway housing
The company's PLC products are imported industrial 32-bit CPU, compatible with FX1N series, you can download, upload, control, monitoring. It can be flexibly used in various industrial automatic control occasions, such as metallurgy, chemical industry, plastics, textile, food, packaging, printing, building materials, woodworking, central air conditioning, environmental protection equipment and single process control devices in the industry of production machinery, industrial production lines, various machine tools of industrialization control equipment.
Tip: Some customers are slow to download the program, we default to download the program length of 8000 steps, in fact, most customers write the program will not exceed 2000 steps, so in the GX or WORK2 software set up, you can increase the download speed by 4 times
The setting method is as follows: Click the + sign in front of the parameter in the engineering sequence data list, the PLC parameter will appear. Double-click the PLC parameter, the parameter setting interface will appear. In the parameter setting interface, the memory capacity can be set from 8000 to 2000.
Product name: Industrial board
Enter points :12
Supply voltage :DC 10~28V
Analog input :1AD
Memory capacity :2000 steps
Connected text screen: Supported
Programming software :Gx Developer and Gx Works2
Product model: FX1N-24MT
Output type: transistor output
Output points: 12 points
Output current: Output for a long time 300mA
Analog output: 1DA
Stepper motor: Supported
Connect touch screen: Supported
Installation method:
4 M3 screws for mounting
Guideway housing
The company's PLC products are imported industrial 32-bit CPU, compatible with FX1N series, you can download, upload, control, monitoring. It can be flexibly used in various industrial automatic control occasions, such as metallurgy, chemical industry, plastics, textile, food, packaging, printing, building materials, woodworking, central air conditioning, environmental protection equipment and single process control devices in the industry of production machinery, industrial production lines, various machine tools of industrialization control equipment.
Tip: Some customers are slow to download the program, we default to download the program length of 8000 steps, in fact, most customers write the program will not exceed 2000 steps, so in the GX or WORK2 software set up, you can increase the download speed by 4 times
The setting method is as follows: Click the + sign in front of the parameter in the engineering sequence data list, the PLC parameter will appear. Double-click the PLC parameter, the parameter setting interface will appear. In the parameter setting interface, the memory capacity can be set from 8000 to 2000.
