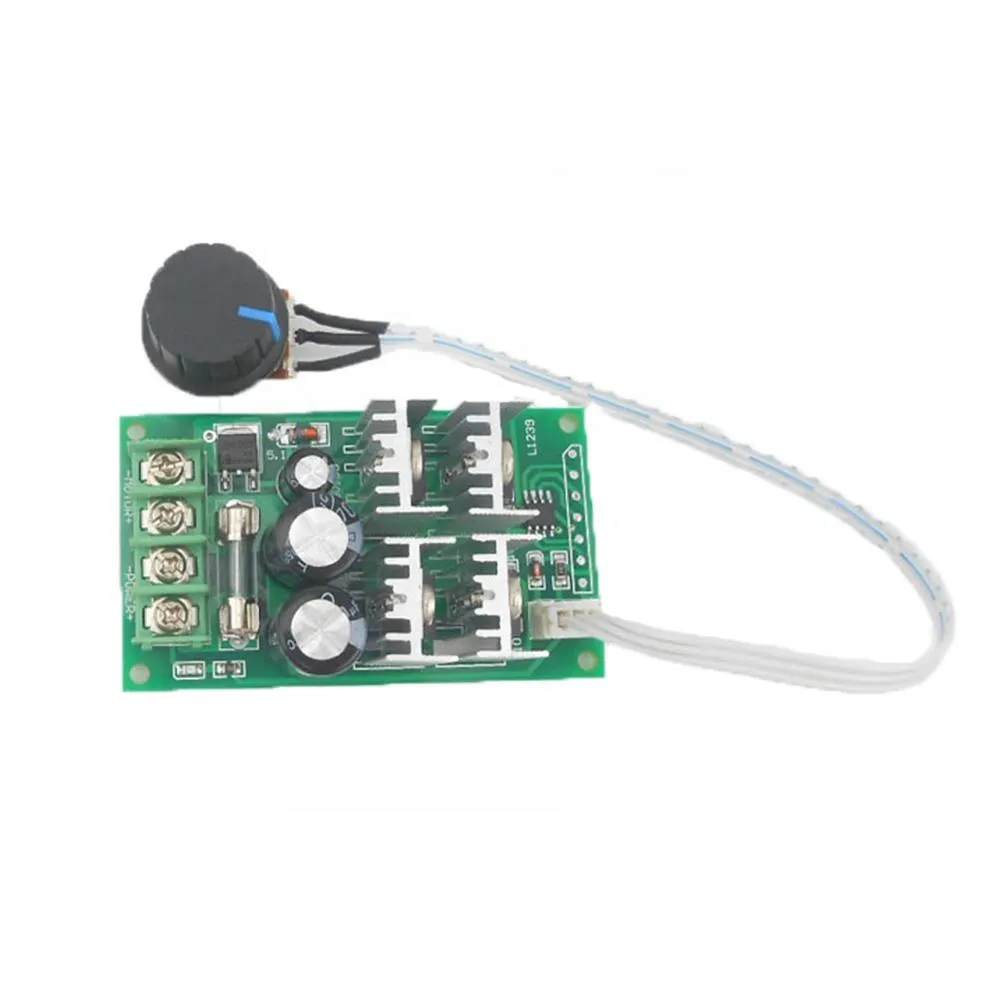

PLC analog 0-5V microcontroller control variable speed dc electric motor with potentiometer dc motor drive controller
Description
Product Name: 30A-20S
Input voltage: DC6-60V
Output voltage: linear under load
Output current: 0-30A
Continuous current: 20A
Speed control type: flow adjustment
Speed control mode: potentiometer (0-5V)
Speed range: 0 - 100%
Control frequency: 15KHZ
Wiring type: fence terminal block
Knob line length: 20CM
Module size: length * width * height 78MM * 45MM * 28MM
Product net: 66 grams
Motherboard size: length * width 72MM * 39MM
Potentiometer press to open the hole: 7MM
Analog signal 0-5V speed control connection: the middle of the potentiometer is the signal line
Wiring diagram
Make sure the positive and negative connections are correct before powering up
Input is 6-60V DC
