Description
Product Description

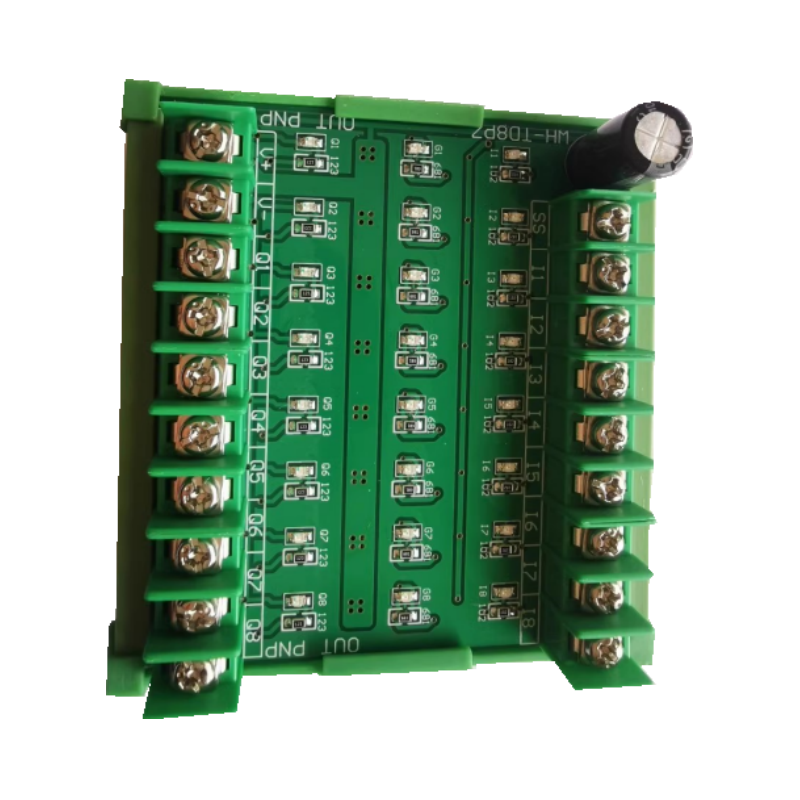

PLC amplifier board 4/8/12 channel DC with short circuit protection Output protection board PNP NPN
Note: Only switching power supply!!! If the transformer power supply needs to add 2 160V1000uf capacitors at the power end! With short-circuit protection amplifier board, output long-term current below 2.5A, 3.5A to 4A trigger protection, after protection, lock the output to re-power on or signal re-set recovery!
Installation: PCB module holder Size: 4-way 82mm*55mm*35mm 8 channels 82mm x 85mm x 35mm 12 channels 82mm x 123mm x 35mm
