Description

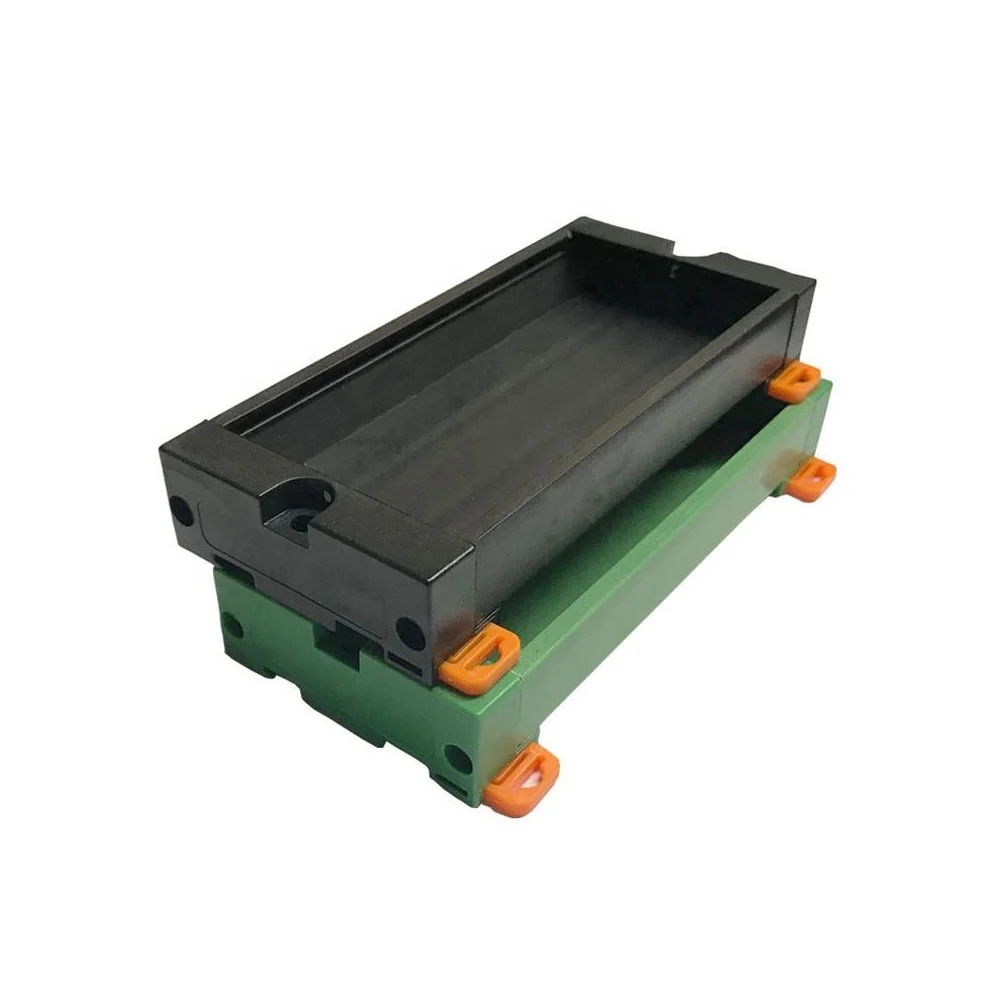

Plastic PDM50/60/72/80mm PLC Terminal Block Din Rail Mount PCB Holder Housing Relay PCB Board Mounting Carrier Base
Product Description
The PDM series product is a product newly developed and designed by our company. It has double patents and counterfeiting must be investigated. PDM50 can carry a PCB board with a width of 50mm and a thickness of <=2mm. The length of the PCB is based on the length of the shell plus 2mm, and each side protrudes 1mm into the card slot of the side cover. DIN rail installation and panel installation can be realized at the same time, and the installation is more convenient The height of the design is lower than that of ordinary shells, and the installation is firmer. At the same time, the appearance of the control module is smaller and more exquisite. The buckle has an automatic rebound function, which is not easy to break under low temperature conditions, making the installation more reliable The length can be cut and matched according to the requirements of customers. Various colors and styles can be processed and customized according to customer requirements.
Specification
|
item
|
value
|
|
Model Number
|
87-110mm PCB Din rail mounting adapter
|
|
Number of Contacts
|
1 - 10
|
|
Type
|
PCB
|
|
Color
|
Green /Black
|
|
Types
|
PDM50mm PDM60mm PDM72mm PDM80mm
|
|
PCB thickness
|
1.6 to 2.0mm
|
|
Din rail mount type
|
C45
|
|
PCB Length types:
|
pcb length 87mm pcb length 88mm pcb length 89mm
pcb length 90mm pcb length 91mm pcb length 92mm
pcb length 93mm pcb length 94mm pcb length 95mm
pcb length 96mm pcb length 97mm pcb length 98mm
pcb length 99mm pcb length 100mm pcb length 101mm
pcb length 102mm pcb length 103mm pcb length 104mm
pcb length 105mm pcb length 106mm pcb length 107mm
pcb length 108mm pcb length 109mm pcb length 110mm
|
