Product Introduction & Description
The PHR Series is a high-precision long-range laser displacement sensor that utilizes advanced Phase Shift measurement technology. Engineered for industrial applications, it offers an exceptional measurement range of up to 200 meters with millimeter-level accuracy (±2mm absolute precision). Designed for demanding environments, this sensor features a robust aluminum alloy housing with an IP65 protection rating, making it ideal for use in cranes, locomotives, AGVs, and automated material handling systems.

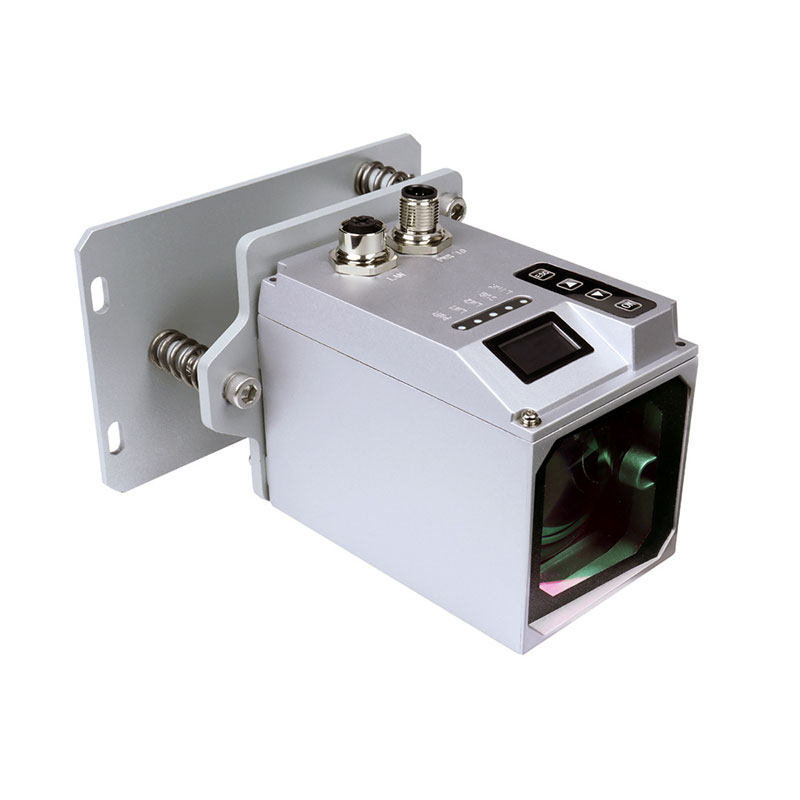

Equipped with a built-in OLED display and intuitive menu buttons, the PHR Series allows for quick and easy on-site configuration without the need for a PC. It supports high-frequency sampling rates (up to 1072Hz) to effortlessly track fast-moving objects and provides versatile communication options including SSI, CAN (CANopen), and Ethernet (TCP/UDP) via durable M12 connectors. The compact design includes a metal mounting plate with shock-absorbing springs for quick installation and replacement.
PHR Series Laser Distance Sensor Specifications
|
Parameter Category |
Parameter |
Specification (PHR-120100) |
Specification (PHR-200100) |
|---|---|---|---|
|
Basic Characteristics |
Model |
PHR-120100 |
PHR-200100 |
|
Detection Distance |
120 m |
200 m |
|
|
Spot Diameter |
245 mm (@120m) |
405 mm (@200m) |
|
|
Max. Moving Speed |
12 m/s |
12 m/s |
|
|
Clock Frequency |
50 KHz - 800 KHz |
50 KHz - 800 KHz |
|
|
Measurement Frequency |
1072 Hz |
1072 Hz |
|
|
Laser Parameters |
Light Source |
Red Laser |
Red Laser |
|
Wavelength |
650 nm |
650 nm |
|
|
Laser Class |
Class 3B (IEC-60825) |
Class 3B (IEC-60825) |
|
|
Measurement Method |
Phase Shift Method |
Phase Shift Method |
|
|
Ambient Light Limit |
Must maintain >3.5m distance from other devices emitting the same wavelength. |
Must maintain >3.5m distance from other devices emitting the same wavelength. |
|
|
Measuring Accuracy |
Absolute Accuracy |
±2 mm |
±2 mm |
|
Repeat Accuracy |
±1 mm |
±1 mm |
|
|
Resolution |
0.1 mm |
0.1 mm |
|
|
Electrical Specifications |
Operating Voltage |
DC 9V - 32V |
DC 9V - 32V |
|
Rated Current |
0.15 A (@24V) |
0.15 A (@24V) |
|
|
Rated Power |
3.6 W |
3.6 W |
|
|
Display & Indicators |
Screen |
128 * 64 pixels, OLED Display |
128 * 64 pixels, OLED Display |
|
Indicators |
PWR, LM1, LM2, SSI, LINK |
PWR, LM1, LM2, SSI, LINK |
|
|
Interface Parameters |
Network Interface |
M12 4-pin Female Straight |
M12 4-pin Female Straight |
|
GPIO |
M12 12-pin Male Straight |
M12 12-pin Male Straight |
|
|
Communication |
SSI, CAN, Ethernet |
SSI, CAN, Ethernet |
|
|
Protocol |
CANopen, TCP/UDP |
CANopen, TCP/UDP |
|
|
Environmental Conditions |
Operating Temp. |
-10°C ~ +50°C |
-10°C ~ +50°C |
|
Operating Humidity |
< 80% RH |
< 80% RH |
|
|
Storage Temp. |
-20°C ~ +70°C |
-20°C ~ +70°C |
|
|
Mechanical Dimensions |
Product Size |
137 × 88 × 141 mm |
137 × 88 × 141 mm |
|
Package Size |
185 × 175 × 115 mm |
185 × 175 × 115 mm |
|
|
Protection Level |
IP65 |
IP65 |
|
|
Housing Material |
Aluminum Alloy |
Aluminum Alloy |
Key Features
-
Long Measurement Range: Up to 200 meters (model dependent) with a spot diameter of 405mm at max range.
-
Millimeter Accuracy: Achieves ±2mm absolute accuracy and ±1mm repeatability with a resolution of 0.1mm.
-
High-Speed Tracking: Measures moving objects at speeds up to 12 m/s with a measurement frequency of 1072Hz.
-
Phase Shift Technology: Uses phase shift measurement for high stability and precision over long distances.
-
Industrial Connectivity: Features M12 4-pin (Ethernet) and M12 12-pin (GPIO) interfaces; supports SSI, CANopen, and TCP/UDP protocols.
-
On-Board Configuration: Integrated 128x64 pixel OLED screen and physical buttons for parameter setup and diagnostics.
-
Rugged Design: IP65 rated, made from aluminum alloy, and includes a metal mounting bracket with damping springs for vibration resistance.
