Description
Product Description

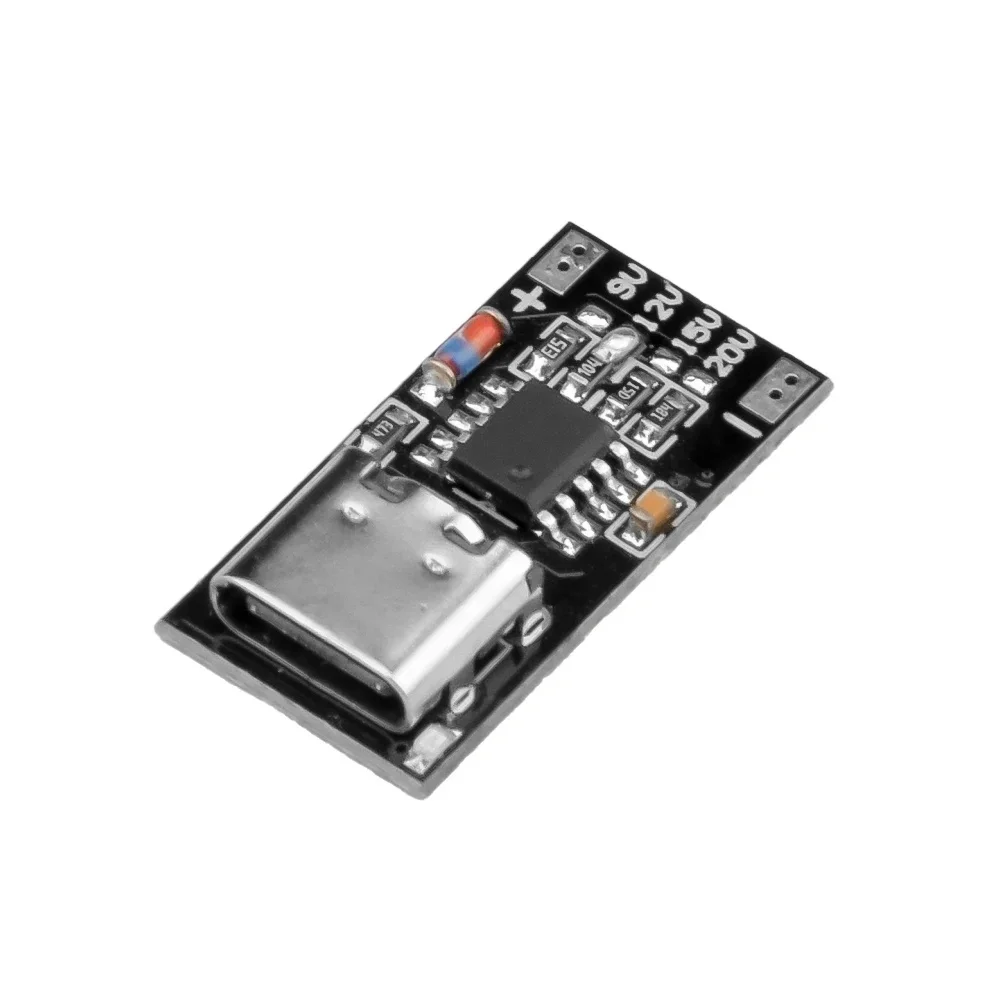

PD/QC/AFC TYPE-C Decoy Board USB Boost Module PD3.0 2.0 PPS/QC4 + FCP AFC Type-c Trigger Polling Detector Power Fast Charge
Introdction
Product selling points
Supports multiple fast charging protocols
Widely used
Compact size
Maximum support of 5A
TYPE-C port power supply
Product parameters
Supports multiple fast charging protocols: PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, AFC
Function/function of this product:
Trick the voltage of the fast charging charger/power bank out and use it as a DC power source. For example, let the fast charging power bank output 9V and 12V to power routers, optical cats, and other devices!
Transforming some traditional DC powered devices into TYPE-C ports for power supply.
Deception board size: 23 * 11.5 * 4mm
Reminder:
Mobile phone chargers/power banks must first support fast charging such as PD/QC in order to trick out fast charging voltage.
Fixed 9/12/15/20V four gears, what voltage is needed? Short circuit the corresponding pads, and the default output is 12V.
For example, if you set a trap of 20 volts, but your charger only has a maximum of 9 volts, it will automatically downshift to trap the output of 9 volts.
The maximum support is 5A, and the actual output current/power is determined by your fast charging charger and load.
