Description

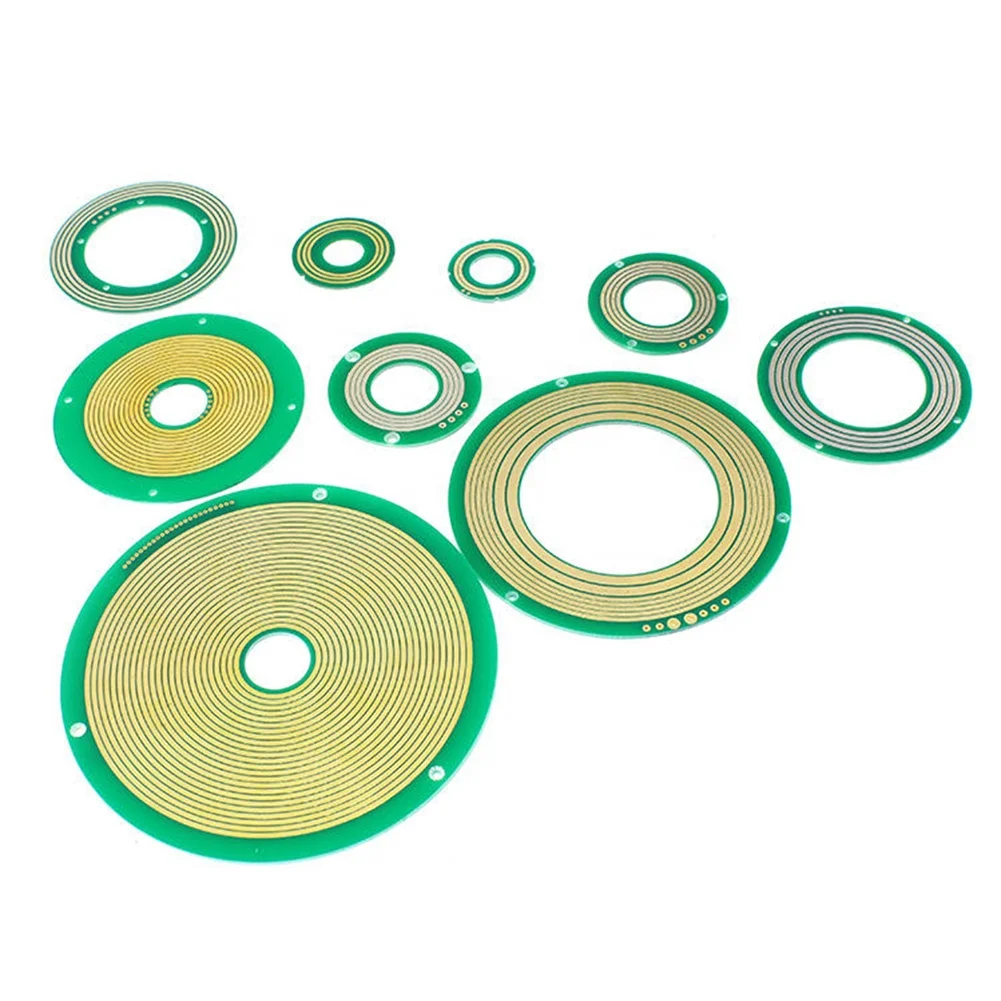

PCB Pancake Slip Ring Rotary Joint Electrical Connector Through Bore Slip Ring Electrical Rotary 3 6 12 Rings
Product Description
Pankake slip ring is especially preferred in applications where there is not enough space in terms of height. As another form of though hole slip rings, pancake slip rings are designed for somewhere vertical space is limited while horizontal space is less restrictive. Special high vacuum sealing technology & precious metal brush ensure the high reliability transmitting and rotating performance of slip ring. With many advantages such as low torque ,low friction, low electrical noise and long life, pancake slip rings are mainly applied to transmit precise signal together with power, also could be combined with fluid media transmitting(such as hydraulic or pneumatic.
Specification
Feature
value
1
Separate type, ultra-thin thickness, only 6mm
2
Used for 360-degree rotating conduction in very small space equipment
3
Shrapnel contacts use gold and silver precious metals with high stability and high reliability
4
The stator and the rotor are separated, and the set screws are used for fixing
5
The contact pressure is controlled by the distance between the two boards. The distance between the two boards after installation is about 5.8mm
