Description

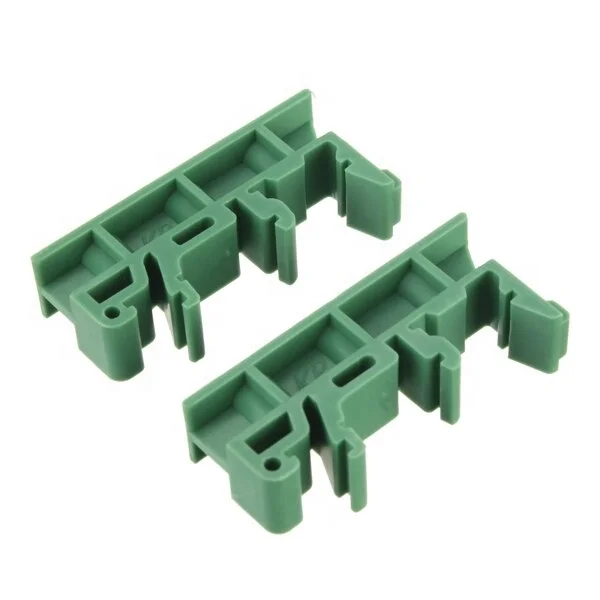

Pcb Circuit Board Brackets DIN Rail 35mm C45 Rail Mounting Clip PCB Mounting Bracket DIN Rail Mounting Bracket
Product Description
The din rail is an industrial standard.Using the rail is an installation method of industrial electrical components.Electrical
components that support this standard can be easily stuck on the rail without fixing with screws, and maintenance is also very convenient.
components that support this standard can be easily stuck on the rail without fixing with screws, and maintenance is also very convenient.
DIN rail dimensions are marked by width * depth * thickness. The general standards are: 1.0mm thickness, width: 35mm.
Commonly used are: 35 * 7.5 * 1; 35 * 15 * 1; 35 * 15 * 1.5; 35 * 16 * 1.8, etc. The external dimensions of the guide rail are
directly related to the effective cross-sectional area of the guide rail.
Commonly used are: 35 * 7.5 * 1; 35 * 15 * 1; 35 * 15 * 1.5; 35 * 16 * 1.8, etc. The external dimensions of the guide rail are
directly related to the effective cross-sectional area of the guide rail.
The common rail width is 3.5cm. Many electrical components have adopted this standard, such as PLC, circuit breaker, switch, contactor, etc.
|
Material
|
plastic
|
|
Color
|
green
|
|
Size
|
42.6*10*19.3mm
|
|
Compatible Din Rail size
|
35mm(C45 Rail)
|
Easy and quick installation on C45/DIN rails High quality, relatively high cost performance relative to PCB module racks, Four mounting holes need to be added when designing the PCB board.
