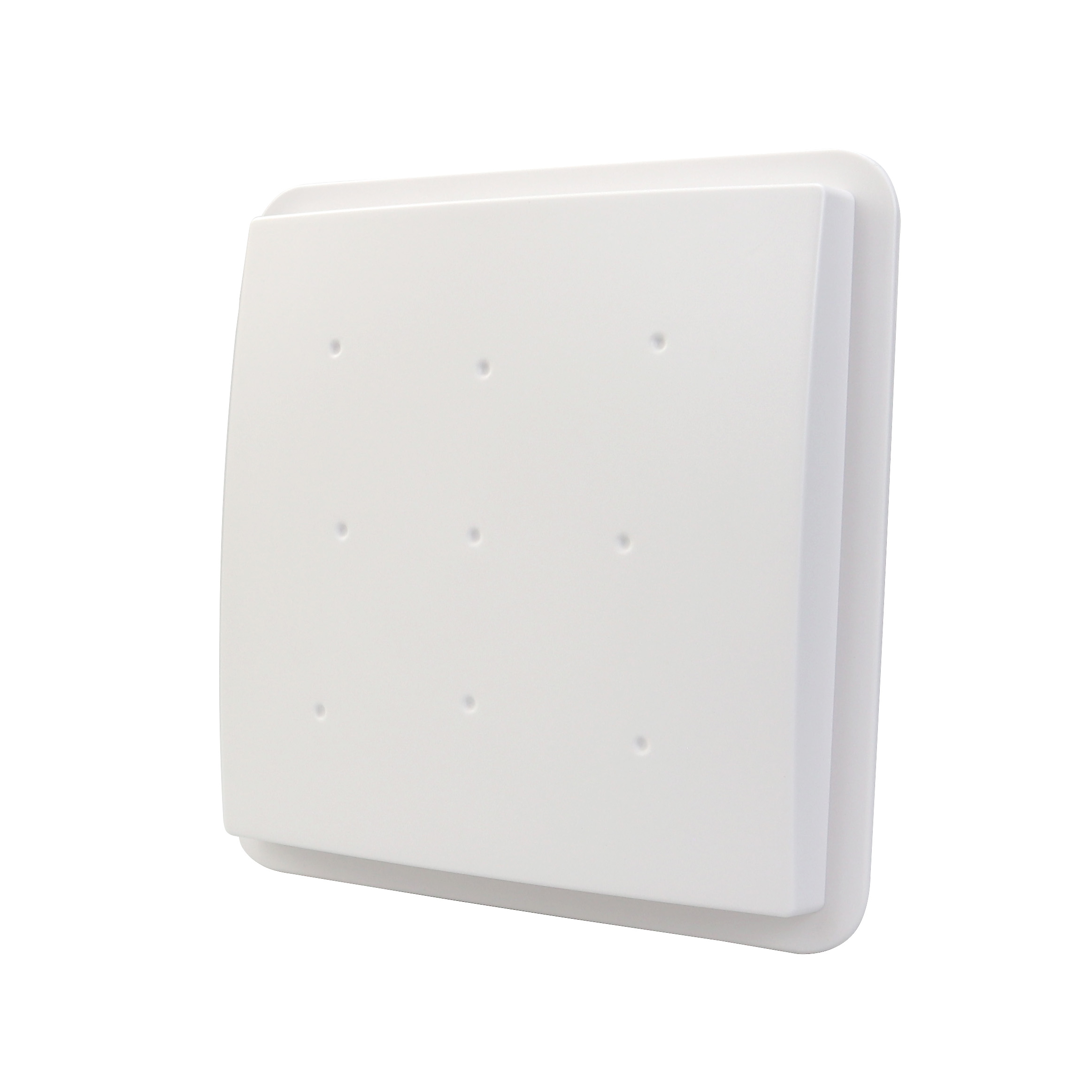

What is the overview of Patch Repeater Long Range Small 868Mhz High Gain 8dBi UHF RFID Antenna?
It is a high cost performancee 8dBi UHF circular polarization Antenna, It is widely applied in many RFID application systems such as logistics, terminals, parking lots, shopping malls, toll station,
access control, and anti-counterfeit and industrial production process control system.
What is the technical specification of Patch Repeater Long Range Small 868Mhz High Gain 8dBi UHF RFID Antenna?
|
Electrical Specifications
|
|
|
Frequency Range
|
840-960MHz
|
|
Gain
|
8dBi
|
|
Beam Width
|
Hor:68°/ Ver:68°
|
|
VSWR
|
≤1.3
|
|
Impedance
|
50Ω |
|
Polarization
|
Circular
|
|
Axial Ratio
|
≤3dB
|
|
F/B Ratio
|
≥13dB
|
|
Max Power
|
50W |
|
Lighting Protection
|
DC Grounded
|
|
Mechanical Specifications
|
|
|
Connector
|
N-Female
|
|
Dimension
|
258*258*45mm
|
|
Antenna Weight
|
0.58kg
|
|
Effective Wind Load Area
|
≤0.2m2
|
|
Max. Wind Velocity
|
36.9m/s |
|
Reflector Material
|
Aluminum
|
|
Radome Material
|
ABS
|
|
Radome Color
|
White
|
|
IP Grade
|
IP65
|
|
Operating Temperature
|
-40~70°C
|
|
Pole Diameter
|
φ30mm~φ50mm
|
RFID Products in Other Categories
1. Payment: T/T, Western Union, MoneyGram, PayPal, D/A, D/P.
2. MOQ: 1pcs
3. Warranty : 1 years
Our products have acquired CE, FCC certification and RoHS compliance and NCC, KCC, EK improvement via Taiwan, Korea companies. Our products are with stability, conformity, high performance and competitive price. We has super excellent and experienced R&D team and sales engineer team which are the guarantee to provide our clients with superior products and service as well as OEM/ODM business.
We expect to cooperate with system integrators, strategic partners and product distributors.
