Description
Specification

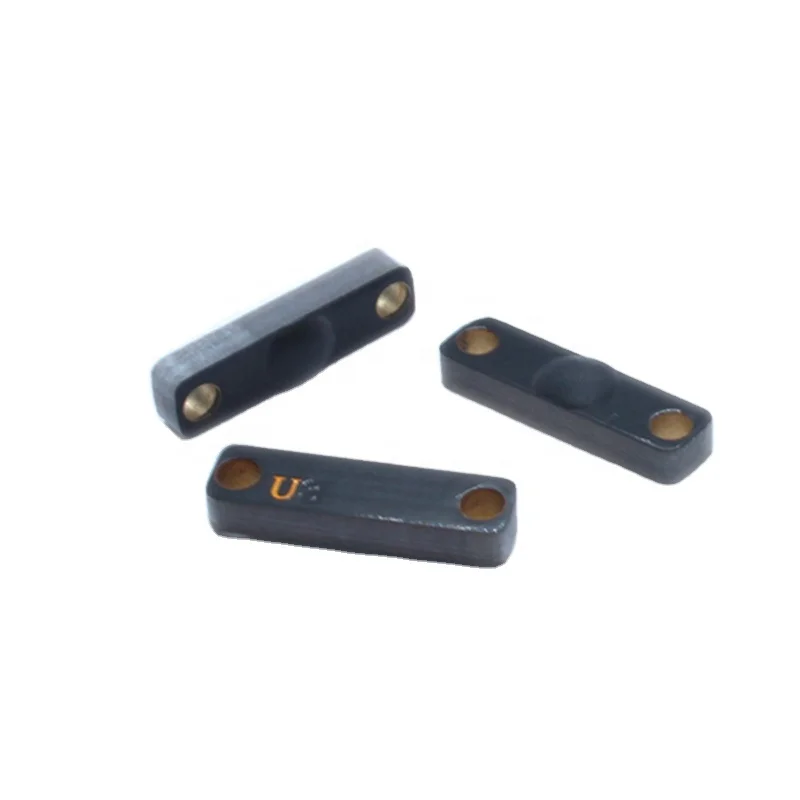

| Model | ASPC15X4 | Name | RFID Tags for Metal Tools Tracking | ||
| Material | PCB | Color | Black | ||
| Dimensions | 15*4*3mm | Weight | 0.25g | ||
| Working Temp | -20℃～+120℃ | Storage Temp | -40℃～+150℃ | ||
| RFID Protocol | ISO/IEC 18000-6 Type C (EPC Gen2) | ||||
| IC Type | U8 | ||||
| EPC Memory | 128 bits | ||||
| Read Range | 902-928 MHz | 250-330cm | |||
| 865-868 MHz | 250-330cm | ||||
| Data Retention | Up to 50 years | ||||
| Write Cycles | 100,000 times | ||||
| Installation | Adhesive, Screw | ||||
| Customization | Size, Encoding, Designing,etc | ||||
| Application | Tools management Goods shelves management Metal tray tracking Wooden pallet tracking Metallic equipment tracking,etc. | ||||
Product Description
Packing & Delivery
FAQ
Q: Could I get the free sample for testing?
A: Yes, we provide free samples to you for testing.
Q: Do you accept personal customized?
Q: Do you accept personal customized?
A: Yes, the antenna, chip, size, material, printing can be customized as your requirement.
Q: Are you an original manufacturer?
A: Yes, we have factory in Shenzhen, China. Welcome here and have a visit.
Q: What is your Main Products?
A: We supply UHF RFID label/inlay, HF/UHF anti-metal tags, HF/UHF PVC cards, keyfob, RFID silicone wristband, animal tracking glass microchip, washable tags, frangible tags, ect.
Q: What about the warranty of your products?
A: We offer 2 full years of warranty for all the products.
