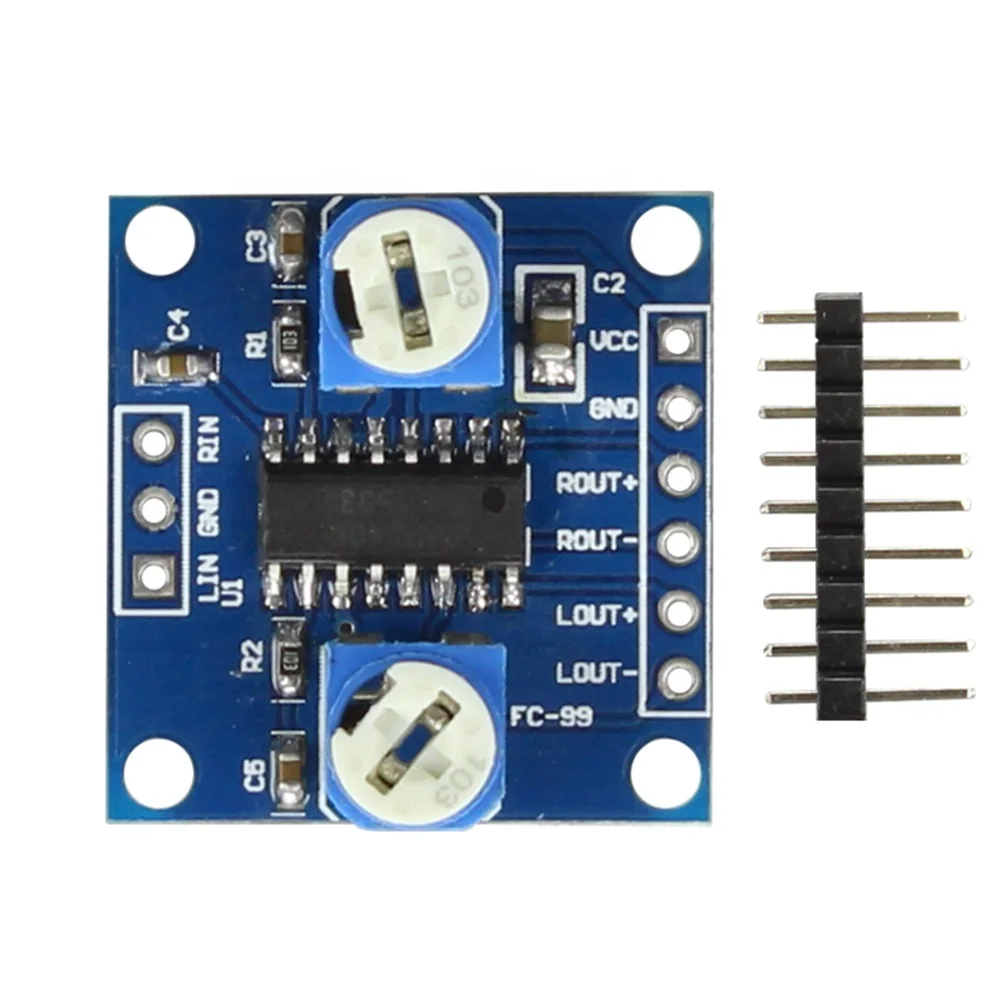

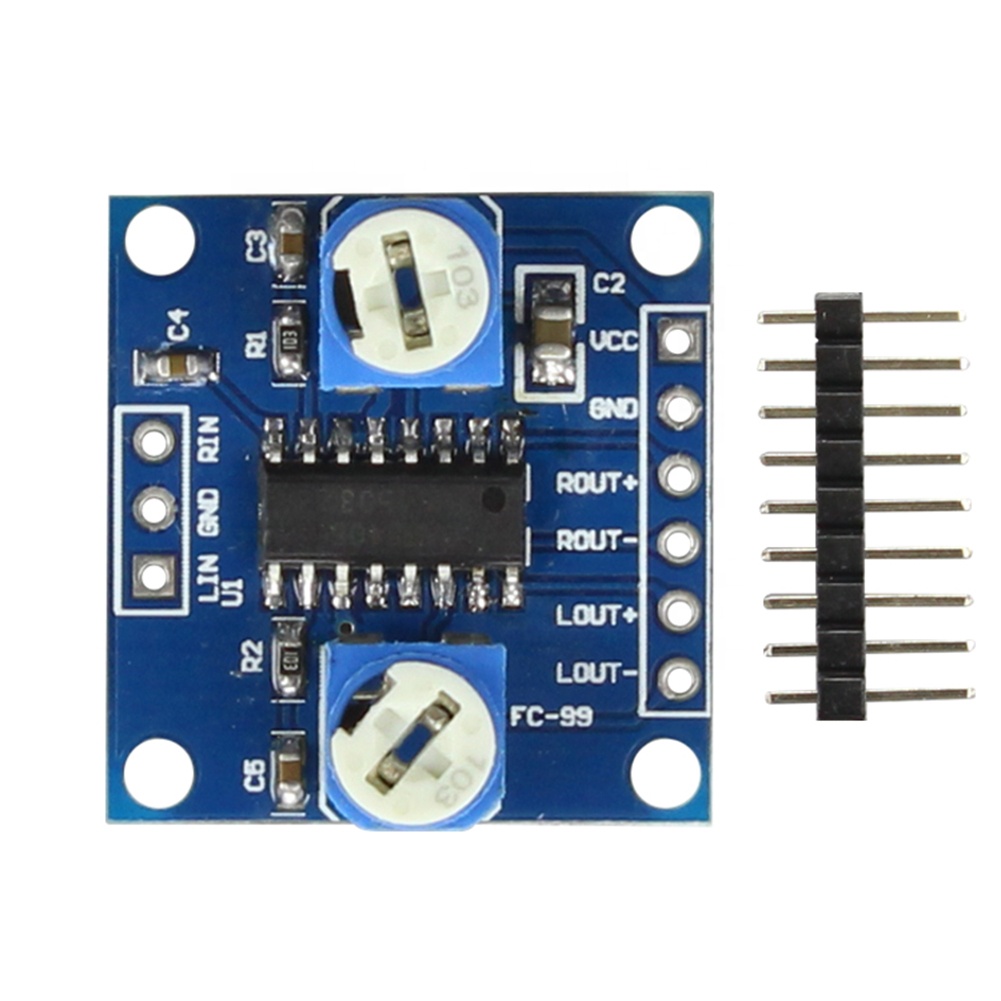

PAM8406 5W 5W 2.5-5V Audio Amplifier Noiseless Digital Stereo Amplifier Audio Universal with Volume Potentiometer
Product Description
The PAM8406 power amplifier module is equipped with a 5W+5W high-efficiency, low-noise, stereo class D power amplifier chip. It has the characteristics of pure sound and high degree of restoration. It is suitable for speakers with impedance 2-892 and power within 15W.
Specification
On-board chip: On-board PAM8406 audio amplifier chip, the sound quality is surging and no noise Operating Voltage: 2.5- 5V Output power: maximum output power 2x5W when powered by 5V On-board potentiometer: On-board left and right channel volume adjustment potentiometer Protection function: thermal protection, short circuit protection
Installation Instructions
|
VCC, GND
|
Operating voltage input
|
|
RIN, GND, LIN
|
audio signal input (pin GND to the audio signal common)
|
|
ROUT +, ROUT-
|
right channel output
|
|
LOUT +, LOUT-
|
left channel output
|
