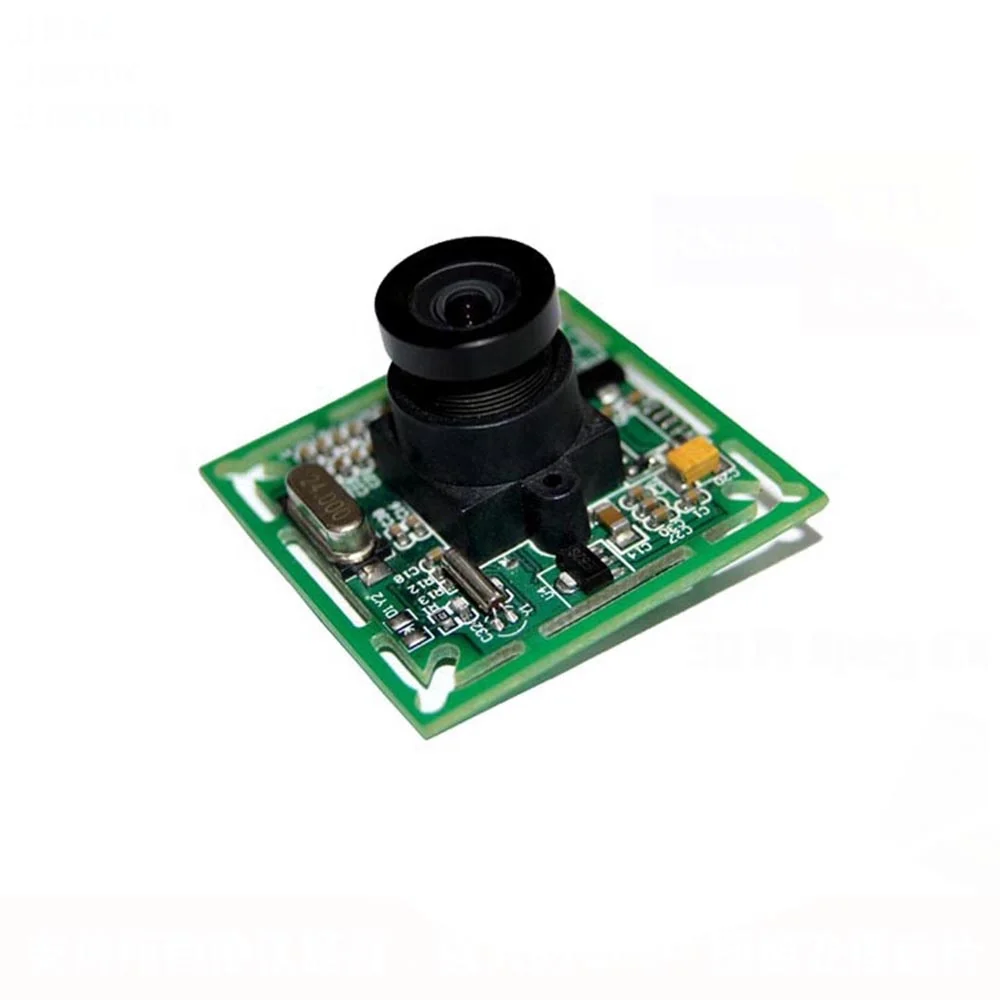

OV7725 0.3 Megapixel Camera RS232/RS485/TTL Serial JPEG Camera Module 15M Monitoring Distance Digital Camera Module
Product Description
1, Communication protocol format
|
Host to camera
|
||||||||
|
Protocol flag 1Byte
|
Serial number 1Byte
|
Command word 1Byte
|
Data length 1Byte
|
Data 0~16Bytes
|
||||
|
0x56(V')
|
Num
|
cmd
|
Len
|
Data
|
||||
|
Example: 56 00 11 00 to get the version number
|
||||||||
|
Camera to host
|
||||||||||
|
Protocol flag 1Byte
|
Serial number 1Byte
|
Command word 1Byte
|
Status word 1Byte
|
Data length 1Byte
|
Data 0~16Bytes
|
|||||
|
0x76(v')
|
Num
|
Omd
|
stus
|
Len
|
Data
|
|||||
|
Example: 76 00 00 0B 56 43 30 37 30 33 20 31 2E 30 30 (VC07031.00), Communication method: VC0706 HUART
|
||||||||||
Communication method: VC0706 HUART
2. Get the version number Host send: 56 00 11 00 Camera response: 76 00 11 00 0B 56 43 30 37 30 33 20 31 2E 30 30 (VC07031.00) 3. Take pictures Photographing process: a. Stop the current frame refresh b. Length of marrying picture c. Get pictures d. Recovery frame update a. Stop the current frame refresh The host sends: 56 00 36 01 00 Camera back: 76 00 36 00 00 b. The length of the married picture, the picture length is 4Bytes The host sends: 56 00 34 01 00 Camera back: 76 00 34 00 04 XX XX XX XX c. Get pictures 0x56+serial number 1B+0×32+0x0C+0x00+operation mode+start address 4B+data length 4B+delay time Operation mode: 0X0A=UART, 0X0C=HUART The host sends: 56 00 32 0C 00 0C 00 00 00 00 XX XX XX XX 00 FF Camera back: First back: 76 00 32 00 00 Back again: image data After sending back: 76 00 32 00 00
Note: Delay time refers to the time interval between camera return command and data, the unit is 0.01mS d. Recovery frame update The host sends: 56 00 36 01 02 Camera back: 76 00 36 00 00 4. Set the picture size XX: =0×00 is VGA (640*480), =0×11 is QVGA (320*240), =0×22 is QQVGA (160*120) host sends: 56 00 31 05 01 01 12 04 XX Camera back: 76 00 31 00 00 5. Set the image compression rate XX is the compression ratio (0x00~0xff), the larger the XX, the higher the compression ratio The host sends: 56 00 54 01 XX Camera back: 76 00 54 00 00 6. Reset instruction The host sends: 56 00 26 00 Camera back: 76 00 26 00 00 7. Modify the serial port baud rate XX:=0x2AFA 38400bps,=0x1C4C 57600bps,=0×0DA6 115200bps The host sends: 56 00 24 03 01 XX XX Camera back: 76 00 24 00 00
Specification
|
Size
|
32*32MM or 38*38MM
|
|
Working environment
|
-40℃~80℃
|
|
Image sensor type
|
CMOS1/4 inch
|
|
Image pixels
|
0.3MP 0V7725
|
|
Resolution
|
160*120, 320*240, 640*480
|
|
Output format
|
JPEG
|
|
Communication rate/baud rate
|
2400~115200bps adjustable
|
|
Working current
|
less than 70mA
|
|
Illuminance
|
11ux
|
|
White Balance
|
Auto
|
|
Exposure
|
Auto
|
|
Gain
|
Auto
|
|
Lens
|
2.8/3.6mm
|
|
Viewing angle
|
90 degrees/120 degrees can be optional (default 90 degrees)
|
|
Monitoring distance
|
within 15 meters
|
|
Night vision infrared fill light
|
optional
|
|
Communication method
|
RS232/RS485/TTL optional
|
|
Working voltage
|
DC+5V 12V/9~36V optional (default 5V)
|
Note
Please note the Working voltage view angle and communication method when you order it. Otherwise we default sent DC5V 90 degrees TTL port camera module.

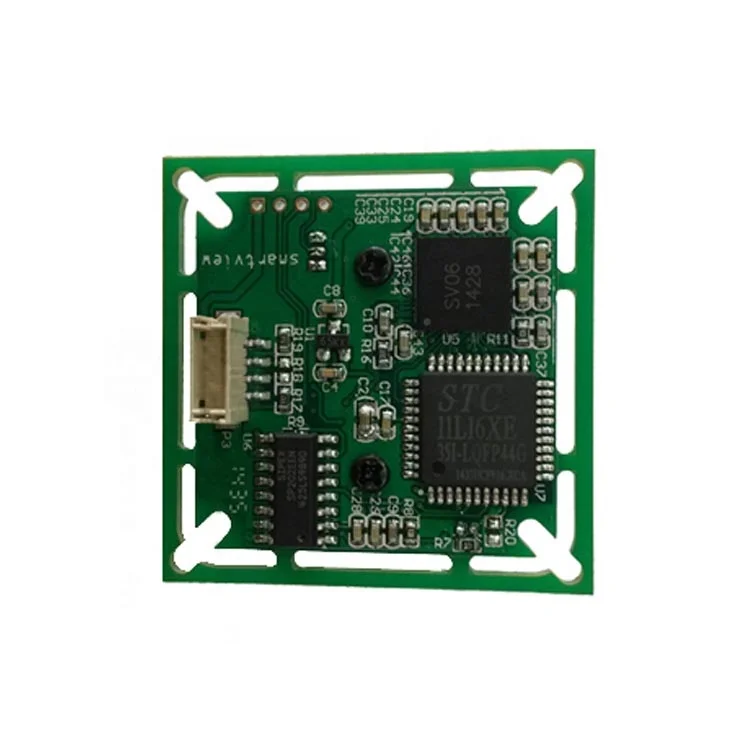

Details Images
