Description
Products Description

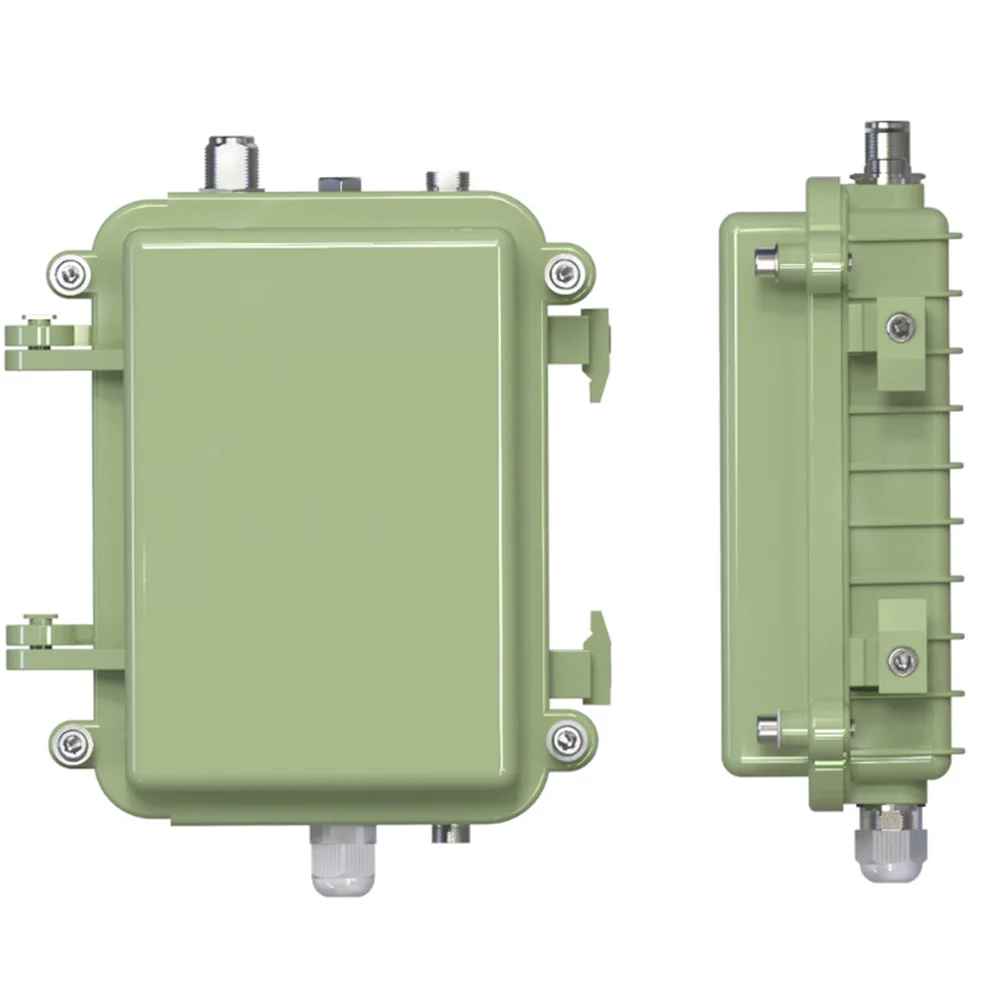

Spark-proof outdoor omnidirectional reader is a device for collecting vehicle and person nel information. The internal integration of 2.4G high-performance communication module, using radio frequency communication principle (alternating magnetic field and electromagnetic field) to generate electromagnetic wave to achieve contactless information transmission, and through the information transmitted to achieve the purpose of automatic identification. Thus, it can locate the corresponding person or vehicle of the electronic label in the designated area.
●Omnidirectional recognition: omnidirectional card reading function, omnidirectional angle is 360 °degrees with the antenna . ● Adjustable reading distance: internal integrated microwave digital attenuator, which can control the reading distance by adjusting the rotary code or software method, and meet the needs of reading distance in practical applications;
● High security anti-interference technology: the new multi-frequency and multi-address technology is used for communication. The tag information is strictly encrypted using our company's unique encryption technology. Multiple verification methods are digitally processed before being sent to the reader; ● Anti-collision: using ARM technology, with the function of reading 1000 tags at the same time; ● IO interface: with reading interface and reading relay interface; ● Communication Interface: TCP / IP data communication interface.
|
Physical Parameter
|
||||||
|
Size
|
180mm*175mm*65mm
|
|||||
|
Material
|
Die cast aluminum
|
|||||
|
Color
|
Green
|
|||||
|
Weight
|
1.8kg
|
|||||
|
Packing
|
Corrugated box (1pcs / box) (can be customized)
|
|||||
|
Environmental Parameters
|
||||||
|
Working Humidity
|
<90%
|
|||||
|
Working Temperature
|
-25 ~ 70℃
|
|||||
|
Storage Temperature
|
-40 ~ 85℃
|
|||||
|
Protection Level
|
IP67 (Dust-proof and waterproof)
|
|||||
|
Performance parameter
|
||||||
|
Working Voltage
|
AC100V ~ 240V
|
|||||
|
Working Current
|
≤1A
|
|||||
|
Working Frequency
|
2.4ghz-2.5ghz ism microwave section
|
|||||
|
Reading Distance
|
0-100m (radius, omnidirectional antenna) distance adjustable
|
|||||
|
Reading Speed
|
<1S
|
|||||
|
Modulation mode
|
GFSK
|
|||||
|
Communication Interface Optional
|
TCP/IP
|
|||||
|
I / O interface
|
6p aviation plug (RJ45 network port)
|
|||||
|
Antenna Gain
|
>8dBi
|
|||||
|
Polarization Mode
|
Vertical polarization
|
|||||
|
Output Power
|
20dBm（Adjustable）
|
|||||
Network operation instruction
Definition of data format sent back by the reader
Network heartbeat packet mechanism
In order to ensure the reliability of the connection and check whether the device is online in real time, the device end will send heartbeat packet data to the service end every other period of time (60 seconds by default). ● Data format (40 characters) of heartbeat packet sent by device side: The data format of the heartbeat packet is the same as the above card reading packet, and the card number content in the packet is 0000000000. For example: Chen 0331df00160227162357000000000000092
● Data format of the confirmation package sent by the server (24 characters):In order to keep the system time of the device consistent with that of the server, and automatically restart the device to reconnect to the network in case of system network abnormality (if the device automatic restart function is enabled), the server shall respond to the returned data after receiving the heartbeat packet sent by the device, and the returned packet data format is as follows:
