Products Description

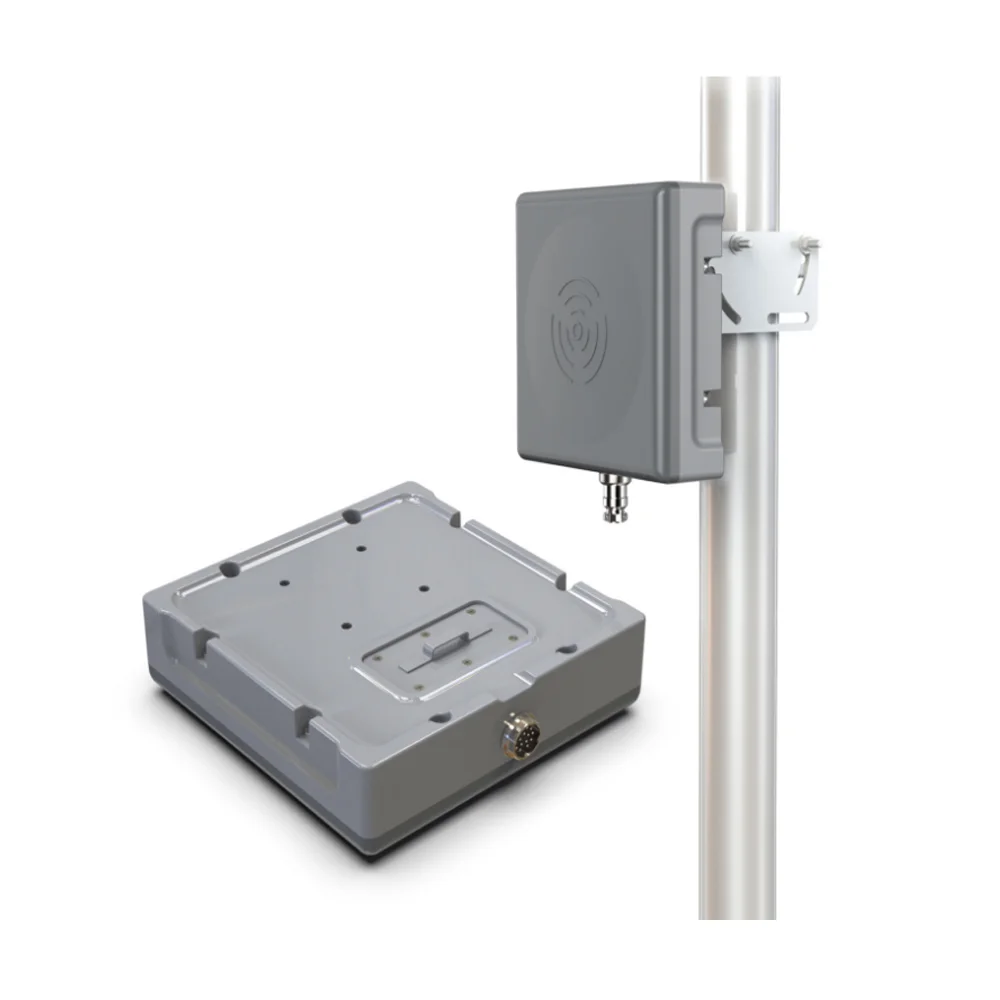

Outdoor directional reader adopts 2.4GHz civil band wireless communication technology.It is designed with high sensitivity and low power consumption technology, and low radiation that has no harm to human body. It has stable performance, with lightning protection, high waterproof level, and strong anti-interference ability, using ARM fast processor and composite receiving frequency division technology to improve card reading performance. A variety of data communication methods are widely used. It can be used in RFID vehicle management systems,access control systems, personnel positioning systems, cargo tracking systems, military, prisons,schools and other fields, and supports a variety of communication interfaces to meet the needs of customers in different environments.
● Directional recognition: orientation card reading function, orientation angle is less than 180 degrees (weak signal on the back); ● Adjustable reading distance: internal integrated microwave digital attenuator, which can control the reading distance by adjusting the rotary code or software method, and meet the needs of reading distance in practical applications;
● High security anti-interference technology: the new multi-frequency and multi-address technology is used for communication. The tag information is strictly encrypted using our company's unique encryption technology. Multiple verification methods are digitally processed before being sent to the reader; ● Anti-collision: using ARM technology, with the function of reading 1000 tags at the same time; ● IO interface: with reading interface and reading relay interface; ● Communication Interface: with WG26, WG34, RS485, TCP / IP data communication interface.
|
Physical Parameter
|
||||||
|
Size
|
180*180*54mm
|
|||||
|
Material
|
ABS
|
|||||
|
Color
|
Gray
|
|||||
|
Weight
|
1.7kg
|
|||||
|
Packing
|
Corrugated box (1pcs / box) (can be customized)
|
|||||
|
Environmental Parameters
|
||||||
|
Working Humidity
|
<90%
|
|||||
|
Working Temperature
|
-25 ~ 70℃
|
|||||
|
Storage Temperature
|
-40 ~ 85℃
|
|||||
|
Protection Level
|
IP67 (Dust-proof and waterproof)
|
|||||
|
Performance parameter
|
||||||
|
Working Voltage
|
DC12V or network POE power supply
|
|||||
|
Working Current
|
≤500mA
|
|||||
|
Working Frequency
|
2.45 GHz
|
|||||
|
Reading Distance
|
0-80m (Adjustable)
|
|||||
|
Battery Life
|
3～5Year (theoretical value)
|
|||||
|
Anti-collision
|
1000PCS
|
|||||
|
Receive sensitivity
|
-90dBm
|
|||||
|
Communication Interface Optional
|
WG26、WG34、RS485、TCP/IP
|
|||||
Wiring Debugging
Details Images
Workshop
FAQ
Question 1:
Question 3:
Question 6:
Is there stock for your products?
Answer: There is stock for different products in different periods. Please tell us what products you need, then we will check the stock for the products you need.
Question 2:
Question 2:
Do you offer samples?
Answer: For samples in stock, samples can be arranged directly and freely. For samples out of stock, new production needs to be arranged, and there is sample charge.
Answer: For samples in stock, samples can be arranged directly and freely. For samples out of stock, new production needs to be arranged, and there is sample charge.
Question 3:
How can the artwork be offered? Can do OEM and LOGO brand ?
Answer: Yes ,we support OEM and LOGO custom printing ,the Artwork can be sent to us by AI, or PSD,or CDR. But it has to be in vector graphics to ensure the quality of printing.
Question 4:
Answer: Yes ,we support OEM and LOGO custom printing ,the Artwork can be sent to us by AI, or PSD,or CDR. But it has to be in vector graphics to ensure the quality of printing.
Question 4:
What is MOQ? Can we order on pcs for the test ?
Answer: The MOQ is 1 pcs. For the 2.4G active tag usually different manufacture use Private communication protocol ,so if you need the samples to test ,also need to take the reader together can work well .
Question 5:
Answer: The MOQ is 1 pcs. For the 2.4G active tag usually different manufacture use Private communication protocol ,so if you need the samples to test ,also need to take the reader together can work well .
Question 5:
Can you do the whole solution including the hardware and software ?
Answer: Yes , we can . if you have the ability to docking/developing the software we will offer you the SDK /API /DEMO and communication protocol and user guide even the technical support . If you need we do the whole system ,we will done based on your requirement
Answer: Yes , we can . if you have the ability to docking/developing the software we will offer you the SDK /API /DEMO and communication protocol and user guide even the technical support . If you need we do the whole system ,we will done based on your requirement
Question 6:
What shipping way is adopted?
Answer: By Express, Air, Sea.Depends on clients' specific requirements and order quantity.
Question 7:
Answer: By Express, Air, Sea.Depends on clients' specific requirements and order quantity.
Question 7:
What is the lead time?
Answer: Generally, the shipping time is 3-5 working days if have stock here
Answer: Generally, the shipping time is 3-5 working days if have stock here
The production time is different indifferent periods for different orders. Please consult us according to your specific requirements of your order.
Question 8:
Question 8:
What payment do you adopt?
Answer: Western Union, Money Gram TT, Paypal. Paypal is just accepted for small amount.
Answer: Western Union, Money Gram TT, Paypal. Paypal is just accepted for small amount.
