Description

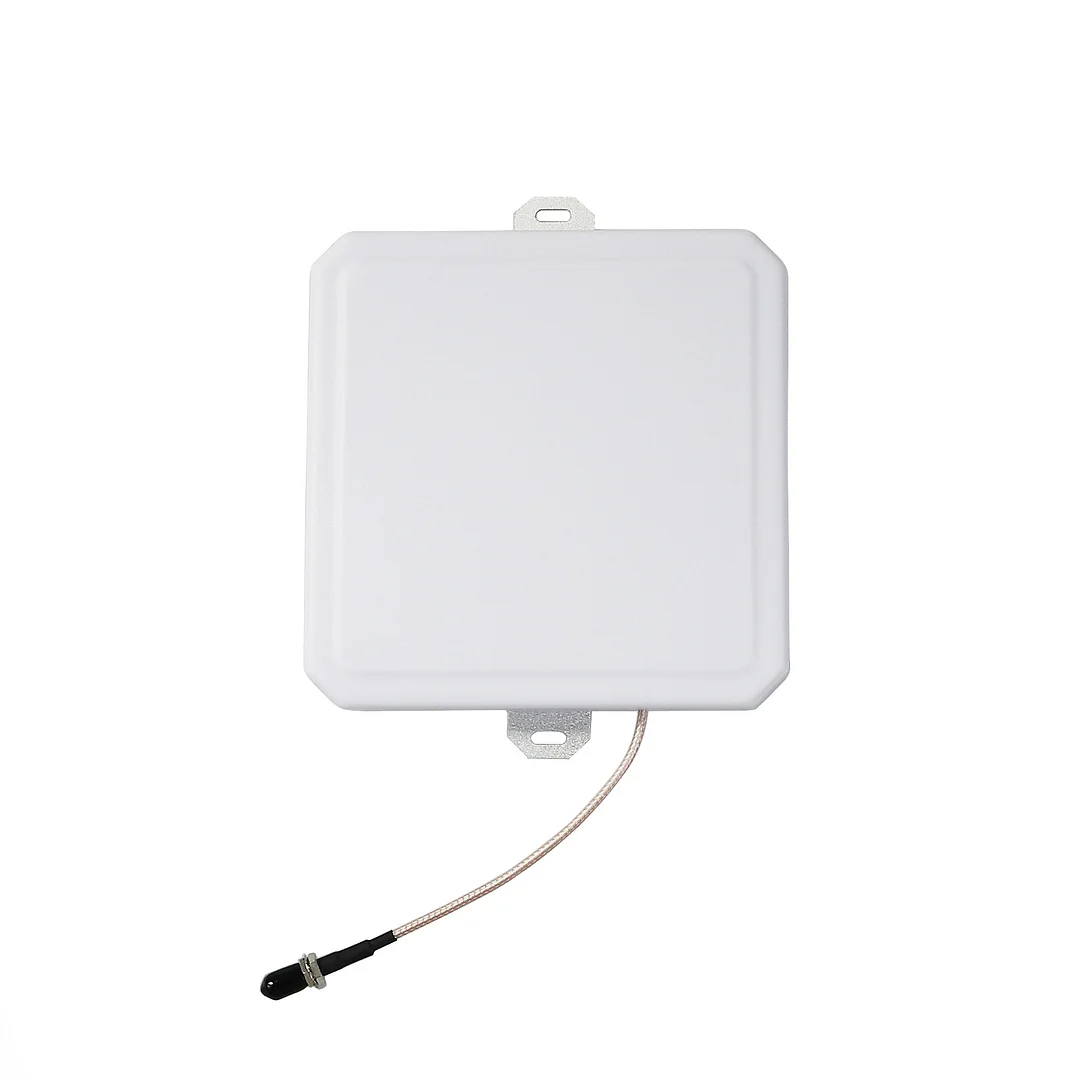

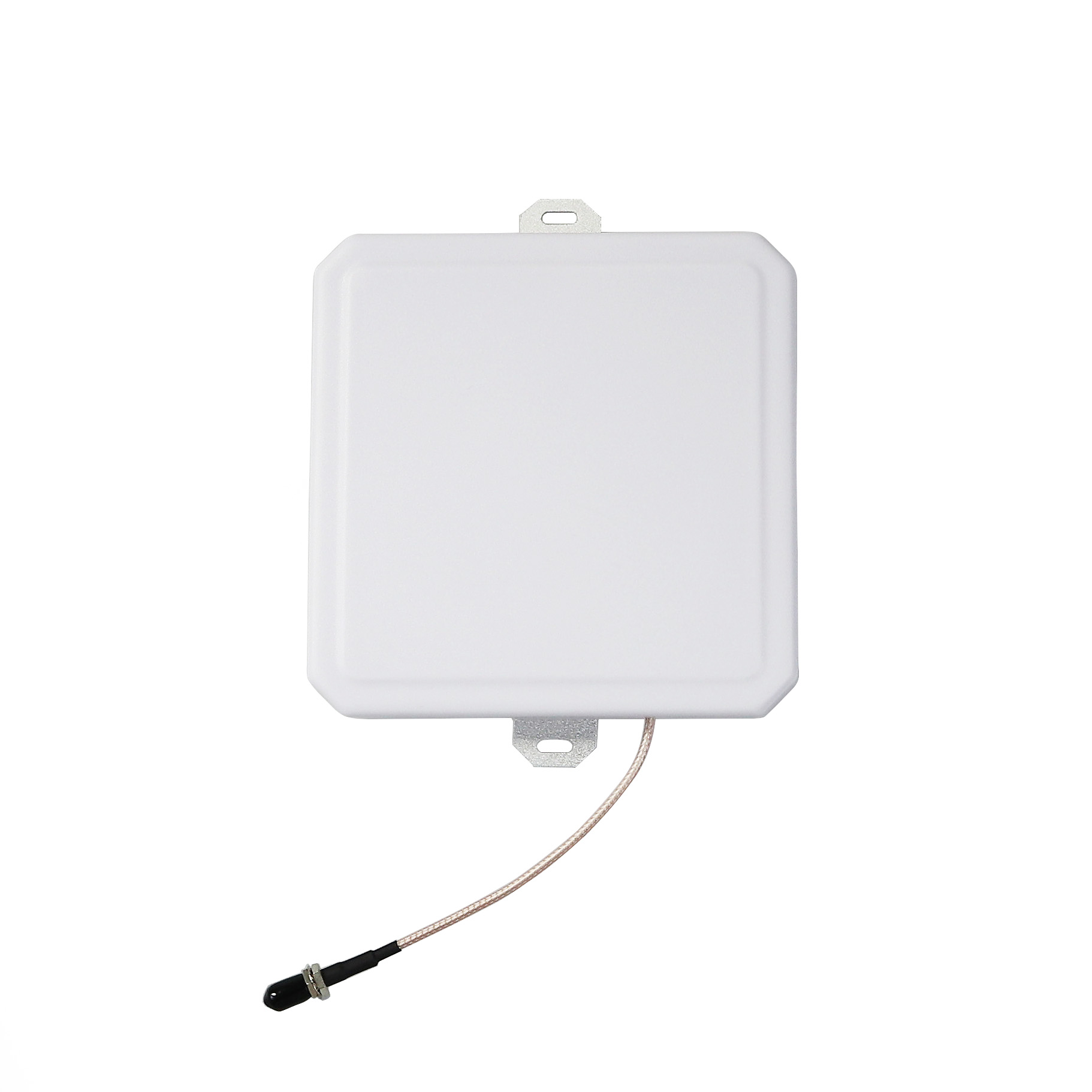

Outdoor Waterproof 4dBi Circular Polarization UHF RFID Antenna
Product Description
What is the overview of Outdoor Waterproof 4dBi Circular Polarization UHF RFID Antenna?
It is a high performance 4dBi UHF circular polarization antenna. It is widely applied in many RFID application systems such as logistics, warehouse management, self-service vending machine, asset management systems.
What is the technical specification of Outdoor Waterproof 4dBi Circular Polarization UHF RFID Antenna?
* Beautiful appearance, light weight, small size and easy installation;
* Wall mount, magnet adsorption or pole-mounted installation at option;
* Small install space needed, high impact resistance;
* Integrated or split connection to reader module;
* Accurate and high speed reading with stable performance.
What is the technical specification of Outdoor Waterproof 4dBi Circular Polarization UHF RFID Antenna?
Electrical Specifications
Frequency
840-960MHz
Gain
4dBi
Polarization
Circular
Beam Width
Hor:70° Ver:70°
VSWR
<1.5
Impedance
50Ω
Axial ratio
<3dB
Max. Power
50W
Lightning Protection
DC Grounded
Mechanical Specifications
Connector
SMA-Female
Connector Location
Side
Antenna Size
130*130*21mm
Net Weight
0.2kg
Effective Wind Load Area
<0.2m2
Max. Wind Velocity
36.9m/s
Radome Material
ABS
Radome Color
White
Operating Temperature
-40~55°C
What is the dimension of Outdoor Waterproof 4dBi Circular Polarization UHF RFID Antenna?
More Picture
Related Products
RFID Products in Other Categories
Packaging & Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
Trade Terms
1. Payment: T/T, Western Union, MoneyGram, PayPal, D/A, D/P. 2. MOQ: 1pcs 3. Warranty : 1 years
Our Services
Our products have acquired CE, FCC certification and RoHS compliance and NCC, KCC, EK improvement via Taiwan, Korea companies. Our products are with stability, conformity, high performance and competitive price. We has super excellent and experienced R&D team and sales engineer team which are the guarantee to provide our clients with superior products and service as well as OEM/ODM business.
We expect to cooperate with system integrators, strategic partners and product distributors.
