Description

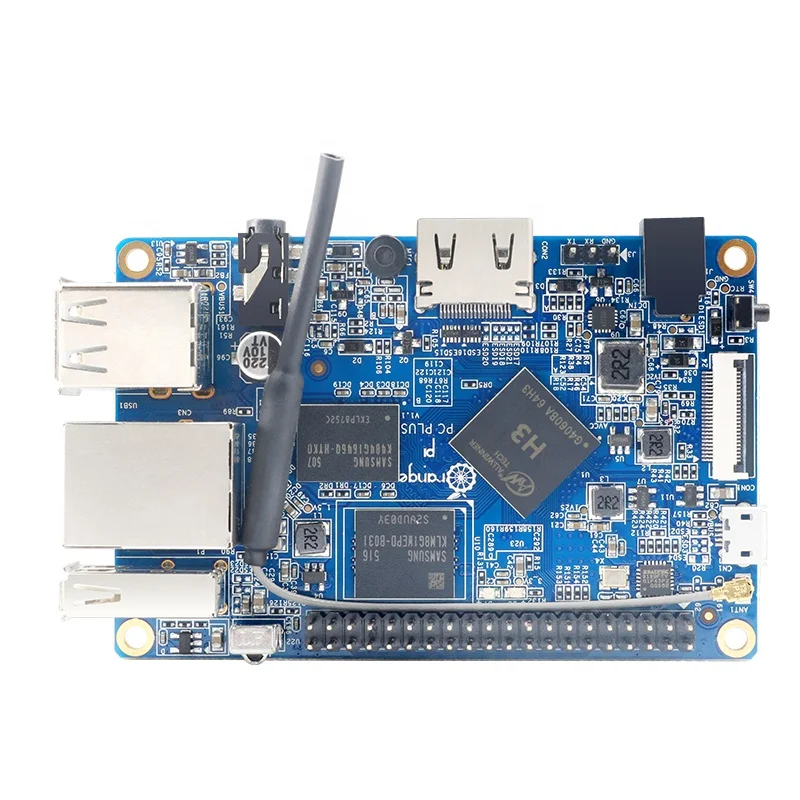

Orange Pi PC Plus Development Board H3 ARM A7 Quad Core Programming MCU Single Board Computer Development Board
Product Description
Hardware specification
CPU
H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU
·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0
Memory (SDRAM)
1GB DDR3 (shared with GPU)
Onboard Storage
TF card (Max. 32GB) / MMC card slot
8GB EMMC Flash
Onboard Network
10/100 Ethernet RJ45
Video Input
A CSI input connector Camera:
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps
Audio Input
MIC
Video Outputs
Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function
Integrated CVBS
Supports simultaneous output of HDMI and CVBS
Audio Output
3.5 mm Jack and HDMI
Power Source
DC input, USB OTG input don't supply power
USB 2.0 Ports
Three USB 2.0 HOST, one USB 2.0 OTG
Buttons
Power button
Low-level peripherals
40 Pins Header
GPIO(1x3) pin
UART, ground.
LED
Power led & Status led
Key
IR input,POWER
Supported OS
Android Lubuntu, Debian Image
Interface definition
Product size
85mm × 55mm
Weight
70g
