Description
Orange Pi i96 ARM A5 32 Bit Android Development Board Single Board Computer Embedded Development Board
Product Description
It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian image. It uses the RDA8810 Soc, and has 256MB LPDDR2 SDRAM.
Hardware specification
CPU
ARM Cortex-A5 32bit
GPU
Separate graphic processor, Vivante's GC860
support OpenGLES1.1/2.0
support OpenVG1.4
support DirectFB
support GDI/DirecShow
30M Triangle/s, 250M Pixel/s
Memory (SDRAM)
Integrated 256MB LPDDR2 SDRAM
Onboard Storage
TF card / Integrated 512MB 8Bit 1.8V 4K SLC Nand Flash
Onboard WIFI+BT
RDA5991, WIFI+BT
Video Input
A CSI input connector Camera

Supports 8-bit YUV422 CMOS sensor interface

Supports CCIR656 protocol for NTSC and PAL

Supports SM pixel camera sensor

Supports video capture solution up to 1080p@30fps
Power Source
USB OTG can supply power
Battery input can supply power(Optional)
GPIO(1x3) pin
UART, ground.
USB 2.0 Ports
One USB 2.0 HOST, One USB 2.0 OTG
Buttons
Power Button(SW602)
Low-level peripherals
40 Pins Header
LED
Power led
Supported OS
Android, Ubuntu, Debian Image
Interface definition
Product size
60 mm*30mm
Weight
30g

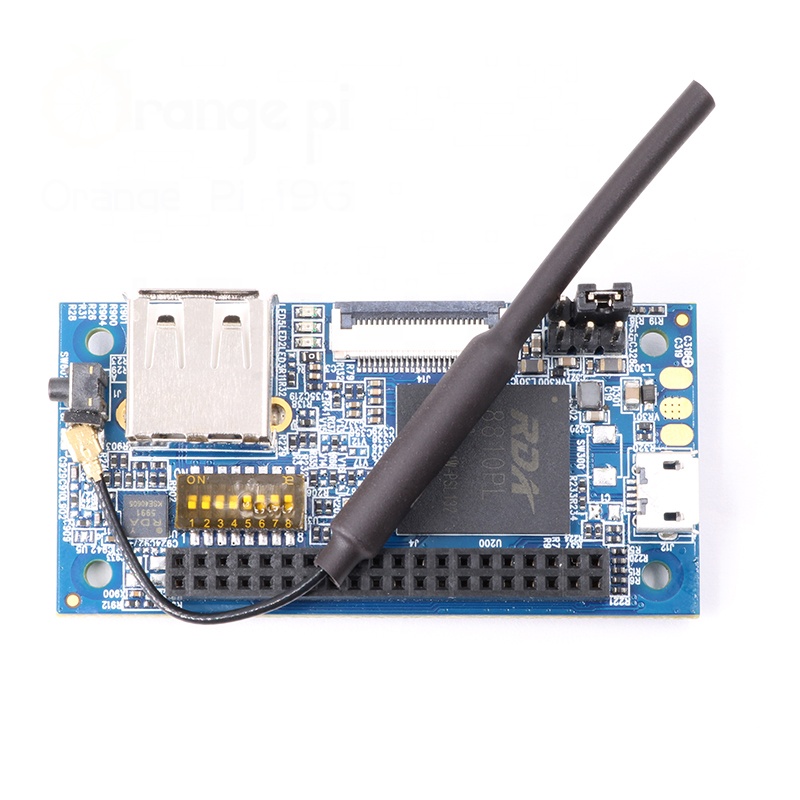

Details Images
