Description

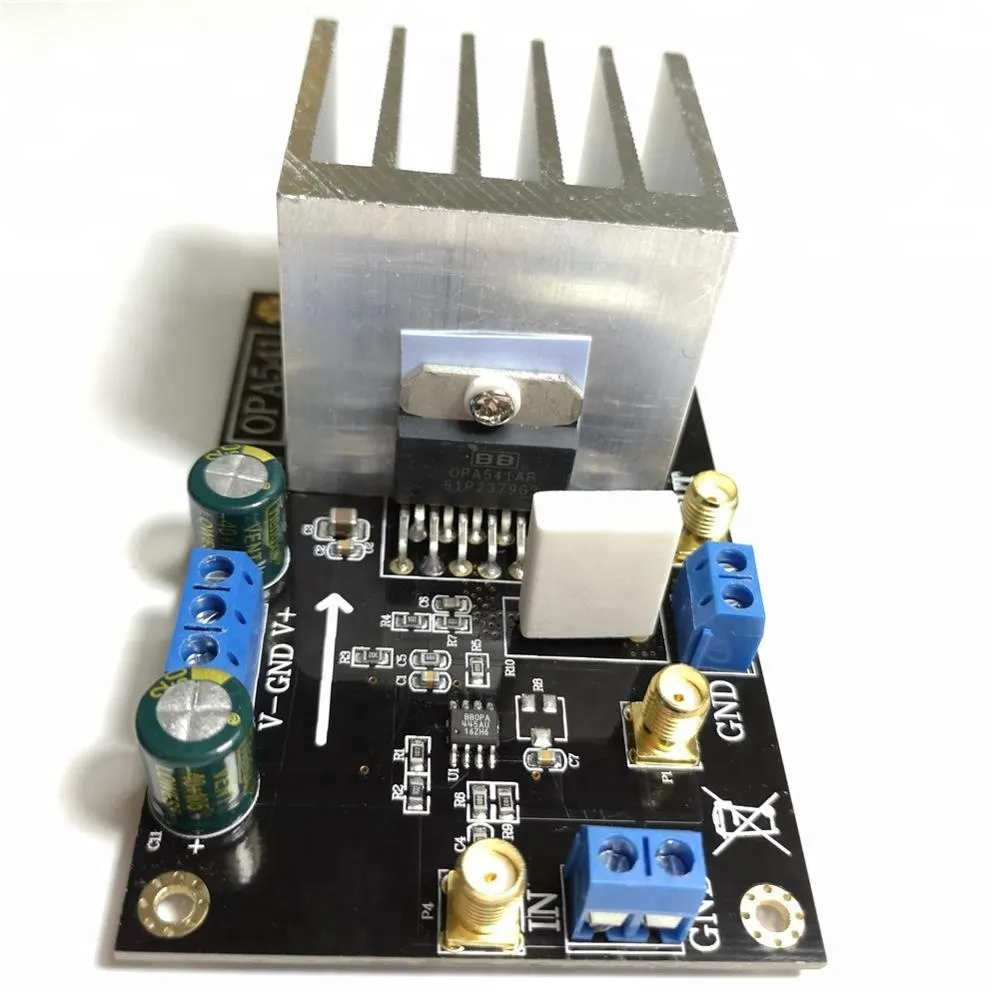

OPA541 40V FET input programmable current limit simple audio amplifier circuit amplifier speaker servo motor amplifier
Name
Parameter OPA541 High Voltage High Current Power Amplifier
Size
96mm*64mm*41mm (length, width, height)
Supply voltage range
±10V~±40V
Highlights This module is a high-voltage, high-current power amplifier that can continuously output up to 5A of current, suitable for motor drives, horn drives, transformer drives, and audio amplifiers. It can also amplify triangular, sine, and square wave signals. The OPA541 chip is a power operational amplifier that can operate from the power supply to 40V and provides continuous output currents up to 5A. The internal current limit circuit can be a single external resistor programming user, protecting the amplifier and the load from disturbance conditions.
Chip features Power supply up to ±40V Output current peak 10A Programmable current limit Industry standard pinout FET input
Chip application motor driven Servo amplifier Synchronous machine excitation audio amplifier Programmable power supply
