Description
Omnidirectional Ball Tilt Switch Rolling Ball Tilt Switch Anti-back 10 15 20 30 45 Roll Ball Tilt Sensor Switches
Product Description

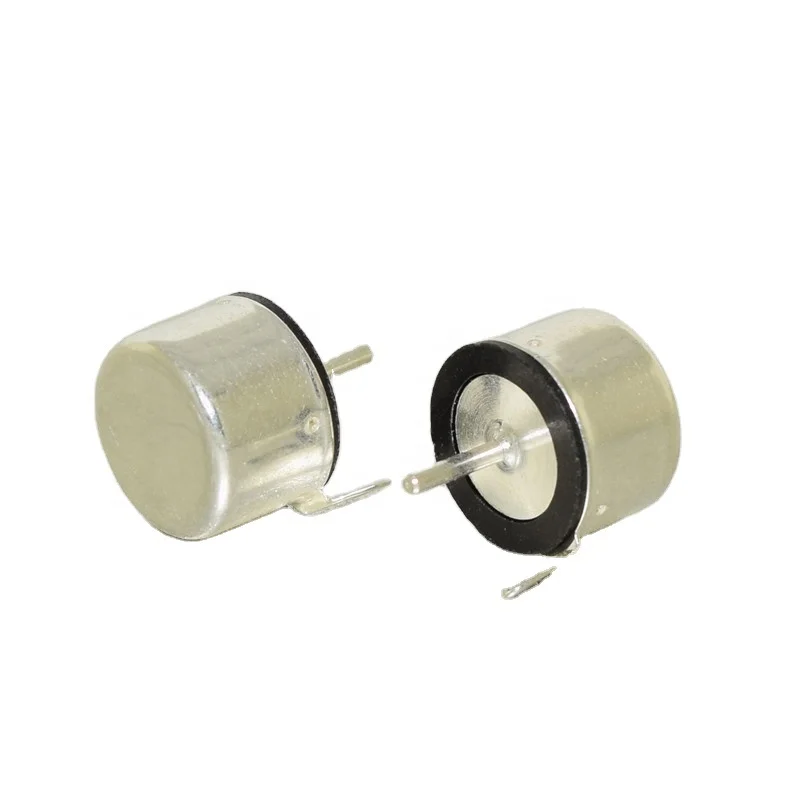

1. Ball type tilt switch
2. This series of switches are tilt switches in all directions with a 360-degree radius.
3. The switch function is ON/OFF tilt conversion, when the switch is at rest, it is non-conducting 0FF state, and the tilt reaches the switch The inclination angle itself requires the switch from the non-conducting OFF state to the conducting ON state. When returning to the horizontal position, the switch is non-conducting and 0FF state.
4. Available: 15 degrees/20 degrees/30 degrees/45 degrees/60 degrees/80 degrees
5. Supply a variety of different mounting type PCB boards. (Horizontal PCB/Vertical PCB/Horizontal flip-chip PCB)
Specification
|
Parameter
|
Function parameter
|
|
Switching voltage: less than 6V
|
Switch shell: metal shell type
|
|
Switching current: less than 20mA
|
Switch function: ON/0FF
|
|
Closed circuit resistance: less than 10 ohms
|
Trigger function: tilt trigger switch
|
|
Open circuit resistance: greater than 10M ohm
|
Trigger direction: 360 downward radius omnidirectional tilt type
|
|
Terminal tension: 500gf/sec
|
Installation requirements: horizontal installation / vertical installation / horizontal inversion
|
|
Working temperature: minus 25 to plus 75 degrees
|
Switch life: 200,000 times of normal use
|
Installation Instructions
How to choose it
H: Double pin type; suitable for horizontal PCB board installation
L: Curved pin type; suitable for vertical PCB board installation
XH: Solder pin type; suitable for horizontal upside-down installation
Straight foot type Supply three suitable horizontal mounting PCB boards for use Available angles: 15, 30, 45, 60, 80 degrees
Curved foot type Supply two suitable vertical mounting PCB boards Available angles: 15, 30, 45, 60, 80 degrees
Solder foot type Supply two suitable water-installed flip-chip PCB boards Available angles: 25, 45, 80 degrees.
Details Images
