Description
Specification
|
Chipset
|
Nordic nRF5340
|
|

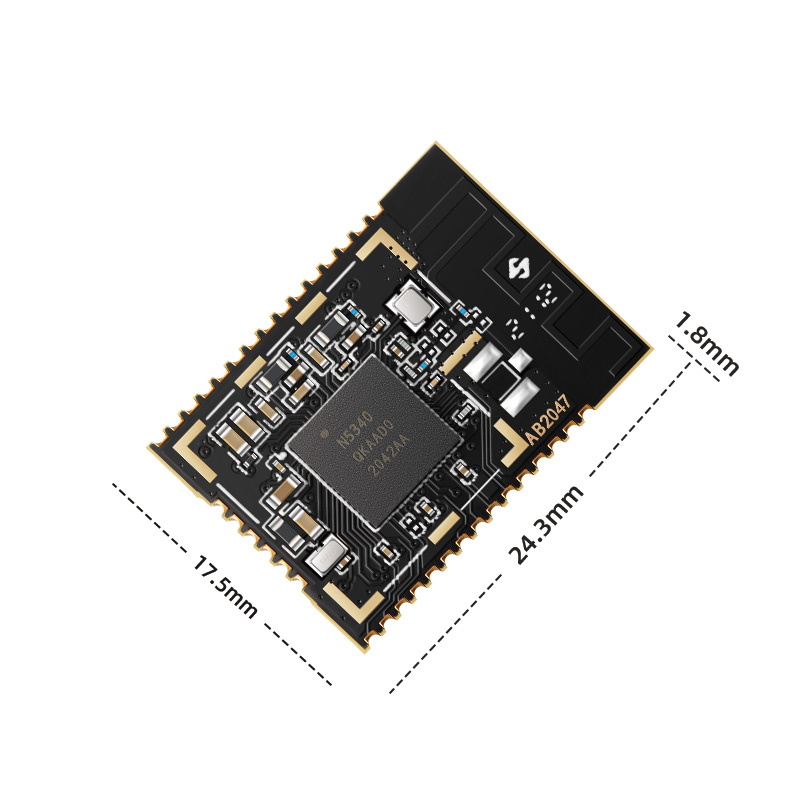

Dimension
|
24.3*17.5*1.8mm
|
|
Antenna
|
PCB Antenna Ext.IPX Antenna
|
|
Operating Temperature
|
-25~+85°C
|
|
Power Supply
|
1.7~5.5V
|
|
Transmit Power
|
+3dBm to-20dBm
|
|
Receiver Sensitivity
|
-97.5dBm@BLE1M
|
|
Protocol
|
BLE 5.0/ 2.4GHz/ Mesh/ ANT/802.15.4/Thread/ Zigbee/ NFC
|
|
TX
|
2.6mA
|
|
RX
|
3.2mA
|
|
Flash/RAM
|
1MB/512KB;256KB/64KB
|
|
GPIO
|
46/Ext.32K Crystal
|
* Nordic nRF5340 with ARM Cortex M33F Dual-core processor * Multiprotocol support :Bluetooth 5, Bluetooth Mesh , ANT/ANT+, 2.4GHz proprietary, 802.15.4, * Bluetooth 5.0: 2/1Mbps, 500 bps, 125 kbps * IEEE 80215.4-2006:250 kbps * Proprietary 2.4 GHz: 2 Mbps, 1 Mbps * Bluetooth 5.1 Direction Finding AOA/AOD
* Integrated DC-DC converter
* Serial wire Debug (SWD)
* Nordic SoftDevice Ready
* Over-the-Air (OTA) firmware update
* 46 General purpose I/0 pins
* No external components required
* 15 level low-power comparator with wake-up from System OFF mode
