nRF51822 iBeacon Module Portable IoT ibeacon Base Station Broadcast Location Device Proximity Beacon ibeacon Tags
Product Description
The 51822-iBeacon wireless module is developed using Nordic's high-performance wireless SOC chip NRF51822. It is a complete low-cost, low-power design for Ble low energy applications. NRF51822 multiplies or has high-performance low-power CortexM0 microcontroller core, and supports BLE4.0 protocol stack for Ble applications and rich peripheral interfaces. The module is equipped with an independent programming interface, which is convenient for users to program and debug. Equipped with buttons, long press can control the module's broadcast and sleep, and the mobile phone APP can modify the module's parameters.
Feature
●2.4-GHz conforms to low energy consumption specifications and proprietary RP on-chip system ●Support up to 4 dBm programmable output power ●Support I0S7.0, Android 4.3 or above ●Distance: 30 meters ●The current is only about 2.7ua when not broadcasting ●High performance and low power consumption enhanced CortexMO microcontroller core ●Using Ble low energy Ble v4.0 protocol stack ●256KB Flash and 16KB SRAM for system program ●Small size diameter: 25.0mm, thickness: 4.6mm ●Onboard PCB antenna ●Working voltage: 1.8V~3.6V
Product Paramenters
Application
--Indoor navigation
--mobile payment
--in-store promotions specialist
--flow analysis
--Broadcasting Advertisement
--mobile payment
--in-store promotions specialist
--flow analysis
--Broadcasting Advertisement
|
Voltage Supply
|
2.0-3.6v
|
DC
|
|
Working Frequency
|
2402 - 2483.5Mhz
|
Programmable
|
|
Flash(KB)
|
256/128
|
|
|
Number of channels
|
40
|
|
|
Modulation
|
GFSK
|
|
|
Output Power
|
-20dBm~4dBm
|
Programmable
|
|
Receiving Sensitivity
|
-91dBm
|
Dirty transmitter Mode
|
|
TX Current
|
10.5mA
|
|
|
RX Current
|
13mA
|
|
|
Standby current
|
2.7uA
|
Stop broadcasting
|
|
Transmission rate
|
1Mbps
|
|
|
Antenna form
|
PCB Antenna
|
|
|
Chip flash
|
256KB
|
|
|
Chip RAM
|
16KB
|
|
|
Transmit Distance
|
>30M
|
0dBm
|
|
Storage temperature
|
-40~ 125°C
|
|
|
Operating temperature
|
-20~75°C
|
|
|
Size
|
24mm*4.5mm
|
Note
Due to the shipment methods limited, it do not include the battery.

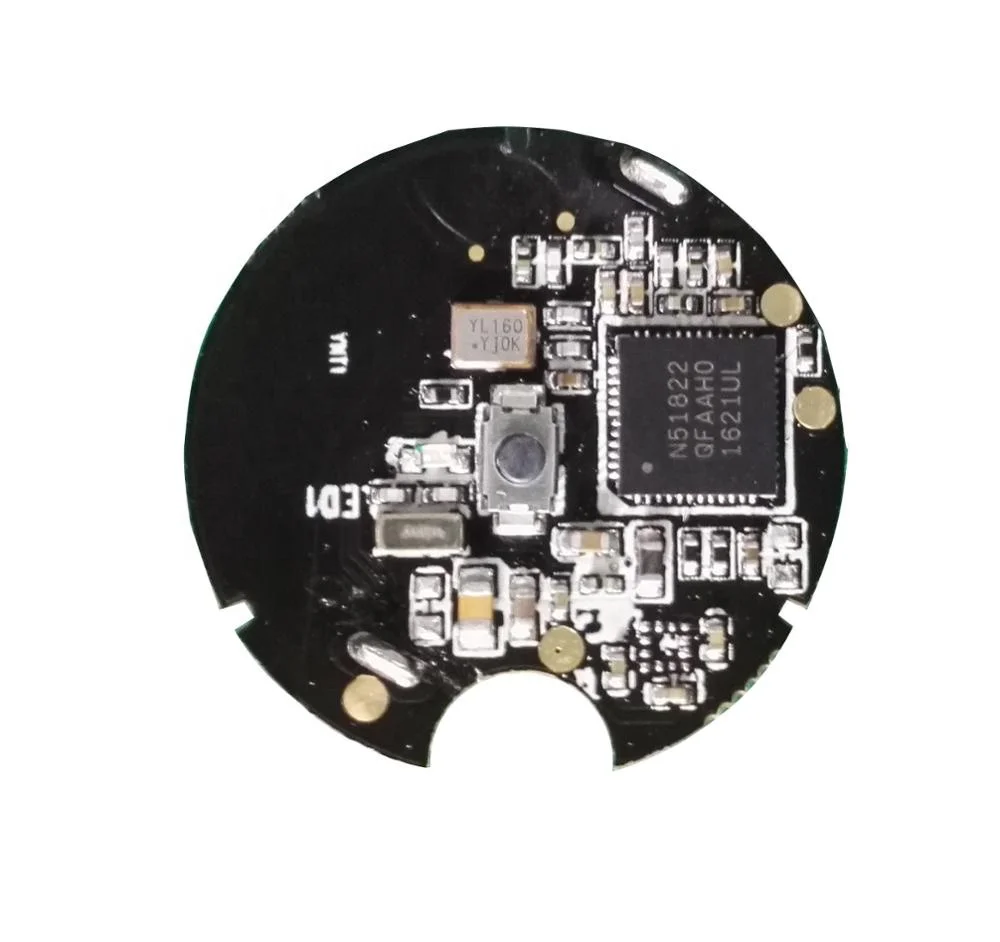

Details Images
