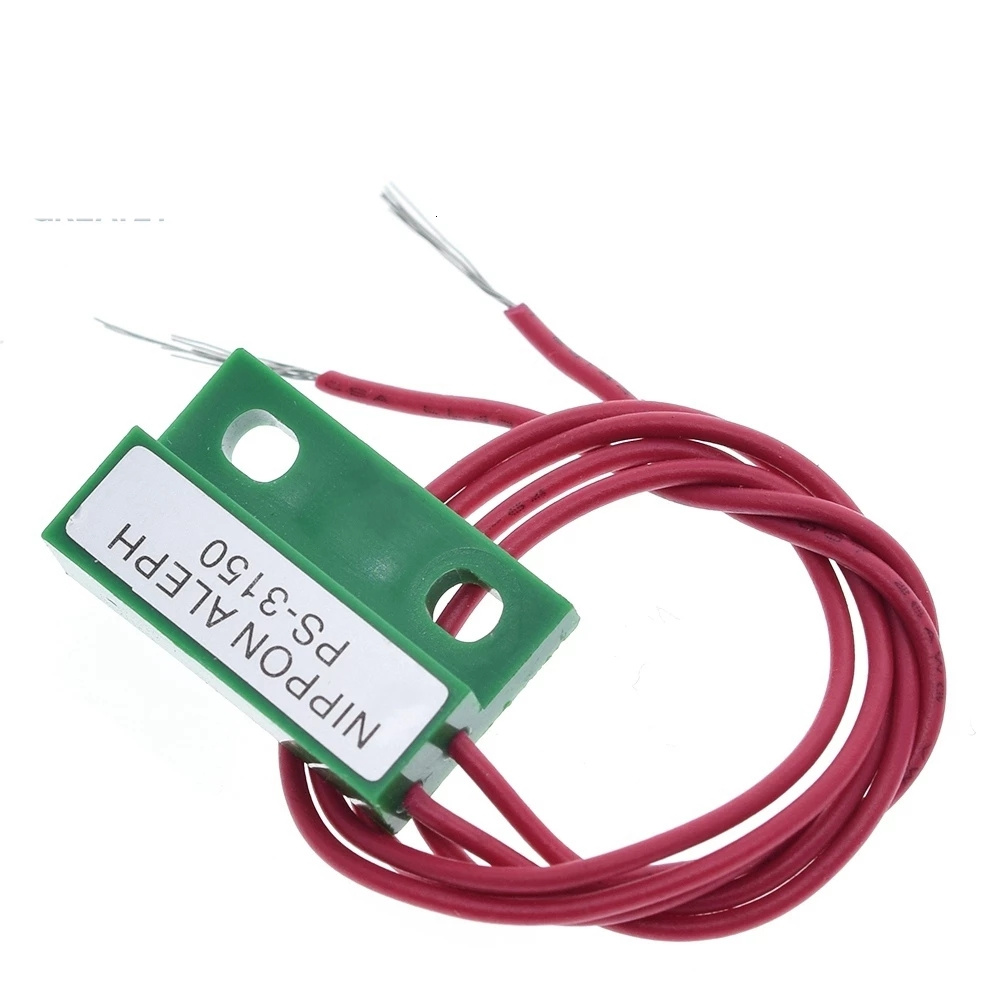

Normally open proximity magnetic sensor reed switch magnetic switch PS-3150 Perfect

sensor module
$1.50
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
Product Description
Model: C PS-3150 Parameter test condition unit feature: Fast moving Suitable for high frequency products Has high corrosion
resistance, contact resistance and wear resistance Long life, stable switching operation can be obtained The control part of the
seal in the housing is not affected by the external environment Range of use: All controls can be used to detect magnetic
switches: in liquid level sensors, security alarm systems, proximity sensors, instrumentation, automotive electronics, magnetic
switches, treadmills, odometers and other control circuits Operating characteristics: Working AT10-30 range Scope of issuance
ATMin 5 Working time (maximum) (power on) ms1.0 Rebound time (longest) (power on) ms1.5 Release time (maximum) (power on) ms1.0
Resonance frequency (typical value) HZ4000 Electrical characteristics: Switching power supply (maximum) W10 DC switching voltage
(maximum) V220 AC switching voltage, effective value (maximum) V220 DC switching current (maximum) mA500 AC switching current,
effective value (maximum) mA500 Breakdown voltage (minimum) V250 Contact resistance (initial maximum value) M W200 Contact
resistance (initial typical value) M W100 Contact capacitance (maximum) without test coil pF0.7 Insulation resistance (minimum)
RH£45%M W103 Quantity: 1
