Description
Specification
Chipset
Nordic nRF52832

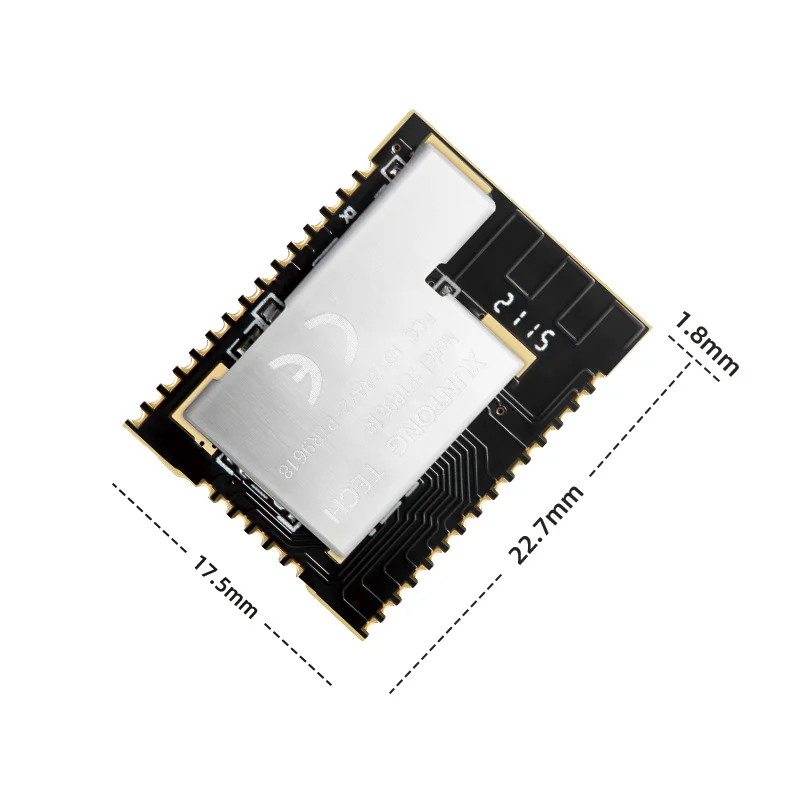

Dimension
22.7*17.5*1.8mm
Frequency
2.360GHz to 2.500GHZ
Antenna
PCB Antenna
Operating Temperature
-25~+85°C
Power Supply
1.7~3.6V
Transmit Power
+4 dBm
Receiver Sensitivity
-96dBm(BLE mode)
Protocol
BLE 5.0/ 2.4GHz/ Mesh/ANT
TX
5.3mA
RX
5.4mA
Flash/RAM
512KB/64KB
GPIO
32
* 12-bit/200KSPSADC
* Three SPI Master/Slave(8 Mbps)
* Low power comparator, Temperature sensor, Random Number Generator
* Two 2-wire Master/Slave (12C compatible)
* I2S audio interface, PDM audio interface
* UART(w/ CTS/RTS and DMA)
* 3x4-channelPWMs
* 20 channel CPU independent Programmable Peripheral Interconnect (PPI)
* Quadrature Demodulator (QDEC)
* 128-bit AES HW encryption * No external components required * 5 x 32bit Timers, 3 x 24bit Real Timer Counters (RTC), Watchdog Timer * NFC-A tag interface for OOB pairing * OTA firmware updates available * Complete Bluetooth Low Energy stack/profiles solution (Bluetooth 4.x and Higher)
