Nordic nRF52805 Built-in 2.4Ghz RF transceiver Multi-Protocol Wireless Communications BLE module--shop.rfid-life.com

BLE module

$3.80
Quantity

Description

Specification
Chipset
Nordic nRF52805

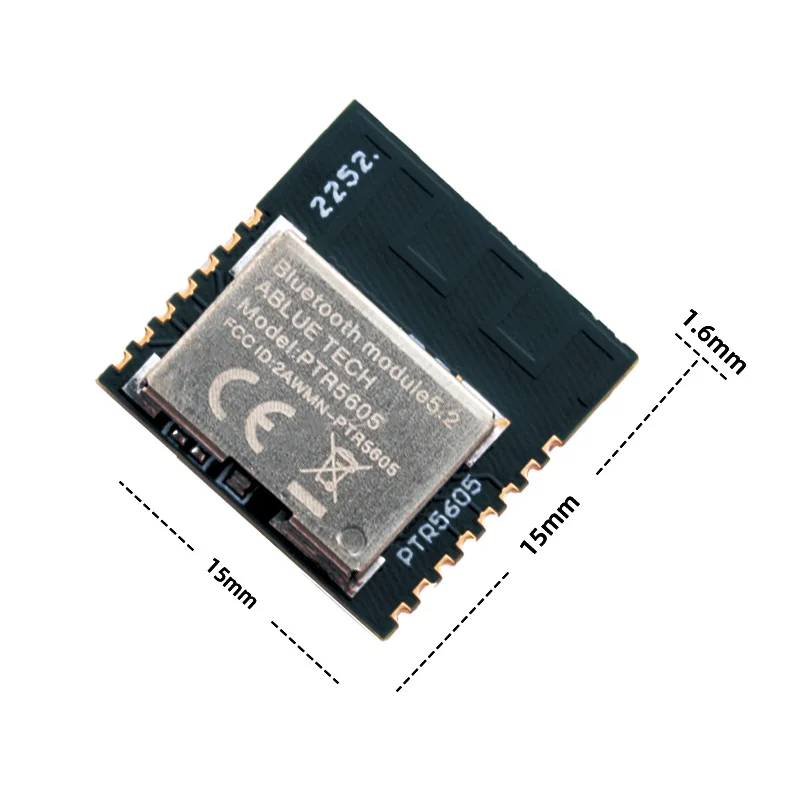

Dimension
15*15*1.6mm
Protocol
BLE 5.0/ 2.4GHZ/ ANT
Antenna
PCB Antenna
Operating Temperature
-25~+85°C
Power Supply
1.7~3.6V
Transmit Power
-20~+4 dBm
Receiver Sensitivity
-95 dBm(BLE mode)
TX
4.6mA
RX
4.6mA
Flash/RAM
192KB/24KB
GPIO
10
* System on Module(SOM) base on Nordic nRF52805 * Bluetooth Low Energy/ANT/2.4GHz Proprietary Multi-protocol support * Complete Bluetooth Low Energy stack/profiles solution (Bluetooth 5.x) * ARM· Cortex"-M4 32 bit processor, 192 kB flash memory, 24 kB RAM * 10 General Purpose l/0, Configurable mapping Pins, Simple layout of external application
* 12-bit/200KSPS ADC, SPl, Random Number Generator
* CPU independent Programmable Peripheral Interconnect (PPI)
* 3 x 32bit Timers, 2 x 24bit Real Timer Counters (RTC), Watchdog Timer
* Internal RC Oscillator 32.768 kHz(+ 250 ppm), No external components required
Pin Images
