Description
Specification
Chipset
Nordic nRF24L01P+PA+LNA

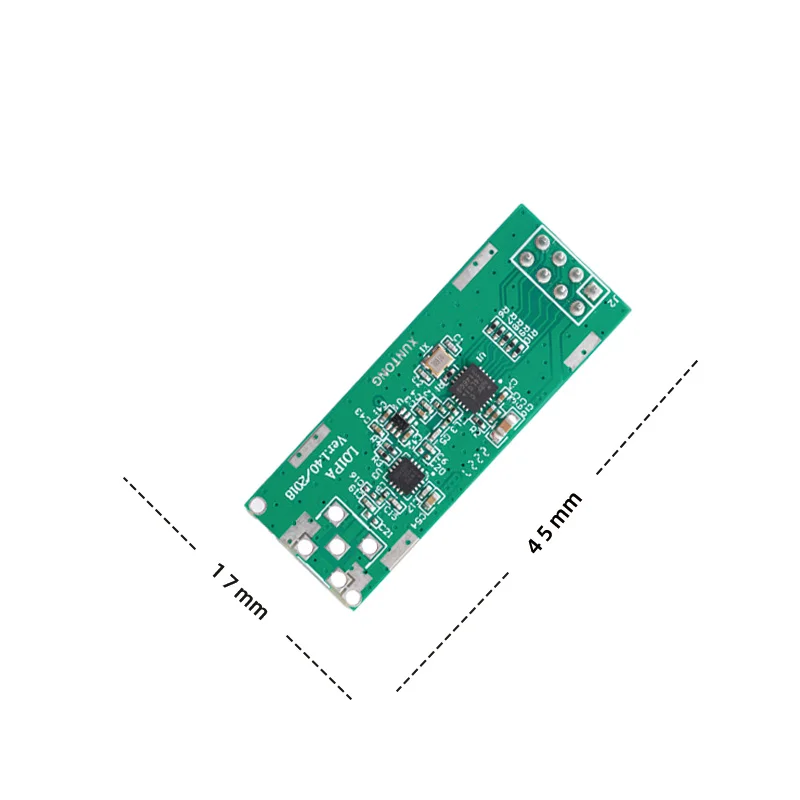

Dimension
45*17mm
Power Supply
2.7~3.6V
Protocol
2.4GHz
RX
18mA
TX
100mA
GPIO
8
* 2.4GHzISM Band * 5V tolerant input signal for data l/0 * Digitalinterface SPI speed:0~8Mbps * Base On nRF24L01+&PA&LNA, Full RF tested * High Speed: Data rate 250Kbit/s,1Mbit/s,2Mbit/s * SMA Antenna interface
* Enhanced Output Power: maximum output power:Max +20dBm
* Enhanced ShockBurstTM:
MultiCeiverTM-6 data pipes
Auto acknowledgement
Auto re-transmission
Packet identity
Carrier sense-stationary disturbance
Packet error counter
Three level deep RX FIFO and three level deep TX FIFO
