Description
Product Description

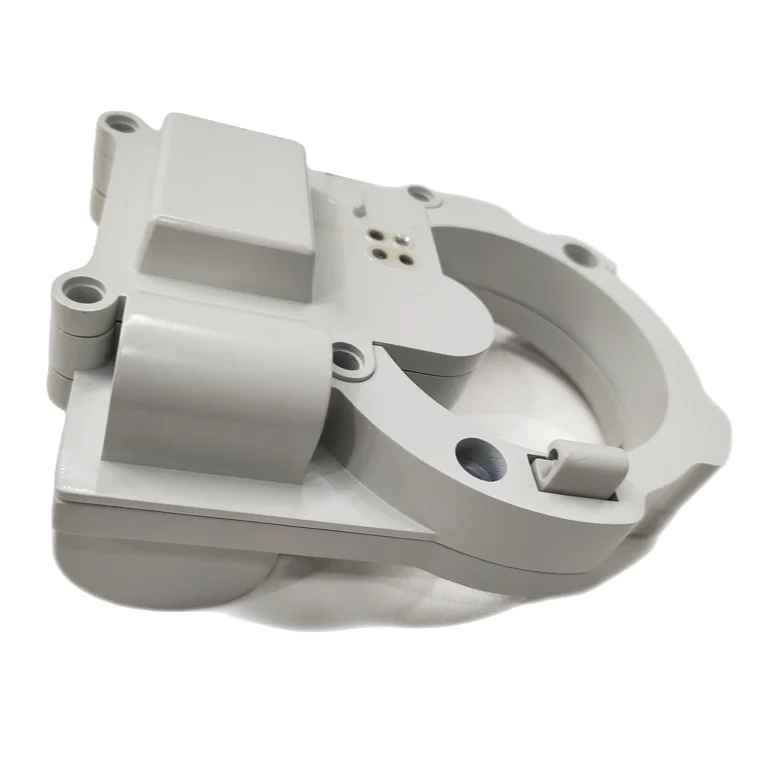

Used for remote wireless meter reading, compatible with all Diehl meters with standard bayonet and induction coil, set non-magnetic metering collection, communication transmission in one of the low power products,
the product can resist magnetic interference, support NB-iot or LoRaWAN wireless remote transmission function;
The LoRaWAN module helps to optimise usage of natural resources in the gas metering industry and gain substantial productivity.
Specification
Project
Parameter
Battery power supply
last 10 years lifetime
NB-IOT supported working band
700\850\900\1800MHz or nB-iot band supported by local operators, no need to apply for frequency points
LoRaWAN supports the following frequency bands
CN470, EU868, RU864, IN865, and AS923
Support touch button to report the data
-10℃ ~ 55℃
With magnetic attack alarm,low battery voltage alarm and disassemble alarm function etc.
-25 ~ 70℃
Valve position switch status detection, valve control circuit, automatic dredge valve, support for near end maintenance, etc.
>99.9%
Valve position switch status detection, valve control circuit, automatic dredge valve, support for near end maintenance, etc.
UL94-V0
Support infrared parameters configuration and upgrading function
IP68
The data will be saved when the power is off.
-139 +/ -1dbm
IP67 protection degree
NB: 23 +/ -2dbm
With CE & FCC certification
≤ 32
Easy installation, high reliability and strong expansibility.
