Description
Non Contact Level Switch Auto Water Pump Float Switch Water Level Controller Pipeline High Low Water Level Sensor
Product Description

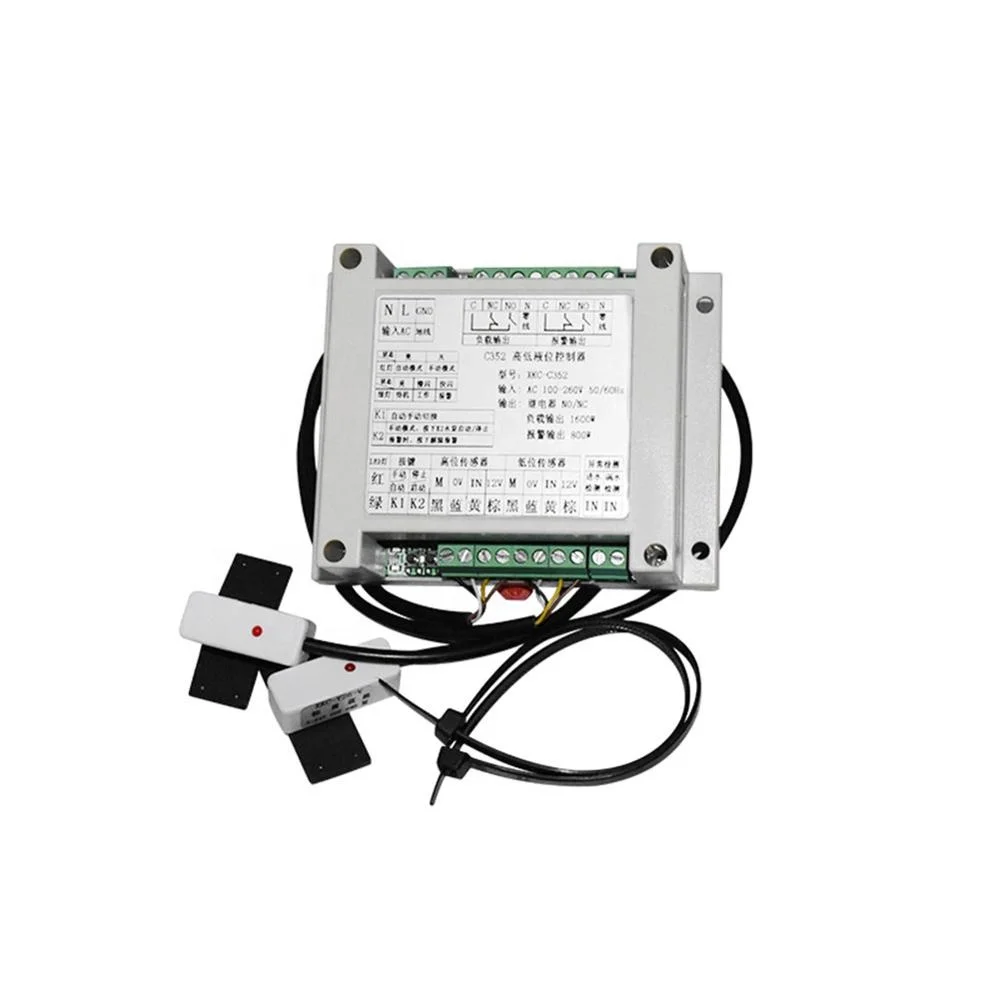

C362 high and low level controller and XKC-Y26-V two liquid level detection heads realize the level control function: when the container level is too low, trigger the low level alarm signal from the low level sensor to trigger the C362 controller to close the relay to start the pump Add liquid level, when the liquid level reaches a certain height, the high liquid level sensor sends a signal to trigger the C362 controller to open the relay to automatically stop the pump, so the cycle works. Thus, the function of automatically controlling the level of the container liquid level is realized, and the container liquid level is kept stable.
Features
1.AC95 ~ 265V wide voltage power supply 2. Relay dry node output, suitable for various load control 3. Diversified control, the pump can be controlled manually or automatically 4. Simple and convenient installation, can be installed by screw positioning or electric box rail
Electrical parameters
Name: C362 high and low liquid level automatic controller Input voltage: AC100V-220V, 50 / 60Hz Working voltage: DC12V Working current: working current ≤110 mA, static current consumption ≤20mA Load power: less than 1.6KW (overload or for three-phase pumps need to install AC contactor) Alarm output: 800W (resistive load) normally open normally closed output Output mode: relay normally open or normally closed or AC 110V / 220V Input signal: low-level induction signal input; high-level induction signal input; Sensor head interface voltage: DC 12V Working temperature: -10 ~ 75 ℃ Dimension: 115 * 90 * 40
|
Introduction to basic functions
|
||
|
1
|
Automatic water level control: the water level is lower than the low-level induction probe, the water pump is automatically started, the water level rises to a high level, and the water pump is automatically turned off.
|
|
|
2
|
Pumping overtime protection: continuous automatic pumping for more than 5 hours, automatically stop the pump. The work indicator flashes quickly, you can press the K2 key to stop, or automatically resume standby by delay.
|
|
|
3
|
Manual automatic switching: The controller enters the automatic working mode by default when it is turned on. Press the K1 key to switch the working mode. The red light is on for the automatic mode, and the red light is off for the manual mode.
|
|
|
4
|
Non-contact inductive probe: It adopts non-contact capacitive sensing technology and special inductive control chip design. The probe is durable, strong anti-interference ability, sensitive inductive, non-contact with liquid, anti-corrosion, safe and environmental protection without pollution.
|
|
