Product Description:

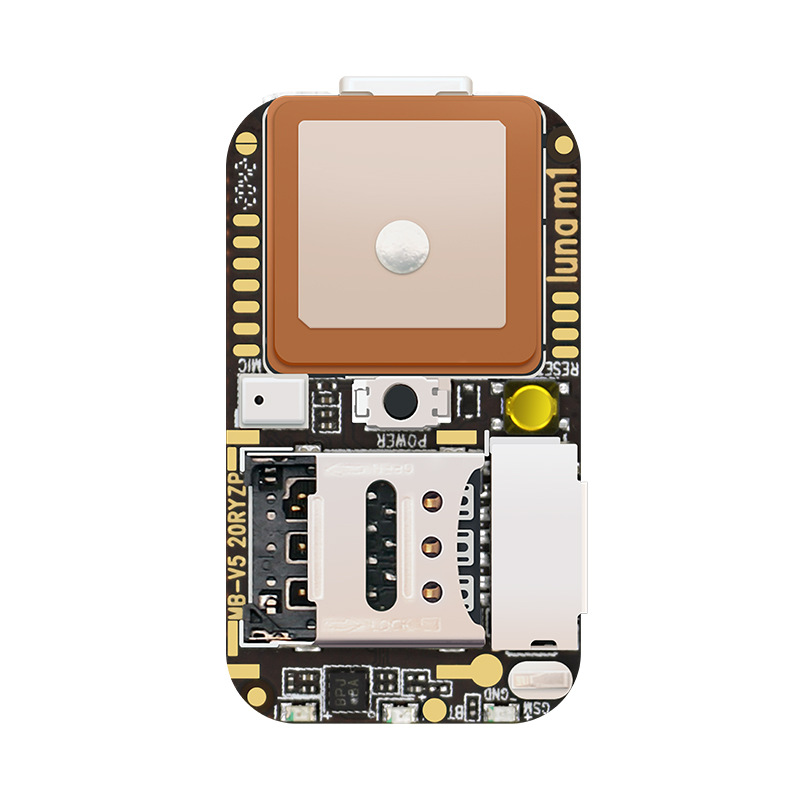

New Smart home products FR4 custom PCB assembly GPS PCBA OEM ODM Manufacturer in Shenzhen
Product Description
| NO. | PCB, PCBA print circuit boards | Manufacture capacity |
| 1 | Layer Counts | 1-8Layer |
| 2 | Base Material | PI / FR4 / PET / Steel piece |
| 3 | Copper foil thickness | 1/3oz to 3oz |
| 4 | Board thickness | 0.4-3.2mm |
| 5 | Max. board size | 400*800 mm |
| 6 | Product thickness tolerance | ±0.03mm |
| 7 | Min. Hole Diameter | 0.2mm |
| 8 | Min.Line Width/ Distance | 0.1mm |
| 9 | Etching tolerance | ±0.015mm |
| 10 | PTH Hole dia. tolerance | ±0.03mm |
| 11 | NPTH Hole dia. tolerance | ±0.05mm |
| 12 | Outline Dimension tolerance | ±0.075mm |
| 13 | Outline profile | Punching / Laser cut / Drilled |
| 14 | Surface finish | HASL / OSP / ENIG / Immersion Gold/Silver/Tin/Ni |
| 15 | Solder mask color | Yellow/ Green, as request |
| 16 | Silkscreen color | White/Black, as request |
|
17 |
Acceptable file format | CAD / Gerber file / powerpcb / Autocad Orcad/ P-cad / CAM-350 / CAM2000 |
