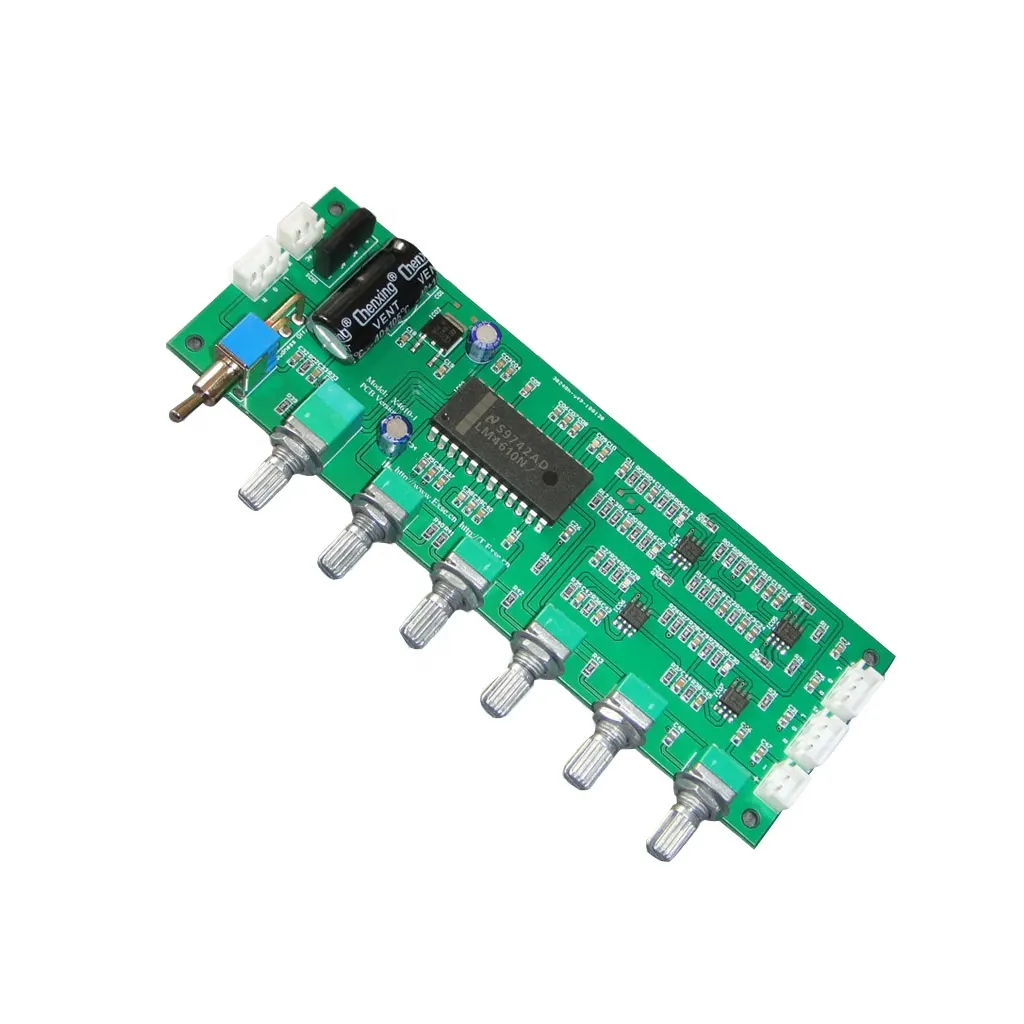

NE5532 LM4610N 2.1 Channel Amplifier Board Sound Board Panels Audio Amplifier Circuit Board
Product Description
NE5532 LM4610N 2.0 2.1 pre-tuning 3D sound board
Specification
|
item
|
value
|
|
|
Onboard Chip
|
LM4610N & NE5532
|
|
|
Number of channels
|
2-channel input, 2-channel output or 3-channel output
|
|
|
Input power
|
low frequency 22Hz -150Hz Medium and high frequency 150Hz-22KHz full frequency 22Hz-22KHz
|
|
|
Adjustment range
|
treble ±15dB (at 16KHz) bass ±15dB (at 40Hz), balance 1~20dB, volume 75dB
|
|
|
Signal to noise ratio
|
80dB
|
|
|
Total Harmonic Distortion
|
0.0003
|
|
|
Product size
|
150*50* 18mm(L*W*H) without potentiometer handle length
|
|
|
2.0 Use the full frequency output port; 2.1 Use the mid-high frequency output + low frequency output or the full frequency output+ low frequency output
|
||
