Description
Product Description

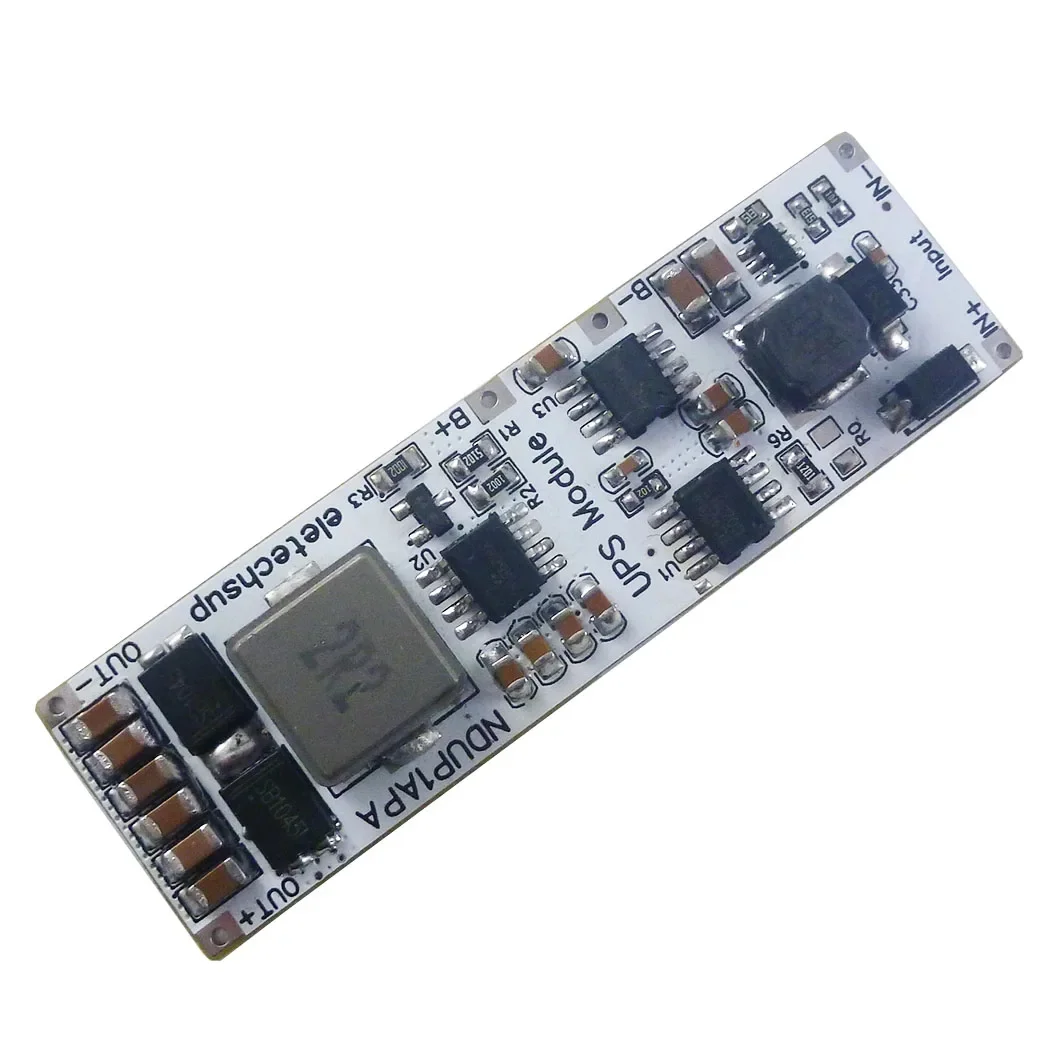

NDUP1APA 3A 5V 6V 9V 12V 15V 24V UPS Module 15W 3.7V 4.2V Li-on Li-po Lithium Battery Charge&Discharge for WIFI Network Router
Introduction
2 in 1 Charge and Discharger(Boost) UPS modules
Input voltage : DC 5V/6V/9V/12V/15V/24V
Output voltage : Equal to the input voltage (Because the input and output ends are isolated by Schottky diodes, there is a voltage difference of 0.2-0.6V)
Output Power : 15W
Full charge Voltage : 4.20V(+-1%)
Power off switching time: 10MS
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°
Size: 60*18*6MM(Suitable for 18650 battery)
Weight :8g
The maximum allowed load power is 15W. The parameters of each version are as follows:
5V Version : Input 5-5.5V,Output 5V/3A
6V Version : Input 6-6.5V,Output 6V/2.6A
9V Version : Input 9-10V,Output 9V/1.7A
12V Version : Input 12-13V,Output 12V/1.3A
15V Version : Input 15-16V,Output 15V/1A
24V Version : Input 24-25V,Output 24V/0.5A
Working Principle:
1 Input port input voltage, output port output voltage (Vout=Vin-0.2~0.6V)
2 If the battery is not fully charged, recharge the battery.
3 If the input port voltage disappears, the battery is discharged, and the voltage is boosted and output from the output port.
Applications:
WIFI router network equipment uninterrupted power supply
Uninterrupted power supply for industrial equipment such as PLC/HMI/industrial control host
Battery powered equipment
LI-ON LI-PO Lithium Battery 18650 14500
UPS power supply equipment diy
Solar charging
Electronic diy kit
Input voltage : DC 5V/6V/9V/12V/15V/24V
Output voltage : Equal to the input voltage (Because the input and output ends are isolated by Schottky diodes, there is a voltage difference of 0.2-0.6V)
Output Power : 15W
Full charge Voltage : 4.20V(+-1%)
Power off switching time: 10MS
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°
Size: 60*18*6MM(Suitable for 18650 battery)
Weight :8g
The maximum allowed load power is 15W. The parameters of each version are as follows:
5V Version : Input 5-5.5V,Output 5V/3A
6V Version : Input 6-6.5V,Output 6V/2.6A
9V Version : Input 9-10V,Output 9V/1.7A
12V Version : Input 12-13V,Output 12V/1.3A
15V Version : Input 15-16V,Output 15V/1A
24V Version : Input 24-25V,Output 24V/0.5A
Working Principle:
1 Input port input voltage, output port output voltage (Vout=Vin-0.2~0.6V)
2 If the battery is not fully charged, recharge the battery.
3 If the input port voltage disappears, the battery is discharged, and the voltage is boosted and output from the output port.
WIFI router network equipment uninterrupted power supply
Uninterrupted power supply for industrial equipment such as PLC/HMI/industrial control host
Battery powered equipment
LI-ON LI-PO Lithium Battery 18650 14500
UPS power supply equipment diy
Solar charging
Electronic diy kit
Pin Description:
IN+ :Power Input Positive
IN- :Power Input Negative
B+ :Battery Charging Positive
B- :Battery Charging Negative
OUT+:Load Output Positive
OUT- :Load Output Negative
IN+ :Power Input Positive
IN- :Power Input Negative
B+ :Battery Charging Positive
B- :Battery Charging Negative
OUT+:Load Output Positive
OUT- :Load Output Negative
