Description

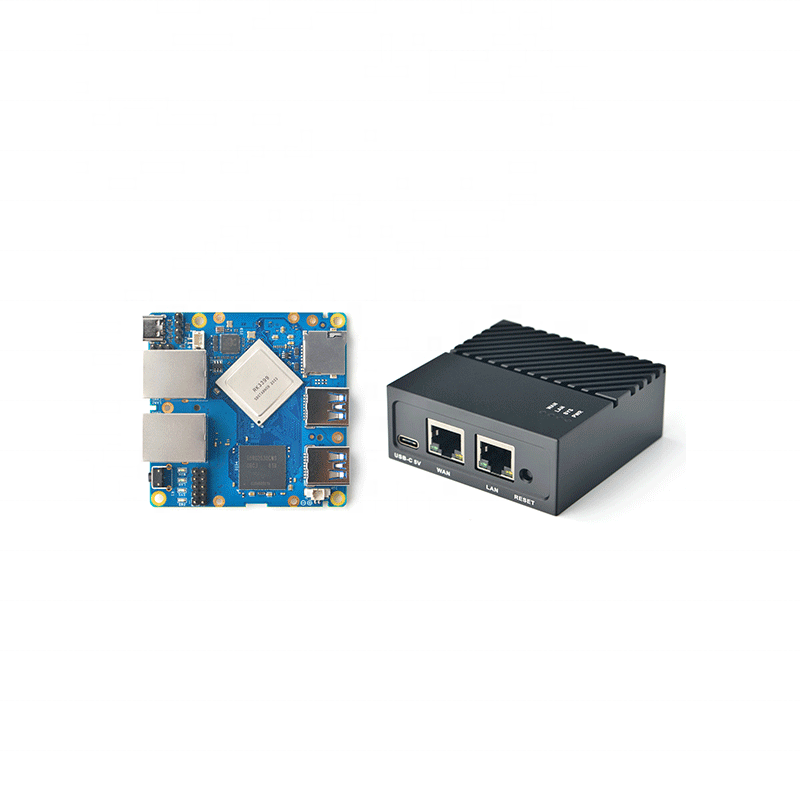

NanoPi R4S Wireless Mini Router 4GB RK3399 SoC Dual Gigabit Ethernet Port Development Board With CNC Shell For IOT NAS
Product Description
* The NanoPi R4S(as "R4S") is an open source platform with dual-Gbps Ethernet ports for IoT applications.
* The NanoPi R4S uses the RK3399 SoC. It has two Gbps Ethernet ports and 1G/4G DDR4 RAM. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications, smart home gateways etc.
* The NanoPi R4S uses the RK3399 SoC. It has two Gbps Ethernet ports and 1G/4G DDR4 RAM. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications, smart home gateways etc.
Specification
* SoC: Rockchip RK3399 * CPU: big.LITTLE，Dual-Core Cortex-A72(up to 2.0GHz) + Quad-Core Cortex-A53(up to 1.5GHz)
* GPU: Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, and AFBC
* VPU: 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
* PMU: RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
* RAM: 1GB DDR3/4GB LPDDR4
* Flash: no Onboard eMMC
* Ethernet: one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet
* USB: two USB 3.0 Type-A ports
* Pin header extension interface * 2x5-pin header: SPI x 1, I2C x 1
* 4-pin header: USB 2.0
* microSD Slot x 1
* Debug: one Debug UART, 3 Pin 2.54mm header, 3V level, 1500000bps
* LEDs: 1 x power LED and 3 x GPIO Controlled LED (SYS, LAN, WAN)
* others: * 2 Pin 1.27/1.25mm RTC battery input connector
* one User Button
* one 5V Fan connector
* Power supply: DC 5V/3A, via USB-C connector or Pin header
* PCB: 8 Layer, 66 mm x 66 mm
* Temperature measuring range: 0℃ to 80℃
* GPU: Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, and AFBC
* VPU: 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
* PMU: RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
* RAM: 1GB DDR3/4GB LPDDR4
* Flash: no Onboard eMMC
* Ethernet: one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet
* USB: two USB 3.0 Type-A ports
* Pin header extension interface * 2x5-pin header: SPI x 1, I2C x 1
* 4-pin header: USB 2.0
* microSD Slot x 1
* Debug: one Debug UART, 3 Pin 2.54mm header, 3V level, 1500000bps
* LEDs: 1 x power LED and 3 x GPIO Controlled LED (SYS, LAN, WAN)
* others: * 2 Pin 1.27/1.25mm RTC battery input connector
* one User Button
* one 5V Fan connector
* Power supply: DC 5V/3A, via USB-C connector or Pin header
* PCB: 8 Layer, 66 mm x 66 mm
* Temperature measuring range: 0℃ to 80℃
Installation Instructions
|
2x5-pin header
|
value
|
|||||
|
Pin#
|
Assignment
|
Pin#
|
Assignment
|
|||
|
1
|
VDD_5V
|
2
|
VDD_3.3V
|
|||
|
3
|
VDD_5V
|
4
|
GPIO4_C0/I2C3_SDA(3V)
|
|||
|
5
|
GND
|
6
|
GPIO4_C1/I2C3_SCL(3V)
|
|||
|
7
|
GPIO1_B1/SPI1_CLK
|
8
|
GPIO1_B0/SPI1_TXD/UART4-TX
|
|||
|
9
|
GPIO1_B2/SPI1_CSn
|
10
|
GPIO1_A7/SPI1_RXD/UART4-RX
|
|||
|
4-pin header
|
||||||
|
1
|
2
|
3
|
4
|
|||
|
VDD_5V
|
USB_DM
|
USB_DP
|
GND
|
|||
|
Debug UART Pin Spec
|
||||
|
3V level signals, 1500000bps
|
||||
|
Pin#
|
Assignment
|
Description
|
||
|
1
|
GND
|
0V
|
||
|
2
|
UART2DBG_TX
|
output
|
||
|
3
|
UART2DBG_RX
|
intput
|
||
USB Port
Each USB 3.0 port has 2A overcurrent protection.
Each USB 3.0 port has 2A overcurrent protection.
RTC
RTC backup current is 27uA.Connector P/N: Molex 53398-0271
Notes
1. Power Input : 5V/3A, via USB Type-C(USB PD Specification is not supported) or Pin1&Pin2 of the 2x5-pin header
Details Images
