Description
NanoPi NEO serials OLED programming driver open source support NanoPi NEO NEO2 Air NanoHat OLED module

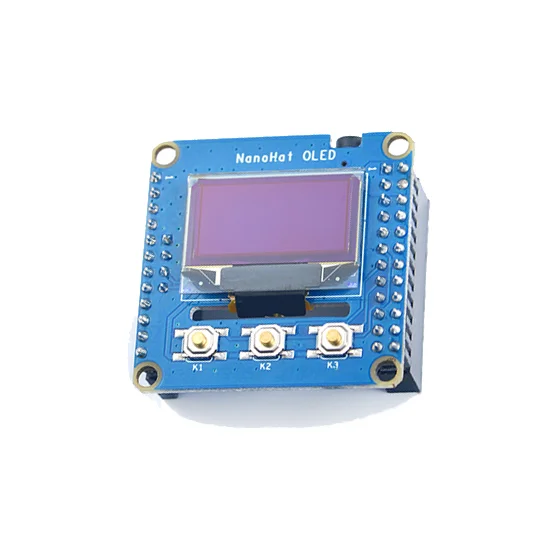

NanoHat OLED is a small and cute monochrome OLED module with low power consumption. It is 0.96". Its resolution is 128 x 64. It communicates with a master device with I2C. The NanoHat OLED module has the same form factor as FriendlyElec's NanoPi NEO. It can be stacked on a NanoPi NEO. It has three onboard programmable user buttons. It has an onboard 3.5mm Aduio jack connector and a USB Type A connector.
Hardware Spec LCD Size:0.96" Resolution: 128 x 64 High Contrast, Low Power Consumption 3 x Onboard Button PCB Dimension(mm): 40 x 40
GPIO Pin Description
Pin#
Name
Linux gpio
Pin#
Name
Linux gpio
1
SYS_3.3V
2
VDD_5V
3
I2C0_SDA
4
VDD_5V
5
I2C0_SCL
6
GND
7
NC
8
NC
9
GND
10
NC
11
K1
0
12
NC
13
K2
2
14
GND
15
K3
3
16
NC
17
SYS_3.3V
18
NC
19
NC
20
GND
21
NC
22
NC
23
NC
24
NC
Only GND and 5V on the 12-Pin land are connected and the rest pins are open. For more details on the 12-Pin connector refer to NanoPi NEO/Air/NEO2's wiki site.
