Nanohat OLED 0.96 Inch 40*40mm Python Programming Driver Open Source Mono OLED I2C Display Support NanoPi NEO NEO2 Air
Product Description

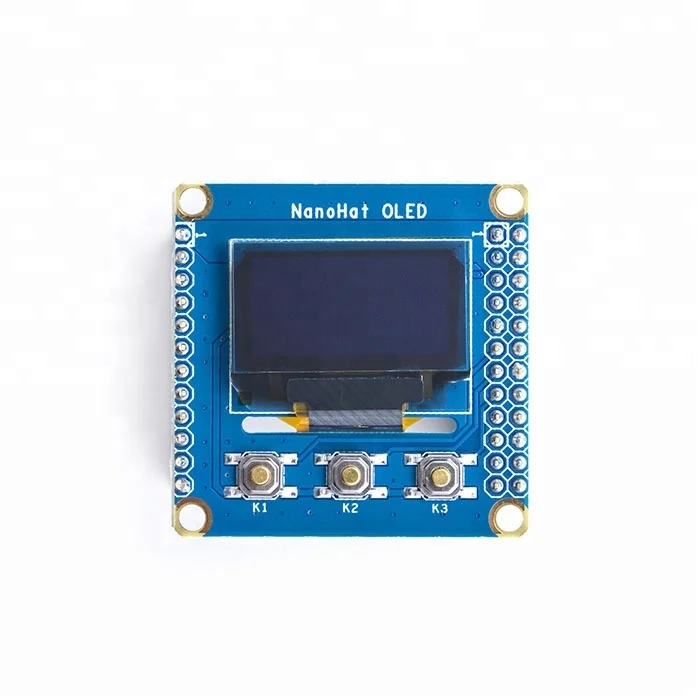

* NanoHat OLED is a small and cute monochrome OLED module with low power consumption. It is 0.96". Its resolution is 128 x 64. It communicates with a master device with I2C.
* The NanoHat OLED module has the same form factor as FriendlyElec's NanoPi NEO. It can be stacked on a NanoPi NEO.
* It has three onboard programmable user buttons。
* It has an onboard 3.5mm Aduio jack connector and a USB Type A connector.
* The NanoHat OLED module has the same form factor as FriendlyElec's NanoPi NEO. It can be stacked on a NanoPi NEO.
* It has three onboard programmable user buttons。
* It has an onboard 3.5mm Aduio jack connector and a USB Type A connector.
Hardware Spec
* LCD Size:0.96"
* Resolution: 128 x 64
* High Contrast, Low Power Consumption
* 3 x Onboard Button
* PCB Dimension(mm): 40 x 40
* Resolution: 128 x 64
* High Contrast, Low Power Consumption
* 3 x Onboard Button
* PCB Dimension(mm): 40 x 40
Specification
|
Pin#
|
Name
|
Linux gpio
|
Pin#
|
Name
|
Linux gpio
|
|
1
|
SYS_3.3V
|
2
|
VDD_5V
|
||
|
3
|
I2C0_SDA
|
4
|
VDD_5V
|
||
|
5
|
I2C0_SCL
|
6
|
GND
|
||
|
7
|
NC
|
8
|
NC
|
||
|
9
|
GND
|
10
|
NC
|
||
|
11
|
K1
|
0
|
12
|
NC
|
|
|
13
|
K2
|
2
|
14
|
GND
|
|
|
15
|
K3
|
3
|
16
|
NC
|
|
|
17
|
SYS_3.3V
|
18
|
NC
|
||
|
19
|
NC
|
20
|
GND
|
||
|
21
|
NC
|
22
|
NC
|
||
|
23
|
NC
|
24
|
NC
|
Only GND and 5V on the 12-Pin land are connected and the rest pins are open. For more details on the 12-Pin connector refer to NanoPi NEO/Air/NEO2's wiki site.
