Specification:
Working voltage: DC 12 (DC 12-25V recommends a small ripple power supply)
Working current: 14-34MA (related to the size of the output current)
MODBUS RTU instruction support 03 06 function code
3 analog input channels, 1 switch input channel: Vi1 is 0-5V voltage input, Vi2 is 0-10V voltage input, Ii is 0-20MA current input; DiP DiN is switch input port (NPN/PNP photoelectric Isolated input)
3 analog output channels, 1 switch output channel: Vo1 is 0.05-5V voltage output (<20MA), Vo2 is 0.1-10V voltage output (<20MA), Io is 0.5-20MA current output; DoP DoN is switch Output port (maximum drive current 500MA, can directly drive relays and solenoid valves)
The voltage resolution is 0.01V, and the measurement accuracy is 1%; the current resolution is 0.01MA, and the measurement accuracy is 1%; if the error is greater than 1%, it can be calibrated
In addition to the computer serial port super terminal input, MODBUS RTU commands can also be input by PLC
In MODBUS RTU command mode, it can support up to 247 devices to be used in parallel
Size: 60*72*18mm (circuit board); 63*87*42mm (with rail box)
Weight: 33g (circuit board); 85g (box with guide rail)
DIN rail box parameters:
Product model: UM72
Color: green
Width: suitable for circuit board width UM72 (72 cm)
Insulation grade: Flame retardant VO grade
Base plate length: suitable for 60 cm circuit boards
Installation method: DIM35 and C45 guide rail
Note:
1.Due to the light and screen difference, the item's color may be slightly different from the pictures.
2.Please allow 1-3cm differences due to manual measurement.
Package includes:

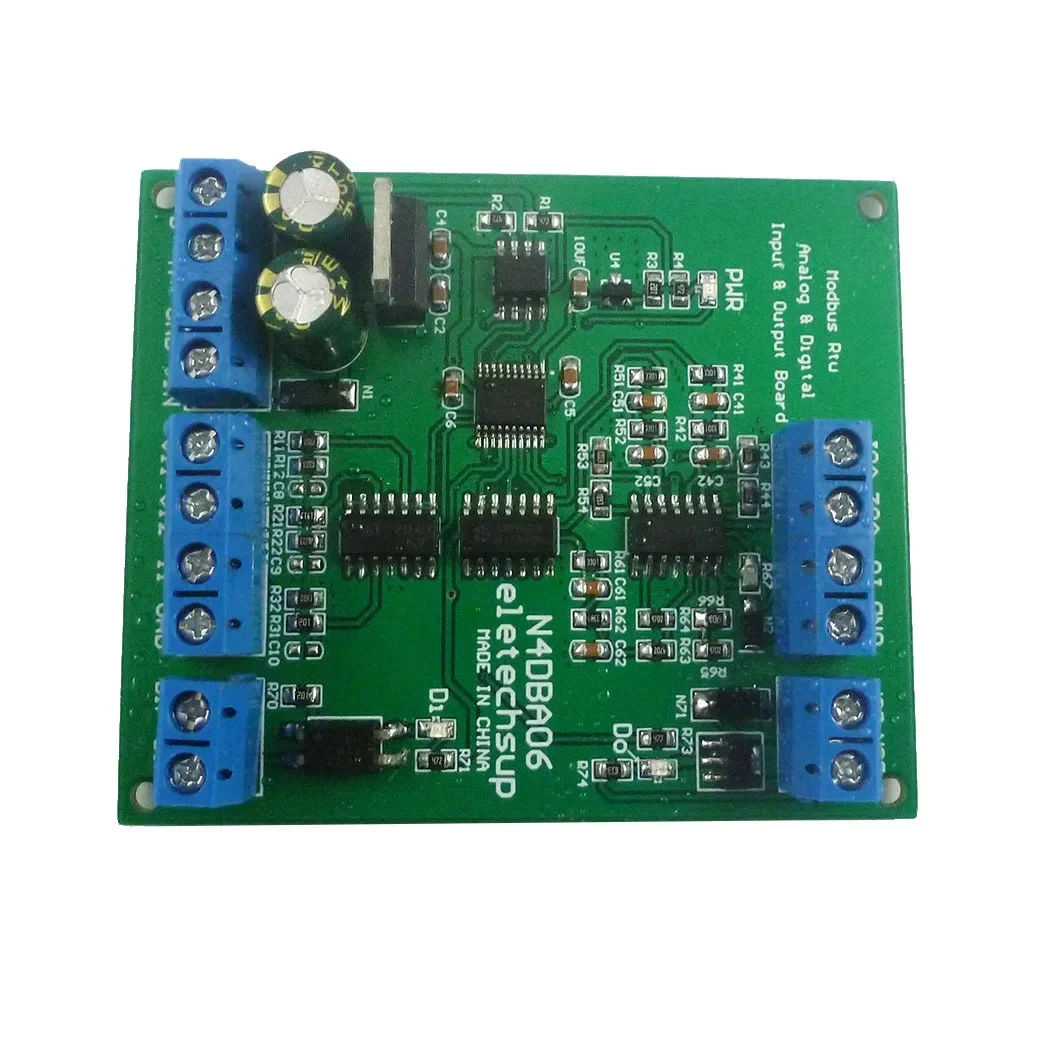

1x Analog Digital IO Module
