Description

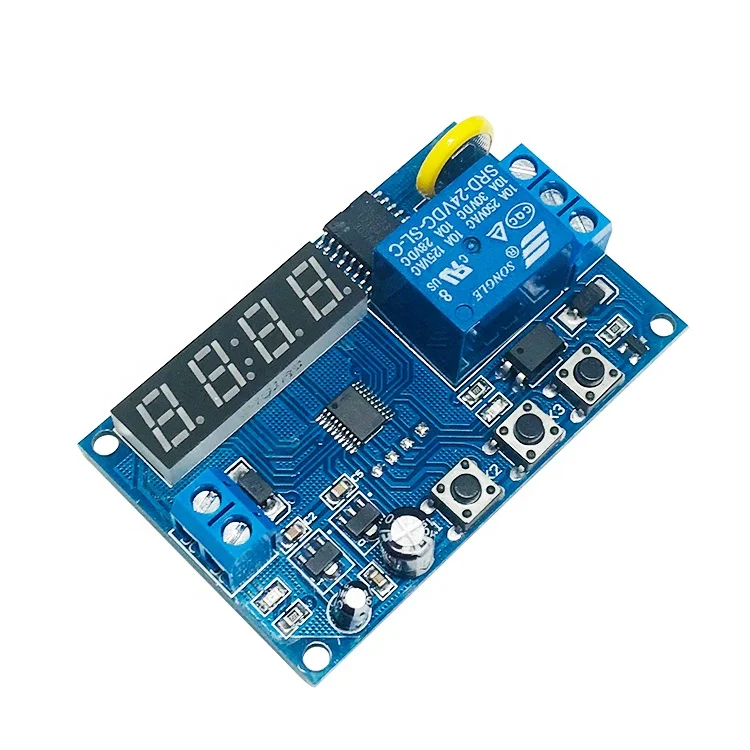

Multifunction Delay Time Module Switch Control Relay Cycle Digital Timer Control Relay DC12 24V Real Time Relay DS3231
Product Description
Product function introduction: (users can freely set the required function mode, there is a power-off memory function, there is no need to repeat the setting once) P-1: When to start work every day, when to stop working (E.g. Control the light bulb to turn on automatically at 17 o'clock every night and turn off automatically at 6:10) P-2: Set two 1-second switching (pulse) signals every day (E.g. control device button automatically clicks to turn on at 6 o'clock every day, and automatically turns off at 18 o'clock) P-3: What day and month will it start and what day will it stop? (E.g. The control equipment will be started on November 16th and will be closed on May 16th next year. P-4: Set the month in real time: days; hours: minutes
Product Paramenters
1
Real-time timing relay The clock chip uses a high-precision clock DS3231, stability and accuracy are not comparable to most ds1302 on the market.
2
Working voltage: DC DC 12V 24V
3
Output capability: can control devices within 30v5A DC or within 220v5A
4
Quiescent current: 20mA Working current: 50mA
5
Service life: 100,000 times; working temperature: -40~85'C; size: 64.2mm*42.4mm*18.5mm
6
Output optocoupler isolation, enhanced anti-jamming power consumption, industrial-grade circuit board, set functions and time are always remembered after power off. The relay output is a passive contact, without power output, and controls the function of a line.
