MT6737 Android 6.0 orange pie motherboard 1GB DDR3 4g lte modem 4g development board

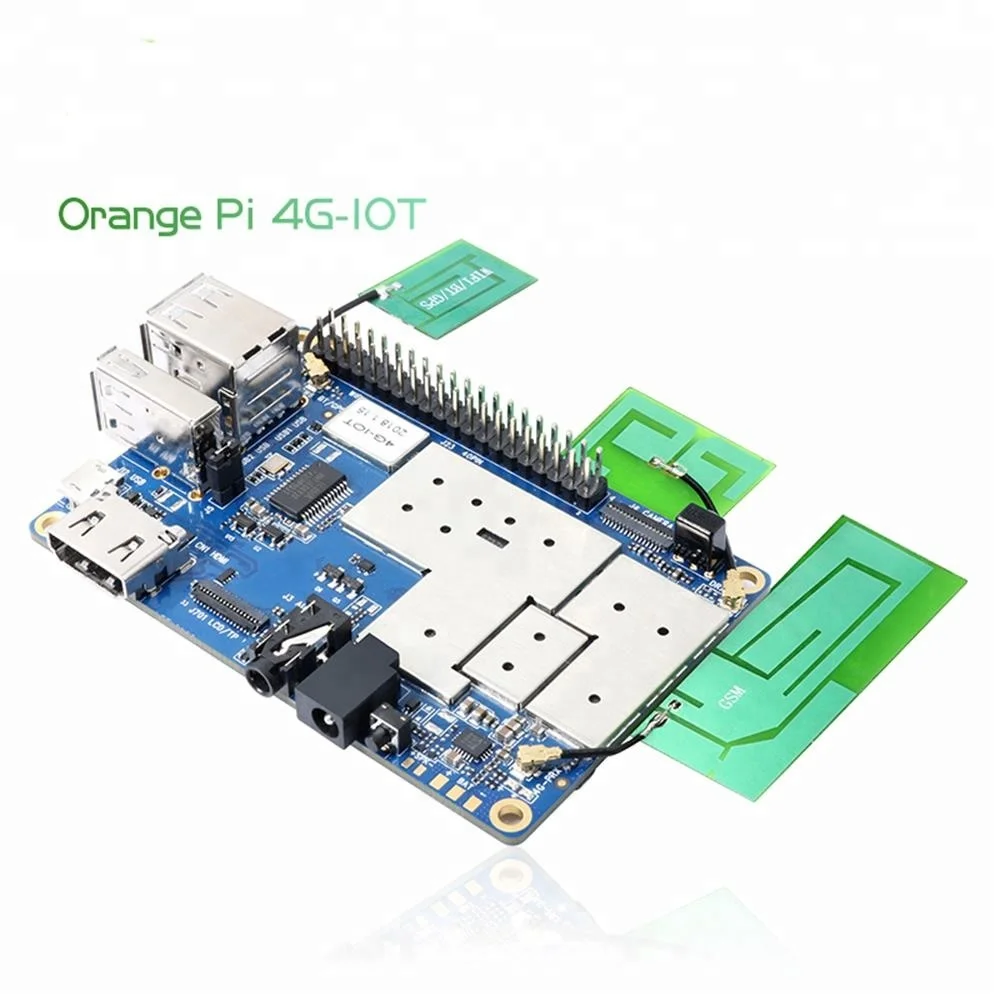

The orange pie Orange Pi 4G-IOT is an open source single board computer, a new generation arm development board, it can run Android6.0, Lunix and other operating systems. The orange pie Orange Pi 4G-IOT uses the MTK series MT6737 CPU and has 1GB of DDR3 memory.
Feature
Master chip:MT6737
CPU:Quad-Core ARM® Cortex-A53, Up to 1.25 GHz
GPU:ARM Mali-T720 MP1
RAM:1GB DDR3
Memory:8GB EMMC Flash
wireless network:WIFI / BT / FM / GPS 4-in-1
RF frequency
GSM:900/1800 (850/1900 optional)
WCDMA: B1/B8 (Optional for B2/B4/B5)
TD-CDMA
CDMA2000
FDD-LTE: B1/B3/B7/B20 (optional for B2/B4/B17)
TDD-LTE: B38/40/41B
Display screen:HD
Capacitive touch:stand by
camera:13M (25pin ZIF Connector)
Acceleration sensor:stand by
Infrared remote control:Support (Adapt iDroid Remote Control)
Fingerprint recognition:stand by
SIM card:Mini single SIM card
TF card:Hot-swappable
Audio frequency:Headphones : For audio input/output
Microphone: for audio input:USB
USB Host × 3: Support OTG:Micro USB × 1: Only for firmware burning
LED signal:
Power Indicator: Red Used to indicate power status
light:Power indicator: green Used to indicate the boot status
button:Power button
HDMI:stand by
reserved port:40pin expansion port: 1.8V SPI × 2 I2C × 3 UART × 2
Power supply seat:
DC12V - 2A two pin socket
DC5V - 2A Two Pin Socket Lamp
power supply:DC: 5V 2A
Battery: Through the pad connection
system:Android 6.0
Programming language support:
C, C++, Kotlin, Java, Shell, Pyhon, etc.
Appearance specifications
Product Size
55mm × 85mm
weight
43g
