Product Description

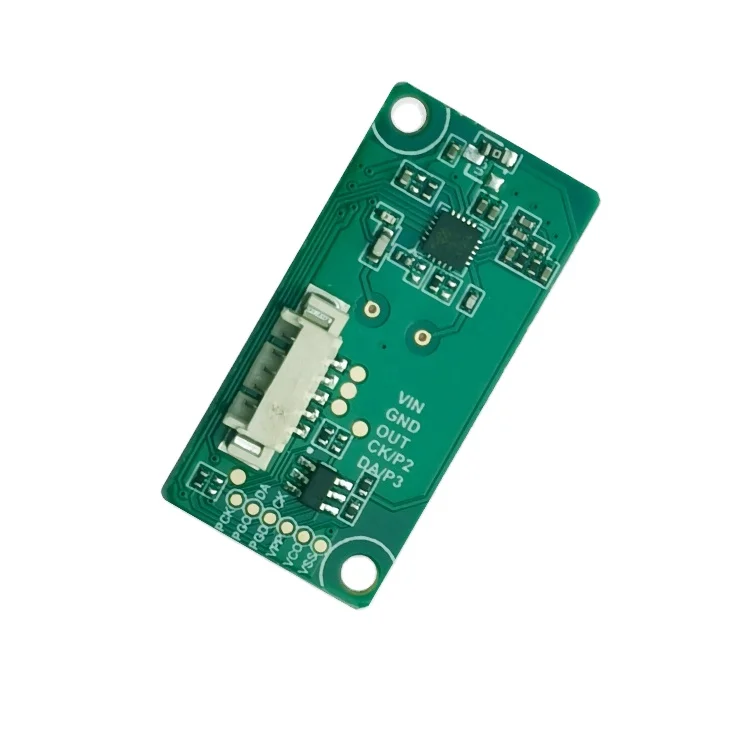

Product Type Name:MS58-3216J68U4
Lowest Powered Radar Sensor-40uA&68uA
Suitable for Smart Lock/Security Industry and so on
MCU Or IIC Version
Module Parameter
|
Type
|
Parameter
|
Value
|
|
RF Parameter
|
Certification Standards
|
FCC/CE/SRRC/RoHS
|
|
Frequency Range
|
5.725GHz-5.875GHz
|
|
|
Transmit Power
|
-4dBm
|
|
|
Antenna
|
Built-in;Flat Antenna
|
|
|
Hardware Parameter
|
Data Interface
|
GPIO/IIC
|
|
Operating Voltage
|
2.7V-4.8V
|
|
|
Operating Current
|
40uA(Typical Value)
|
|
|
Operating Temperature
|
-40℃- 85℃
|
|
|
Storage Temperature
|
-40℃- 150℃
|
|
|
Humidity
|
<85%
|
|
|
Dimension
|
32mm x 16mm
|
|
|
Default Parameter
|
Power-On Self-Test Time
|
2s
|
|
Sensing Output Level
|
3.3V
|
|
|
Silent Output Level
|
0V
|
|
|
Sensing Output Time
|
2s
|
|
|
Inducting Distance
|
About 6m
|
|
|
Customizing the Largest Sensing Distance
|
10m
|
|
|
Max. Induction Radius with Hanging Height 3m
|
5m
|
|
|
Setting Parameter Method
|
I2C or IO
|
Features:
a. Working Frequency Band:5.8G ISM Frequency Band;
b. Microwave sensor based on Doppler effect;
c. Sensing distance and delay time can be adjusted flexibly according to different application;
d. Using mature CMOS technology to achieve fully integration of ultra-cost-effective;
e. The chip has a built-in LDO that supports wide-voltage power supply;
f. SoC signal processor, which can directly output sensing control signals from a single chip;
g. Ultra low-power consumption, the overall current is less than 70 uA, and can be powered by batteries
h. Support standard IIC interface, can be interconnected with other main control or sensors;
i. Meet certification standards such as FCC, RED, CE, and ETL;
b. Microwave sensor based on Doppler effect;
c. Sensing distance and delay time can be adjusted flexibly according to different application;
d. Using mature CMOS technology to achieve fully integration of ultra-cost-effective;
e. The chip has a built-in LDO that supports wide-voltage power supply;
f. SoC signal processor, which can directly output sensing control signals from a single chip;
g. Ultra low-power consumption, the overall current is less than 70 uA, and can be powered by batteries
h. Support standard IIC interface, can be interconnected with other main control or sensors;
i. Meet certification standards such as FCC, RED, CE, and ETL;
Product Packaging
Package Customization:Blister Box Or As Customers' Requirement
