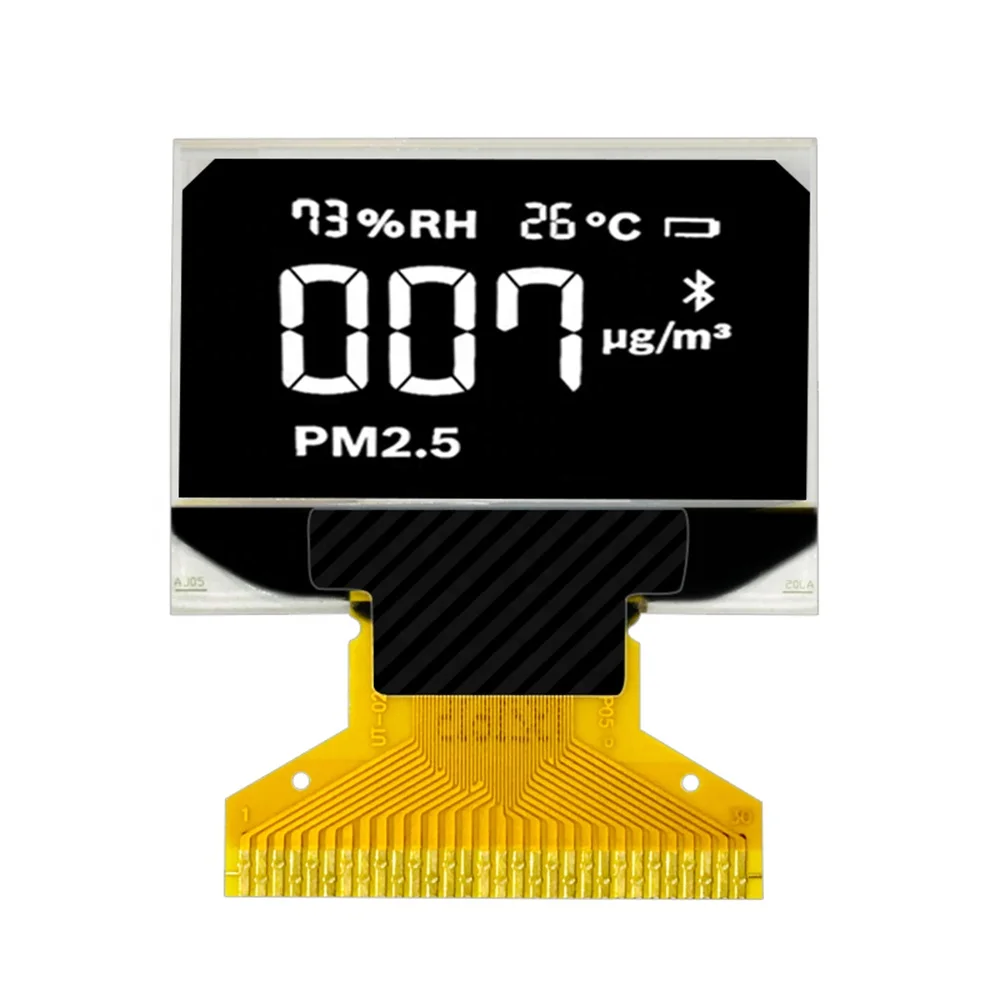

Mono SSD1306 0.96 Inch OLED Welding 30PIN Display 128 * 64 I2C SPI Monochrome OLED Display LCD COG Display SSD1306

OLED Welding 30PIN Display
$2.46
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
Mono SSD1306 0.96 Inch OLED Welding 30PIN Display 128 * 64 I2C SPI Monochrome OLED Display LCD COG Display SSD1306
Product Description
Diagonal Screen Size
0.96"
Color
Mono
Module Construction
COG
Product
UG-2864KSWEG01
Driving Method
Passive Matrix
Number of Pixels
128×64
Active Area(mm)
21.74×10.86
Panel Size(mm)
26.70×19.26×1.45
Pixel pitch(mm)
0.17×0.17
Pixel Size(mm)
0.154×0.154
Weight
1.54
Duty
1/64
Pins
30
Color
Monochrome (White)
Porwer Supply Voltage
2.6~3.5V
Frame Rate
100 Frames/Sec
Operating Temperature
-30~70℃
Storage Temperature
-40~80℃
Drive IC
SSD1306
Brightness
100 (Min) cd/m2
120(Typ) cd/m2
Power Consumption
Driving Voltage
9V
Interface
Parallel /I2C/ 4-wire SPI
Folding Ability
Folding Type
Assembly
Soldering
OLED display self-luminous, no backlight, regardless of day and night show bright and sharp! The effect is far more than liquid crystal display.
Full screen light display machine power consumption of about 22.75mA;
Ordinary Chinese characters full screen display, power consumption of about 5mA;
All black does not show not sleep, power consumption 1.2mA;
Dormancy of about a few hundred uA
Details Images
