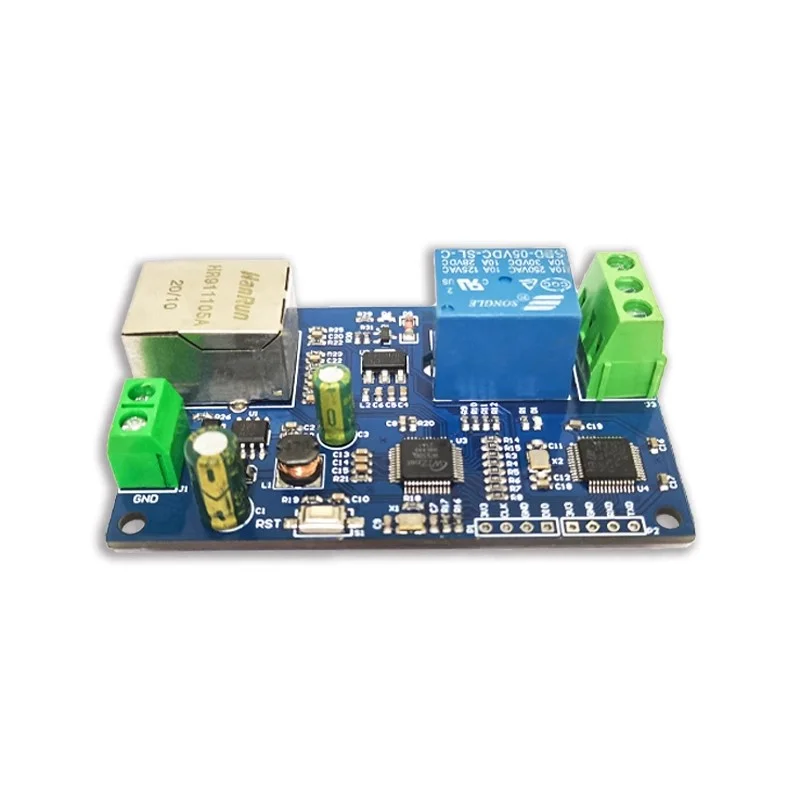

Modbus RTU Relay 1 Channel Network Relay Module Single way Ethernet LAN Controller Power Supply Accessories

Features:

The single-way Modbus network relay module is equipped with a mature and stable 32-bit MCU and W5500 full hardware TCP/IP protocol stack network chip.

MCU debugging interface is reserved to support secondary development.

The standard MODBUSRTU format communication protocol can be used to control one relay output in a local area network, which can be used for power control under wired network.

With input anti-reverse connection protection.

With diode diarrhea protection, short response time;

Product parameters:

1. On-board mature and stable 32bit MCU STM32F103C6T6 chip;

2. On-board W5500 full hardware TCP/IP protocol stack Ethernet chip, supporting 10/100M bps rate;

3. Communication protocol: support standard Modbus RTU protocol;

4. Device as TCP Server side, support IP address DHCP function, port number 5000;

5. IP address of module can be viewed through serial port, UART communication baud rate: 115200;

6. Output signal: relay switch signal, support manual, flash closed, flash off mode, flash closed/flash off delay base is 0.1S, the maximum set flash closed/flash off time is 0xFFFF*0.1S=6553.5S;

7. Device address: range 1-255, default 255, support power down save;

8. Relay status, device address can be read using software/instructions;

9. 1 on-board 5V, 10A/250V AC 10A/30V DC relay, can be continuously closed 100,000 times, with diode lagging protection, short response time;

10. On-board power and relay switch indicator;

11. On-board MCU reset button;

12. reserved UART serial port and SWD program burning port, support secondary development;

13. Power supply voltage: DC7-28V, support 5.08mm terminal power supply, with input protection against reverse connection.

Interface introduction:

1. Main control MCU: STM32F103C6T6;

2. Network chip: W5500 full hardware TCP/IP protocol stack Ethernet chip;

3. Network interface: 10M/100Mbps HR911105A network transformer:

4. 5.08mm terminal power supply port: DC7-28V power input, where GND is negative;

5. MCU reset button: short press to reset. 6;

6. MCU SWD debug interface: for secondary development burn-in;

7. MCU UART debug interface: GND, RXD, TXD: TTL level UART

Communication interface, GND, RXD, TXD are connected to the external console GND, TXD, RXD, support the connection of 3.3V/5V external TTL serial port, default for serial view device IP address and port number, baud rate 115200;

8.1 way relay switch signal output:

NC: Normally closed, shorted to COM before the relay is closed, suspended after closed;

COM: Common terminal;

NO:Normally open terminal, the relay is overhung before suction, and shorted to COM after suction.

Package List:

Modbus network relay module x 1
