Product Description

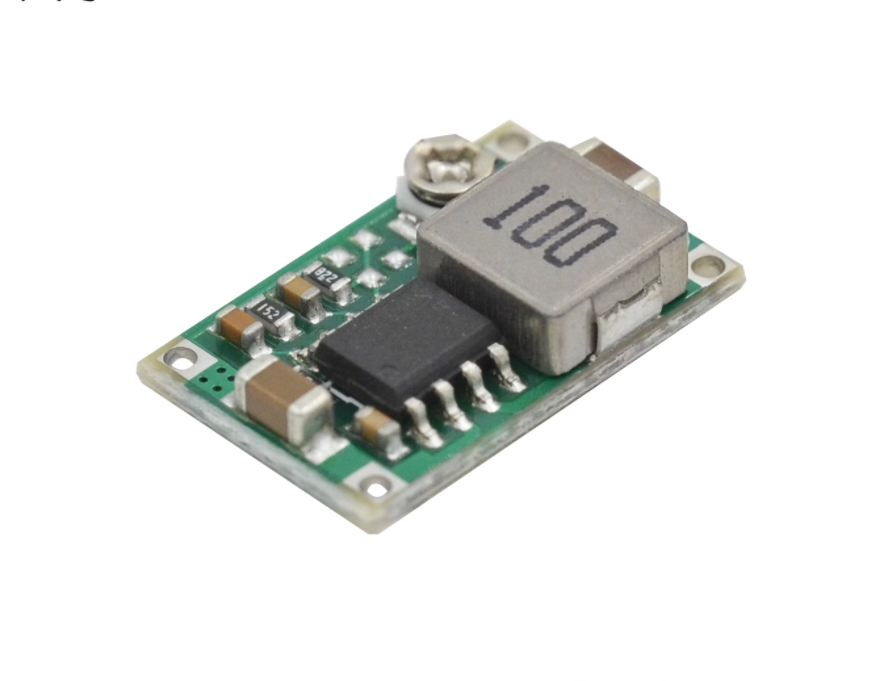

Mini360 DC-DC HM Buck Converter Step Down Power Supply Module 4.75-23V to 1-17V 340KHz Mini-360 Ultra-small+ 17x11x3.8mm
Specifications:
Areas of application:
Model aircraft dedicated DC - DC step-down module (2 s ~ 5 s polymer li-ion battery), DIY mobile power supply, car power supply, communication power supply equipment, a variety of occasions of volume and weight have strict requirements.
Technical parameters:
Model name
Mini - 360 (super small size DC - DC synchronous rectification buck module)
Nature of the module:
The isolation step-down
Rectifying way:
The synchronous rectifier
The input voltage:
4.75 V - 23 V
The output voltage:
1.0 V - 17 V
The output current:
Peak 3 A and 1.8 A long time
Conversion efficiency:
96% (highest)
Switching frequency:
340 KHZ
The output ripple:
30 mv (light)
Load regulation:
Plus or minus 0.5%
Voltage regulation:
Plus or minus 2.5%
Working temperature:
- 40 to + 85
The peripheral size:
17 * 11 * 3.8 (length * width * height) (mm)
Features: use a body shaping power inductor and synchronous rectifier control chip, a smaller, more efficient.
